Understanding Microscope Graticules and Their Role in Measurement Accuracy
In microscopy, observing the intricate details of a specimen is often only the first step. For researchers, quality control technicians, and medical professionals, the ability to precisely measure these microscopic structures is equally critical. Whether you are determining the cell wall thickness of a botanical sample or measuring micro-cracks in an industrial component, precision is paramount.
At GT Vision Microscopes, we understand that a high-quality microscope is only as accurate as its measurement tools. This is where microscope graticules play an indispensable role.
What is a Microscope Graticule?

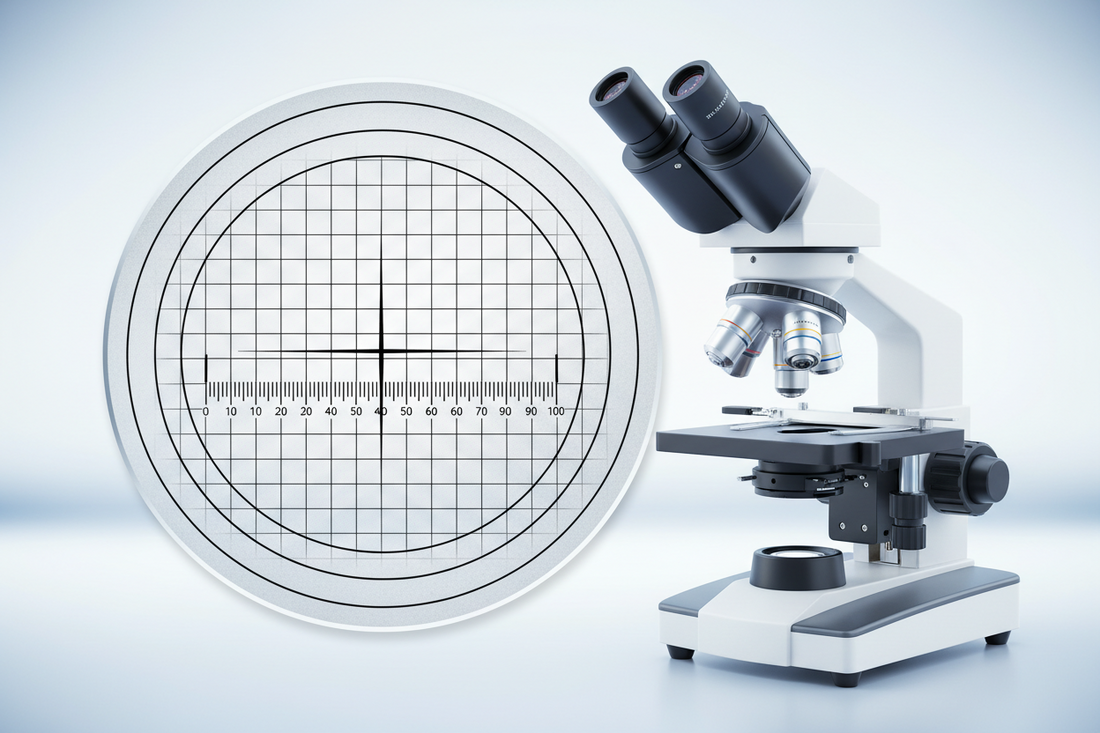

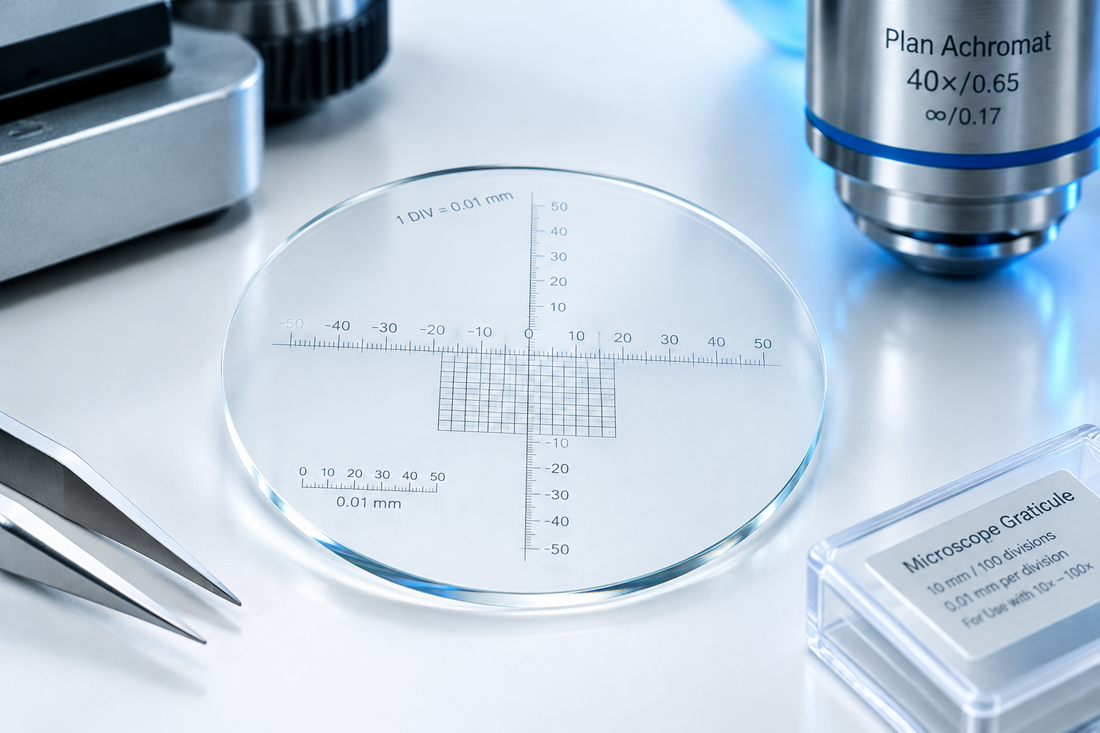

A microscope graticule, often referred to as a reticle, is a small, transparent glass disc marked with a precise scale, grid, or crosshair. This disc is inserted directly into the eyepiece (ocular lens) of the microscope. When you look through the eyepiece, the graticule scale is superimposed over the image of your specimen, allowing you to gauge dimensions directly.
Because different applications require different types of data, we provide graticules in a variety of configurations:
• Linear Scale Graticules: The most common variety, featuring a simple ruler scale divided into equal increments.
• Grid Graticules: Ideal for counting particles, analyzing grain sizes, or estimating areas within a sample.
• Crosshair Graticules: Used primarily for alignment, centering, and point-to-point reference marking.
The Core Problem: Why Calibration is Vital
A common misconception is that the divisions on an eyepiece graticule represent absolute physical measurements, such as micrometers or millimeters. This is not the case.
The graticule itself sits within the eyepiece, meaning the scale remains visually unchanged regardless of which objective lens you select. However, changing the objective lens alters the magnification of the specimen beneath it. If you switch from a 4x objective to a 40x objective, the specimen appears ten times larger, but the lines on your graticule stay exactly the same distance apart.
Therefore, the value of each division on the graticule changes with every objective lens change. To achieve true measurement accuracy, you must calibrate the eyepiece graticule using a stage micrometer.
The Step-by-Step Calibration Process
A stage micrometer is a slide with a known, highly accurate scale etched onto its surface, typically broken down into increments of 0.1 mm and 0.01 mm. By comparing the fixed scale of the stage micrometer against the arbitrary scale of your eyepiece graticule, you can determine the exact value of each graticule division for that specific magnification.
Here is how our technical team recommends performing this calibration:
1. Align the Scales
Place the stage micrometer on the microscope stage and bring the scale into sharp focus. Rotate the eyepiece until the graticule scale runs perfectly parallel to the stage micrometer scale.
2. Find the Zero Points
Line up the zero mark of the eyepiece graticule with the zero mark of the stage micrometer.
3. Locate a Second Point of Coincidence
Look along the scales until you find another point where a line on the eyepiece graticule perfectly aligns with a line on the stage micrometer. Count the number of divisions on both scales between these two points.
4. Calculate the Calibration Factor
Use a simple calculation to find the value of one eyepiece division.
Value of 1 Eyepiece Division=Number of Eyepiece Graticule DivisionsDistance on Stage Micrometer (in μm)
For example, if 10 divisions on your eyepiece graticule align exactly with 0.1 mm (100 micrometers) on the stage micrometer, each eyepiece division equals 10 micrometers at that specific magnification.
5. Repeat for Every Objective
You must repeat this process for every objective lens on your nosepiece and record the calibration factors for future reference.
Ensuring Measurement Accuracy in Your Work
Even with proper calibration, human error and equipment variance can impact your final data. To guarantee the highest standard of accuracy in your laboratory, consider the following best practices:
• Calibrate at Every Microscope Modification: If you change the eyepiece, add a camera adapter, or alter the tube length of your microscope, you must recalibrate.
• Avoid Interpolation Errors: When measuring a specimen, try to align the edges of the structure precisely with the main division lines rather than guessing fractions of a division.
• Maintain Clean Optics: Dust or smudges on either the graticule or the stage micrometer can distort the etched lines, leading to visual alignment errors. Clean your optics regularly with approved lint-free wipes and lens cleaning solution.
Partner with GT Vision Microscopes
Achieving flawless measurement accuracy requires a combination of premium optics, precise graticules, and reliable calibration standards. Our team at GT Vision Microscopes is dedicated to supplying standard-compliant graticules and stage micrometers tailored to your specific application needs.
If you require guidance on selecting the right measurement accessories for your existing microscope setup, or if you need assistance with calibration protocols, please reach out to our technical support team today.
