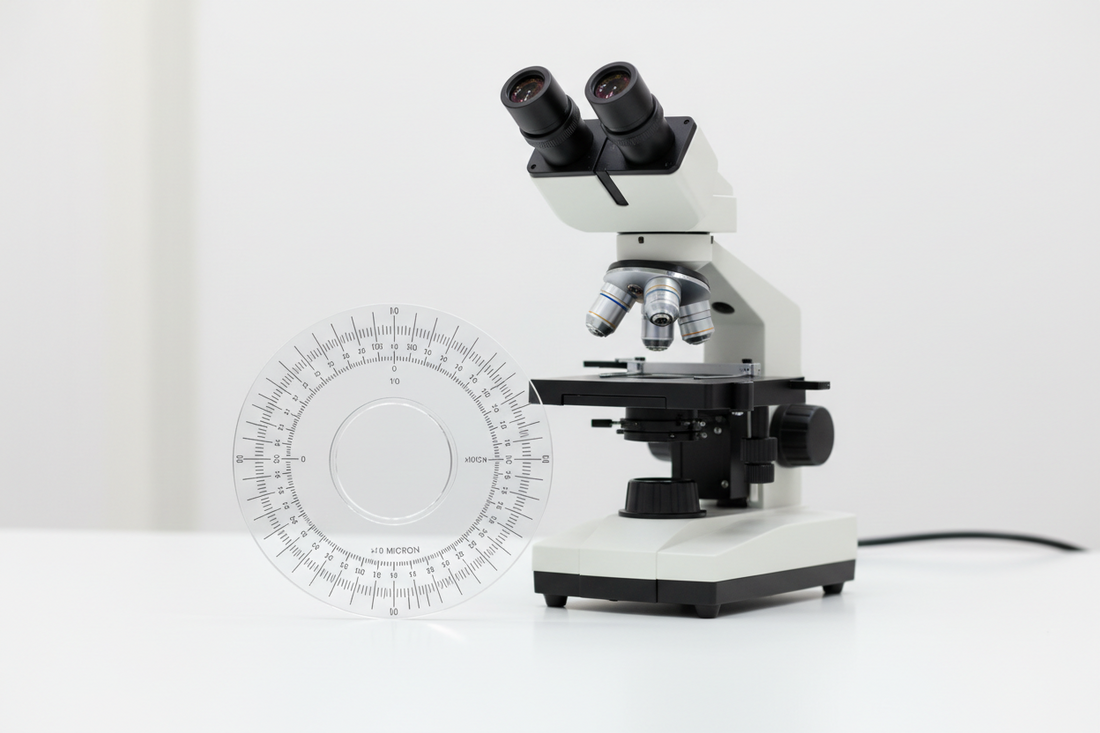

Understanding Microscope Graticules and Their Role in Precision Measurement
Microscopes have transformed the way scientists, researchers, technicians, and educators observe the microscopic world. While magnification is often the most recognized feature of a microscope, accurate measurement is equally important in many applications. Whether examining biological samples, inspecting industrial materials, or conducting laboratory analysis, precision matters. This is where microscope graticules become essential tools.
At GT Vision Micropscopes, we understand that reliable measurement capabilities are critical for professionals who depend on accuracy every day. Microscope graticules help users move beyond simple observation and into detailed quantitative analysis. These small yet highly valuable components allow users to measure dimensions, compare structures, and maintain consistency across scientific and industrial processes.
Understanding how microscope graticules work and why they are important can help users choose the right equipment and achieve more dependable results in their work.
What Is a Microscope Graticule?
A microscope graticule is a precisely marked scale inserted into the eyepiece of a microscope. It is used as a reference for measuring objects viewed under magnification. The graticule itself typically appears as a series of lines, divisions, grids, or scales superimposed over the specimen image.
Because the scale inside the eyepiece does not correspond directly to real world measurements, calibration is necessary before accurate measurements can be made. Once calibrated, the graticule allows users to determine the size of microscopic objects with impressive precision.
Microscope graticules are commonly manufactured from glass and engraved with highly accurate markings. Different types of graticules are designed for different applications, making them versatile tools across numerous industries and scientific disciplines.
Why Precision Measurement Matters
Precision measurement plays a major role in scientific accuracy, quality control, medical diagnostics, and research consistency. In many situations, visual inspection alone is not enough. Researchers and technicians need exact measurements to support findings, maintain standards, and document results.
For example, in biological research, scientists may need to measure cell structures, microorganisms, or tissue samples. In manufacturing environments, engineers often inspect small components to verify dimensional tolerances. In material science, researchers may analyze particle sizes or surface features. Each of these tasks depends on reliable measurement systems.
Microscope graticules make these processes possible by providing measurable reference points directly within the field of view.
How Microscope Graticules Work
A microscope graticule works by overlaying a measuring scale onto the image being viewed through the microscope. However, because microscope magnification changes the apparent size of the specimen, the scale must first be calibrated using a stage micrometer.
A stage micrometer is a calibration slide containing a precisely known scale. By comparing the eyepiece graticule scale to the stage micrometer, users determine the actual measurement value represented by each division on the graticule.
Once calibrated, users can measure specimens accurately at that specific magnification level. If the magnification changes, recalibration is usually required because the apparent scale changes as well.
This calibration process ensures that measurements remain consistent and scientifically valid.
Common Types of Microscope Graticules
Different microscope applications require different measurement styles. As a result, microscope graticules are available in several designs.
Linear graticules are among the most common. These contain evenly spaced lines used for measuring length, width, or diameter. They are widely used in biology, industrial inspection, and laboratory analysis.
Grid graticules feature square or rectangular patterns that help count particles, analyze distribution, or estimate concentrations. These are often used in microbiology and environmental studies.
Crosshair graticules provide centered reference points useful for alignment, positioning, and targeting applications. They are frequently used in precision engineering and inspection systems.
Circular graticules are designed for measurements involving round objects or field diameter calculations. These are common in specialized microscopy applications.
Reticle graticules can also include custom patterns designed for highly specific scientific or industrial tasks.
Choosing the correct graticule depends on the intended application, microscope configuration, and required measurement accuracy.
Applications in Biological Research
Biological sciences rely heavily on microscope measurement tools. Researchers routinely examine cells, bacteria, tissue structures, and microorganisms that cannot be evaluated accurately without precise scaling systems.
Microscope graticules allow researchers to measure cell size, compare organism growth, and monitor changes over time. In microbiology laboratories, accurate dimensions can help identify organisms and evaluate sample characteristics.
Histology laboratories also depend on graticules for tissue analysis. Pathologists and researchers use measurement tools to examine cellular abnormalities, tissue thickness, and structural details.
Educational institutions benefit as well. Students learning microscopy gain a deeper understanding of scale and proportion when using calibrated graticules during laboratory exercises.
Industrial and Manufacturing Uses
Microscope graticules are equally valuable in industrial settings where quality control and dimensional inspection are critical.
Manufacturers often inspect tiny components that require extremely tight tolerances. Electronic circuits, machined parts, fibers, and coatings may all need precise microscopic measurement.
By using calibrated graticules, technicians can verify dimensions, identify defects, and ensure product consistency. This helps reduce manufacturing errors and improve quality assurance processes.
In metallurgy and material science, graticules support grain size analysis, crack measurement, and surface evaluation. These measurements contribute to product reliability and safety.
At GT Vision Micropscopes, we recognize that industrial professionals depend on durable and dependable optical tools to maintain operational standards.
Importance in Medical and Clinical Laboratories
Medical laboratories also benefit significantly from microscope graticules. Accurate measurement can play an important role in diagnostic procedures and clinical evaluations.
Laboratory professionals may use graticules when analyzing blood cells, parasites, bacteria, or tissue samples. Certain diagnostic procedures require precise dimensional analysis to support medical interpretation.
For example, identifying abnormal cell sizes or measuring microorganism structures can contribute to more accurate diagnoses. Calibration accuracy becomes especially important in regulated clinical environments where precision directly affects reporting reliability.
Microscope graticules help standardize measurements across laboratory workflows, supporting consistency and reproducibility.
Factors That Affect Measurement Accuracy
Although microscope graticules provide valuable precision, several factors influence measurement reliability.
Calibration accuracy is one of the most important considerations. Improper calibration can lead to incorrect measurements and unreliable data. Regular verification against a stage micrometer helps maintain confidence in results.
Magnification changes also affect accuracy. Since each magnification level alters the apparent scale, recalibration is necessary whenever objective lenses are changed.
Optical quality matters as well. High quality lenses and properly aligned optical systems improve image clarity and reduce distortion.
User technique can also impact results. Consistent focusing, correct specimen positioning, and careful observation all contribute to more dependable measurements.
Environmental factors such as vibration, lighting conditions, and contamination may further influence measurement consistency in sensitive applications.
Digital Microscopy and Modern Measurement Systems
Modern microscopy technology has introduced digital measurement systems that complement traditional graticules. Digital imaging software can automatically calculate dimensions and store measurement data electronically.
Despite these advancements, traditional microscope graticules remain highly valuable because they provide immediate visual reference directly through the eyepiece. Many professionals continue to rely on them for rapid inspection and dependable manual measurement.
In some systems, digital overlays combine with optical graticules to create enhanced hybrid measurement solutions. These technologies improve workflow efficiency while maintaining measurement precision.
As microscopy technology continues evolving, graticules remain foundational components within both traditional and modern optical systems.
Choosing the Right Microscope Graticule
Selecting the appropriate graticule requires consideration of several factors.
Users should first determine the type of measurements they need to perform. Linear measurements, counting applications, alignment tasks, and particle analysis may each require different graticule designs.
Compatibility with the microscope eyepiece is also essential. Graticules must match the optical specifications and dimensions of the microscope system.
Material quality and engraving precision should not be overlooked. High quality etched glass graticules provide better durability and long term accuracy.
Users should also consider whether their applications require specialized calibration standards or custom reticle patterns.
At GT Vision Micropscopes, we help customers identify measurement solutions that align with their technical requirements and microscopy applications.
Maintaining Microscope Graticules
Proper care and maintenance help preserve measurement accuracy and optical clarity.
Graticules should be handled carefully to avoid scratches or contamination. Dust, fingerprints, and debris can interfere with visibility and compromise precision.
Cleaning should be performed using appropriate optical cleaning materials and techniques. Harsh chemicals or abrasive materials should never be used on optical components.
Regular calibration checks are also recommended, particularly in professional laboratory and industrial environments where accuracy standards must be maintained consistently.
Proper storage and handling extend the lifespan of microscope accessories and help ensure reliable performance over time.
The Future of Precision Measurement in Microscopy
Microscopy continues to advance through improvements in optics, imaging technology, automation, and software integration. As scientific and industrial requirements become more demanding, the need for accurate measurement tools remains strong.
Microscope graticules continue to play a central role because they offer simplicity, reliability, and immediate visual measurement capabilities. Even as digital systems become more sophisticated, calibrated optical scales remain trusted tools for professionals across many disciplines.
The future will likely bring even greater integration between digital analysis systems and traditional optical measurement methods. However, the core principle behind microscope graticules will remain unchanged: enabling accurate observation and dependable precision measurement.
At GT Vision Micropscopes, we remain committed to supporting professionals, educators, and researchers with microscopy solutions designed for accuracy, clarity, and long term performance. Understanding microscope graticules and their role in precision measurement helps users unlock the full potential of their microscopy systems and achieve more reliable analytical results.
