Dino-Lite N3C-R Passive Ring Light Cap

SKU: DINN3C-R
£79.11
£79.11
Further Information
£79.11
£79.11

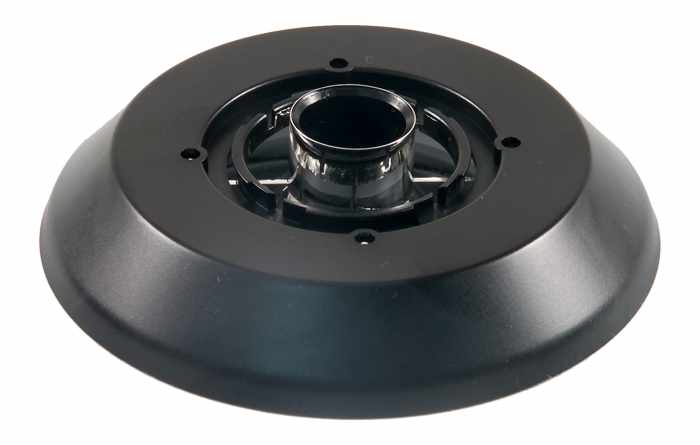

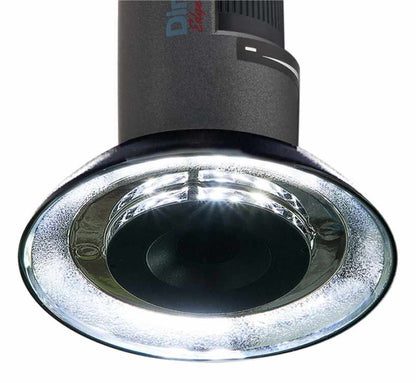

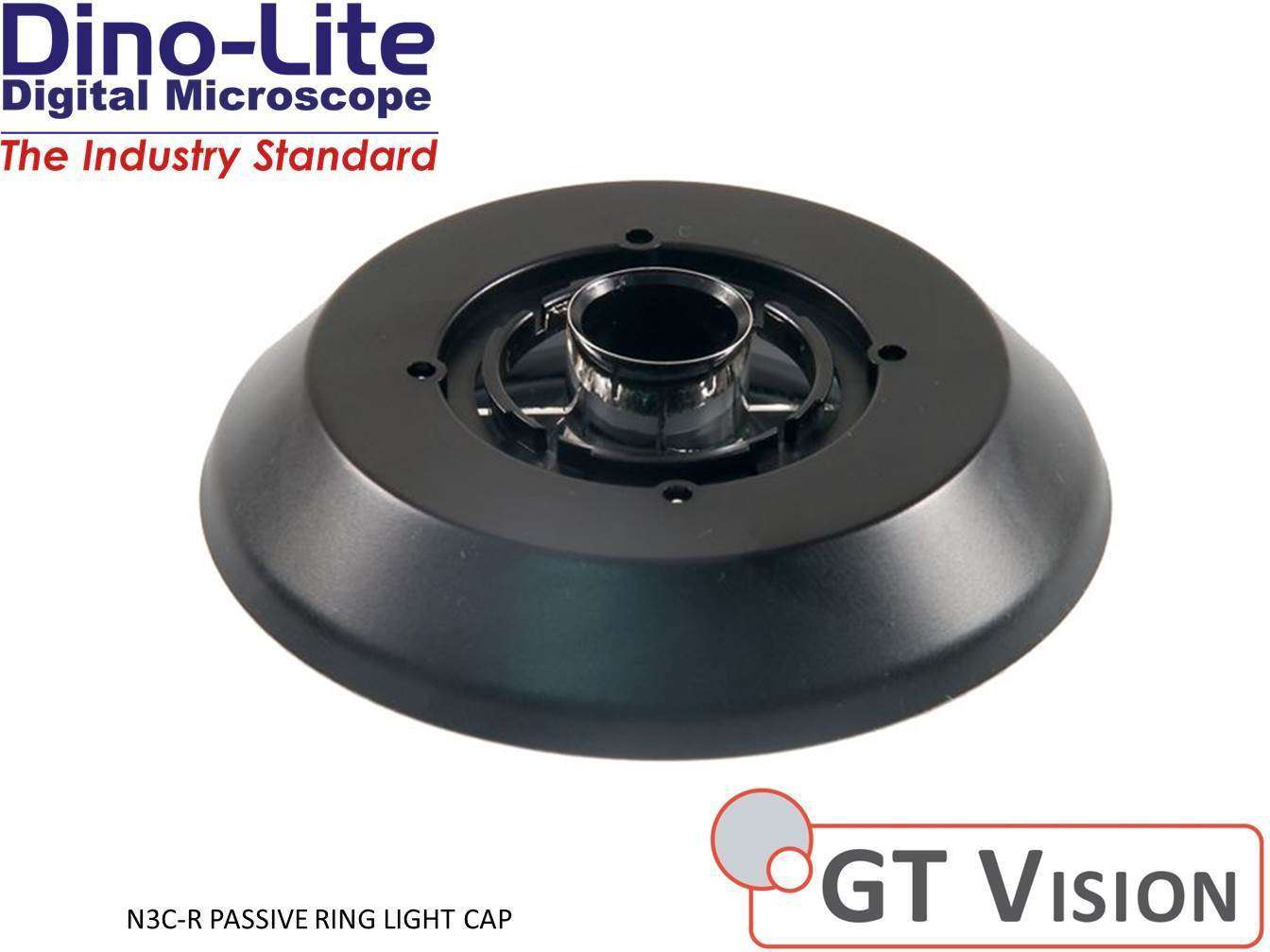

Dino-Lite N3C-R Passive Ring Light

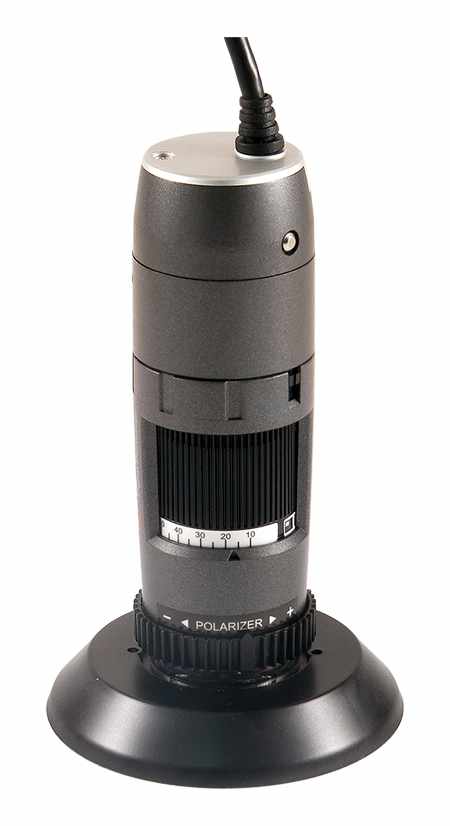

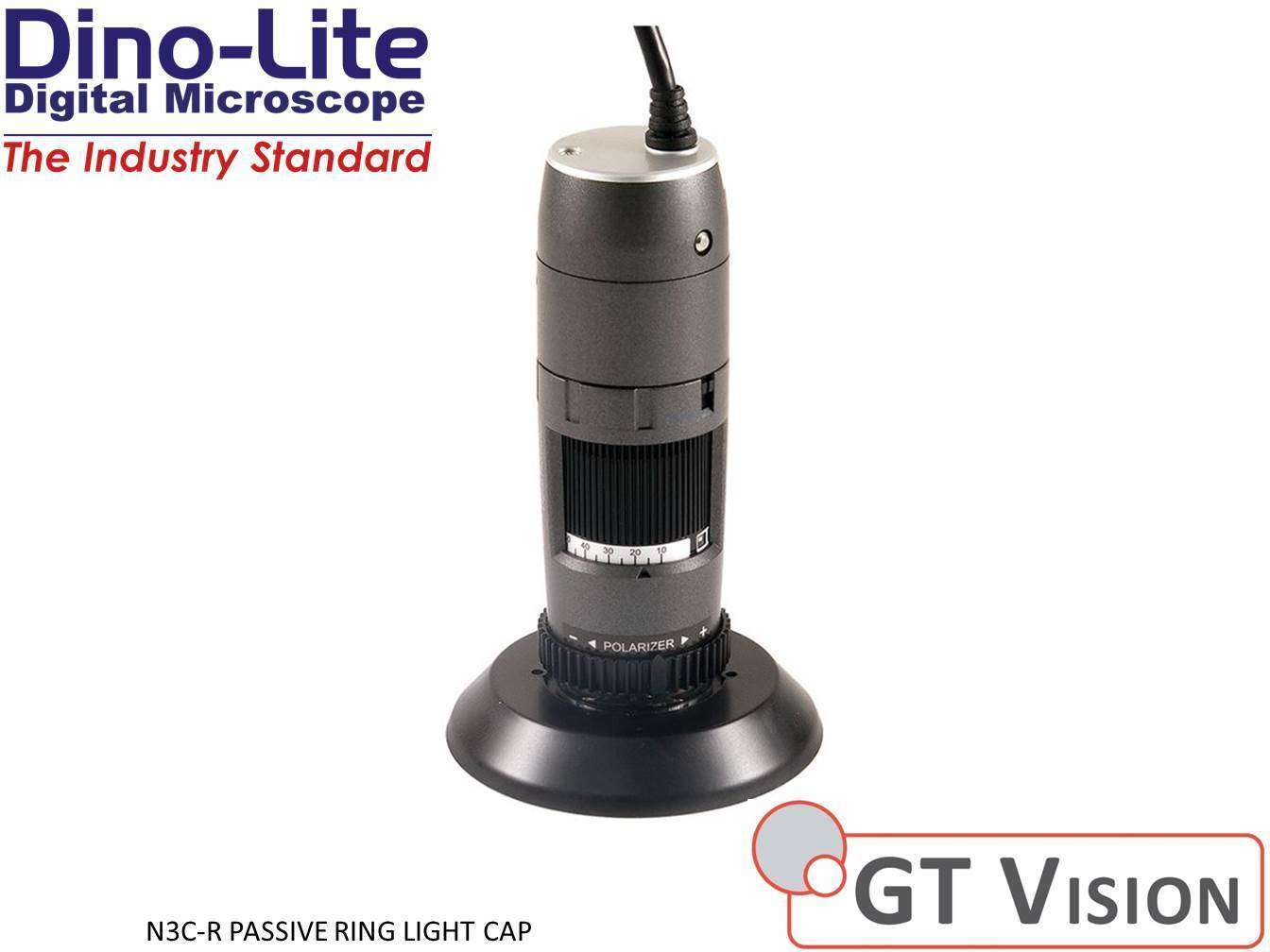

The N3C-R is a passive ring light solution that helps to reveal more details by generating shadow-less illumination. It is designed for use with the Dino-Lite AM4115/4515/4815 USB models.

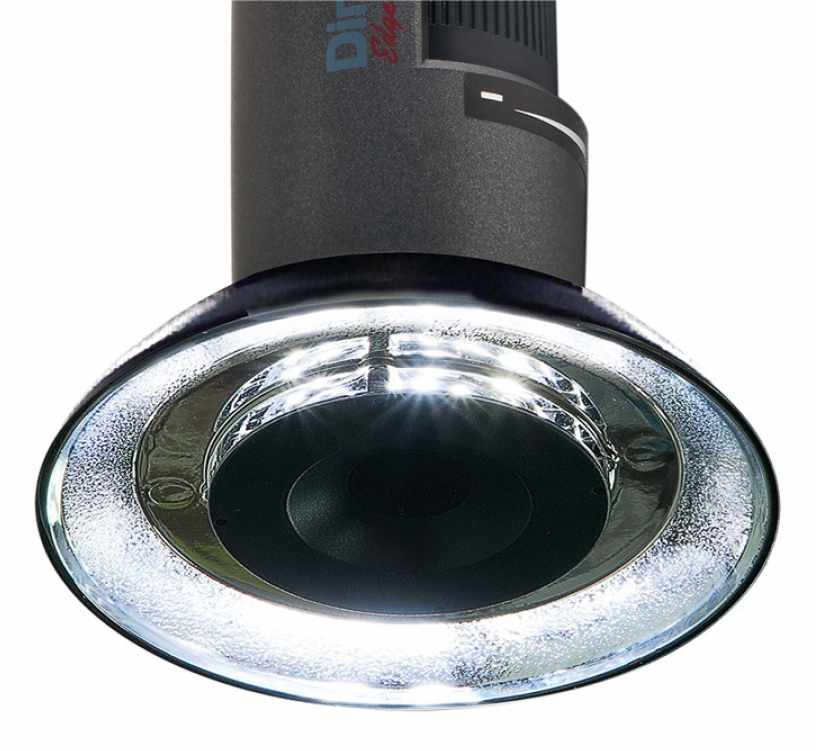

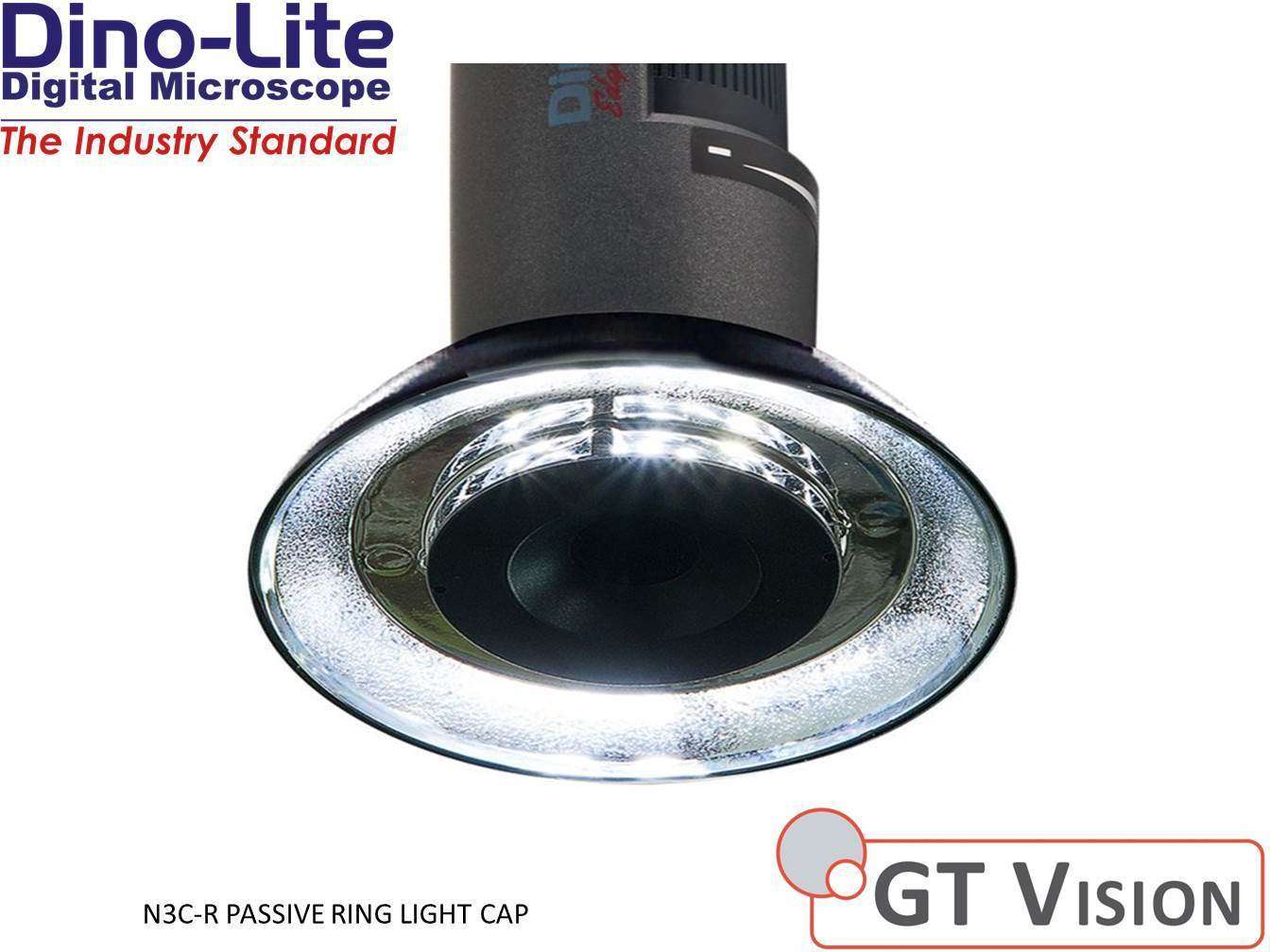

The N3C-R cap, measuring 6.5 cm (2.5 inch) in diameter is a simple yet powerful solution to provide ring illumination for a digital microscope. The N3C-R utilizes the Dino-Lite's built-in LEDs by redirecting it to form a focused, diffused, and uniform illumination of the object. On polarized models, such as the AM4115ZT, AM4515ZT and AM4815ZT, the polarizer can still be used to reduce the unwanted glare or reflection. It is not necessary to mount or power an external ring light, so no additional heat is produced and also no noticeable weight is added. This makes the N3C-R a very economical ring light solution, adding even more flexibility when using the Dino-Lite.

Note: The N3C-R works best at a working distance between 2-15 cm. It is not suitable for usage at a shorter working distance, and is not compatible with the high magnification models, such as AM4515T5 or AM4515T8.

Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.

Request a quotation for bulk orders by emailing sales@gtvision.co.uk

If you have any questions about this model, complete the form below or email us at sales@gtvision.co.uk
