  3. GXM-XPL3200 50X-600X Research, Polarising, Trinocular Microscope

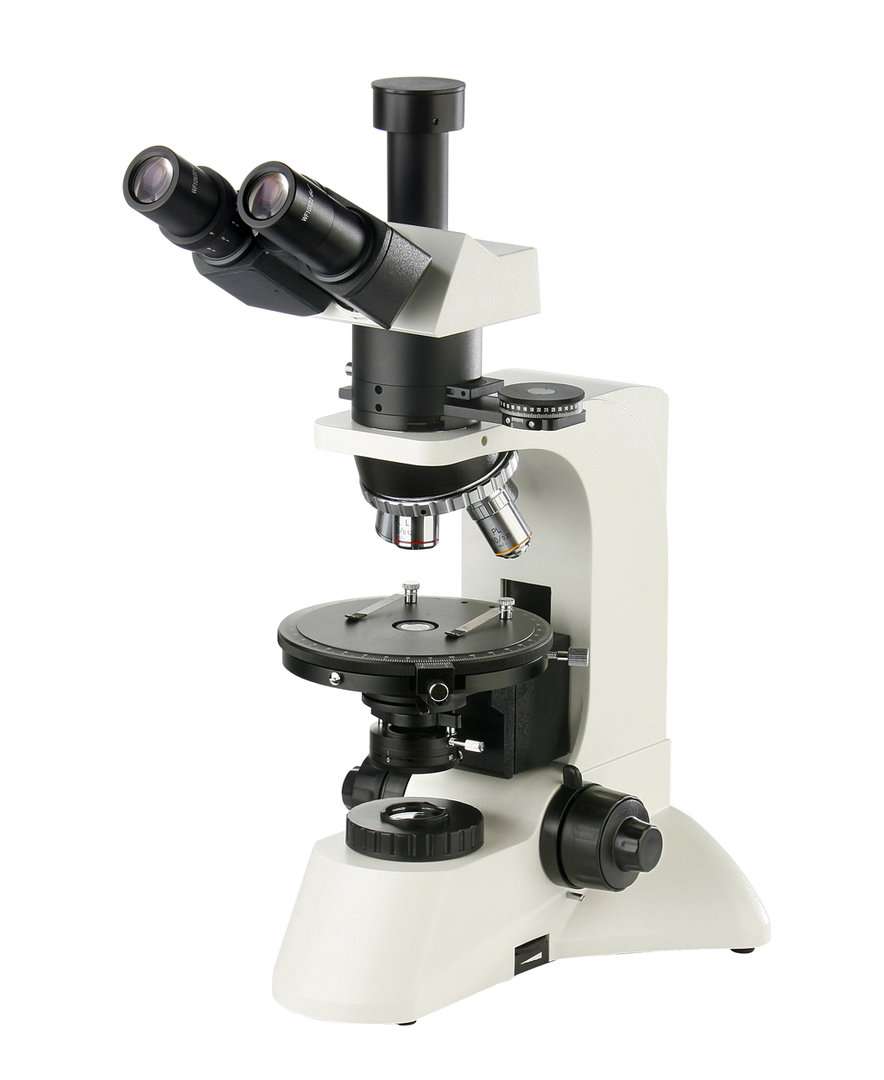

GXM-XPL3200 50X-600X Research, Polarising, Trinocular Microscope

SKU: 5373
£3,616.24
£3,616.24
Further Information
£3,616.24
£3,616.24
Top of the Range, Superb Quality Research Grade Polarising Microscope

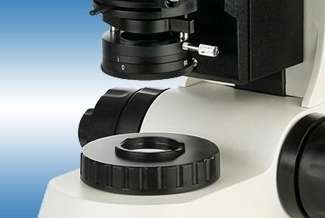

Transmitted  polarised light
Trinocular head with photoport for camera, pair 10X eyepieces with crosshair
4 Infinity Corrected, Plan Achromatic, Strain-free, Centerable Objectives 5X, 10X, 40X, 60X (optional 20X, 80X, 100X objectives)
Rotating, centerable Stage (optional attachable XY stage)
1/4 & 1 Wavelength Retardation Plates, Quartz Wedge, Bertrand Lens
Retractable Analyser in Head, Rotatable polariser
6V 30W transmitted light
Koehler illumination, Abbe Condenser, adjustable intensity halogen lights
Coarse/fine focus with adjustable tension and limit stopper
This range is part of GX Microscope’s latest range of polarising microscopes and represents the very best value for money in this demanding area of technology. The standard model is equipped with infinity optics, trinocular head, a fine set of first class objectives giving a magnification range of 40X-600X (with options of up to 1000X).
One eyepiece is fitted with a measurement reticle with a crosshair for centering and measurement and includes a focussing adjustment. The grade of polarisers fitted is the highest available giving good extinction with crossed polars.

Additional product information























Brand and ID Number GX Microscopes GXM-XPL3200 from GT Vision LTD Product ID5373
Eyepieces and Objectives Pair 10x WF Eyepieces 4 Infinity Corrected, Plan Achromatic Objectives 5X, 10X, 40X, & 60X
Head Trinocular head with interpupillary adjustment and diopter adjustment for the eyepiece tubes.
Stand & Focus Mechanism Smooth Coarse/Fine focus mechanism
Stage and Condenser Stage: 360° rotatable 30mm x 40mm travel.Condenser: Adjustable, Centerable NA 1.30
Illumination Transmitted light: 6V30W halogen lamp, adjustable brightness with spare lamp Incident light.
Datasheet Download
