Microscope Illumination Station
Couldn't load pickup availability
Microscope Illumination Station

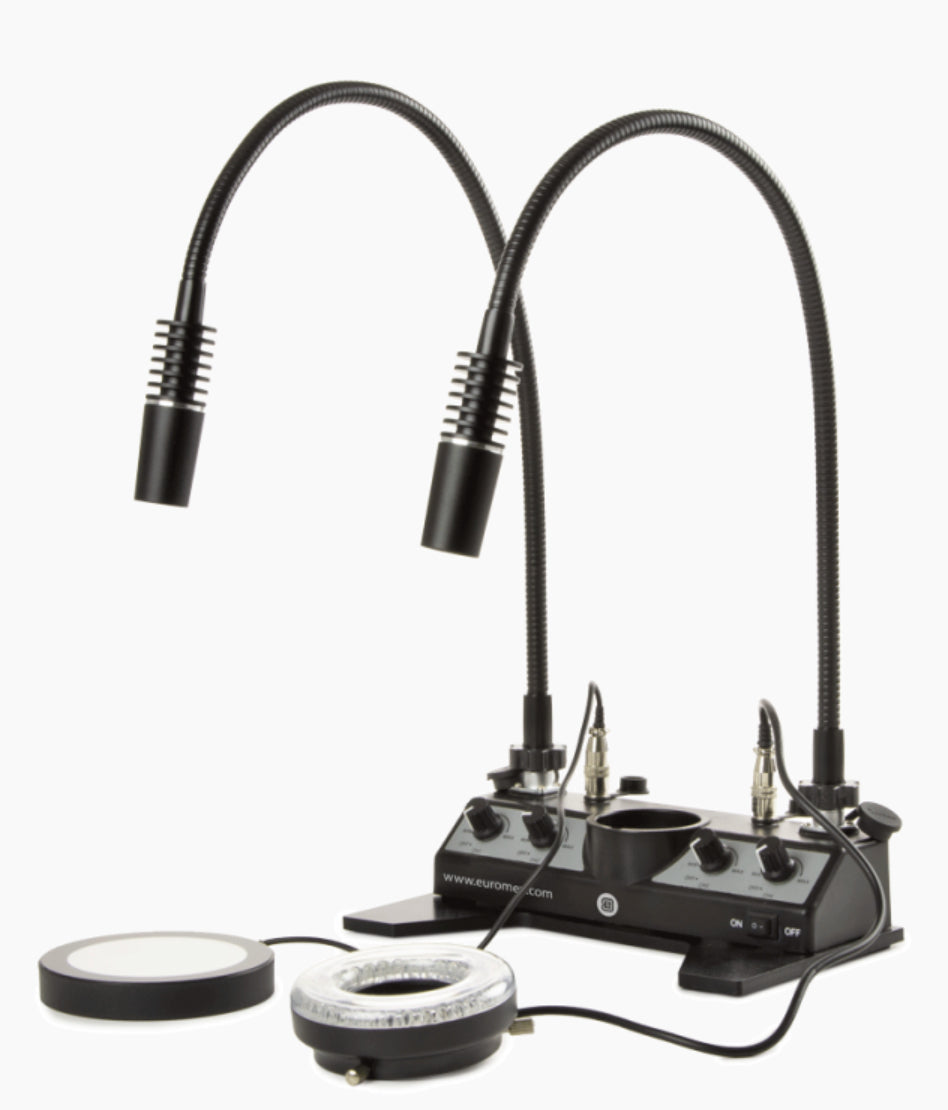

This illumination station comes with independently controlled goosenecks, a ring light and a transmitted stage illuminator making it a complete illumination solution. The base can be used as a standalone tabletop unit or can be slid over a pole stand
The interchangeable 3W power LED goosenecks allow flexible angle illumination while the 24,000 Lux ring light allows homogenous illumination from above. The transmitted light stage illuminator (8,000 Lux) is designed for translucent objects.
The illumination station is suitable for all kinds of applications in industry, life sciences and materials sciences.
• Light source station with multiple power supply connections for two self-sustaining gooseneck-type guides, one ring light and one transmitted stage illumination
• Each power supply connection controls the LED intensity independently from the other power supply connections
• Oblique illumination with two self-sustaining Gooseneck-type LED light guides equipped with either a 3 Watt white 6500 K LED or a 365 nm UV-LED or a 395 nm or 420 nm violet-LED
• Each self-sustaining gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm
• Homogeneous conical beam of light illumination with a white 6,500 K LED ring light generating with 60 LEDs up to 24,000 Lux. Mounting diameters from 21 to 61 mm
• Transmitted light stage illumination with a 6.500 K white LED generating up to 8,000 Lux with 42 LEDs. Stage diameter 94.5 and 15 mm thick

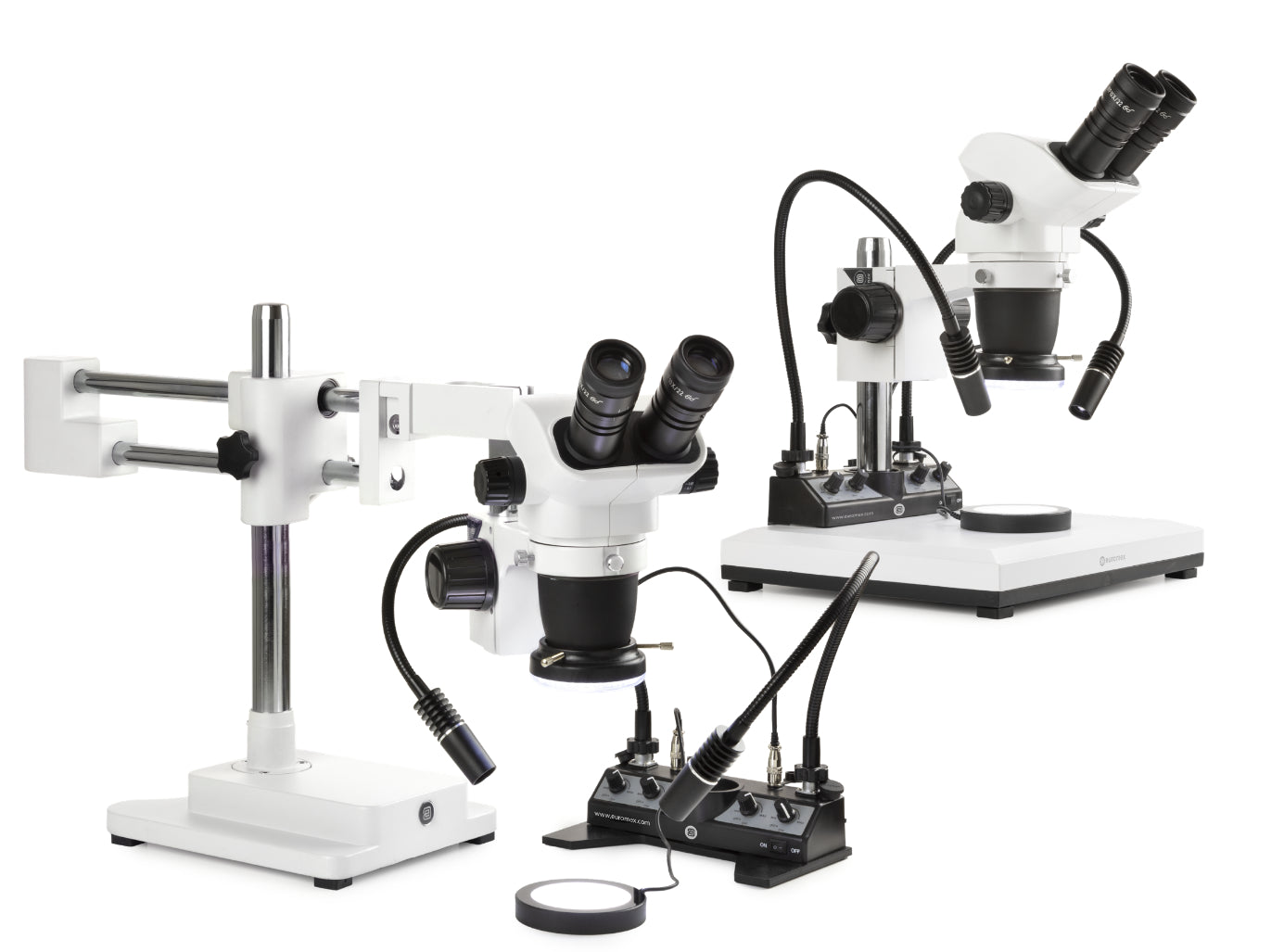

• Station can be placed on a tabletop as standalone illumination unit or mounted on the pole of a stereo microscope with diameters up to 44 mm or with 35- and 25-mm pole mounting adapter rings
