Otsuka SKK Interchangeable Lens 6X
Couldn't load pickup availability
his is Otsuka's patented, unique range of top quality SKK Interchangeable Lenses 2X-15X. for use with all SKK* magnifier ranges. These lenses are set within a rubber frame allowing them to be easily inserted and removed as required.

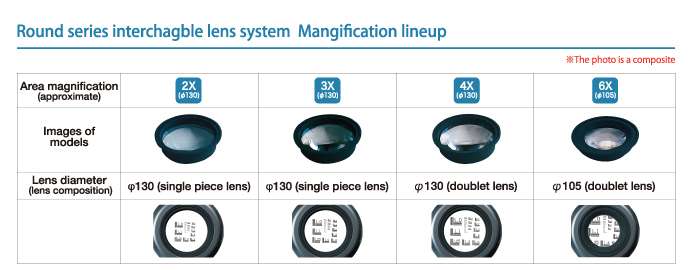

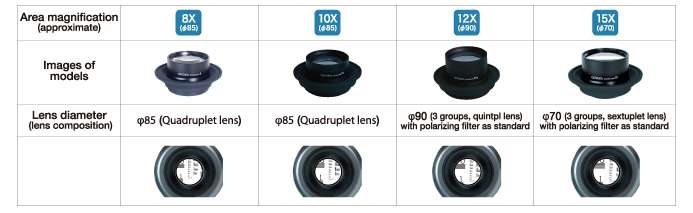

The following table describes the lens size and performance:
6X lens for SKK* Magnifier 105mm Diameter
Superb High Quality Interchangeable Lens for any SKK* OTSUKA magnifiers
Fully Coated Optics for optimum performance
| Lens ID and Mag | Eye Point (mm) | Lens Diameter (mm) | Working Distance (mm) | Field Of View Diamter (mm) | Weight (g) | Multicoated |
| SKK-2X | 150 | 130 | 160 | 170 | 400 | Yes |
| SKK-3X | 150 | 130 | 130 | 140 | 500 | Yes |
| SKK-4X | 150 | 130 | 110 | 120 | 700 | Yes |
| SKK-6X | 100 | 105 | 82 | 70 | 570 | Yes |
| SKK-8X | 105 | 85 | 54 | 40 | 1300 | |
| SKK-10X | 80 | 85 | 43 | 40 | 1350 | |
| SKK-12X | 80 | 90 | 30 | 40 | 1670 | |
| SKK-15X | 65 | 70 | 30 | 30 | 1560 |
Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.
Request a quotation for bulk orders by emailing sales@gtvision.co.uk
If you have any questions about this model, complete the form below or email us at sales@gtvision.co.uk
