UltraZOOM-3 Research Grade Stereo Microscope 7X-63X Trinocular. Choice of stands – see below
Couldn't load pickup availability

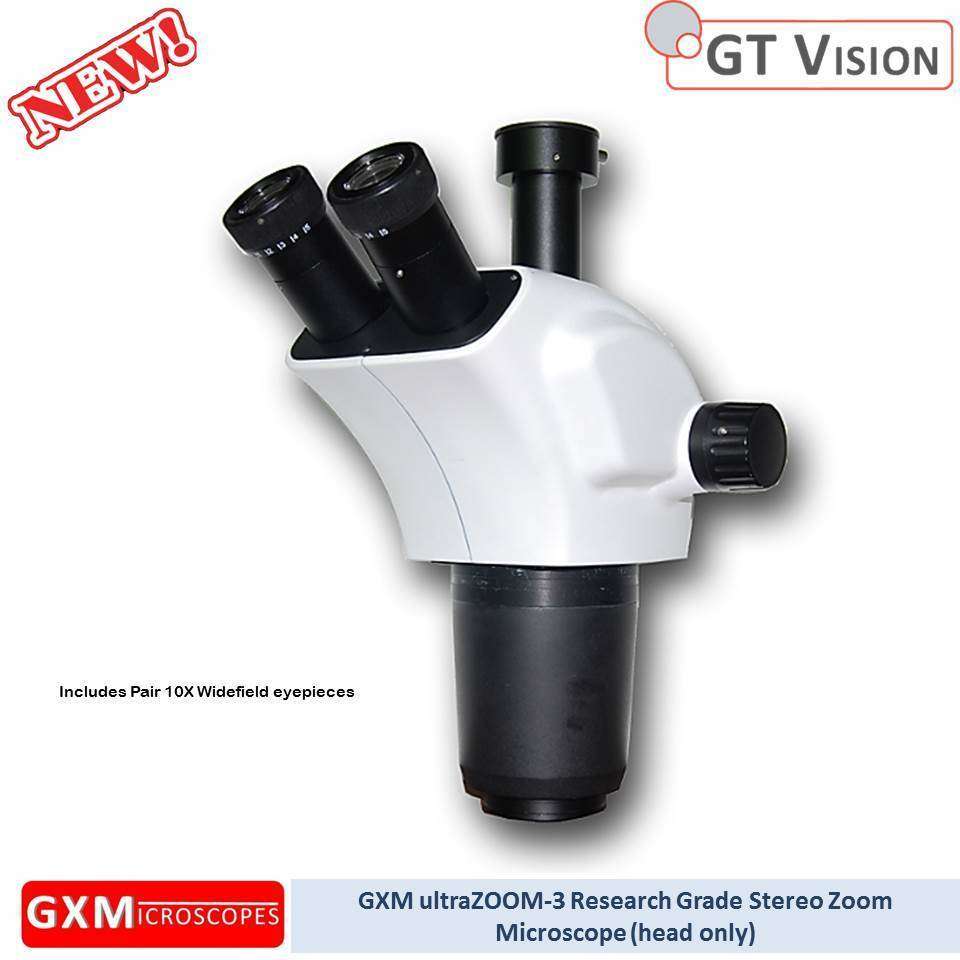

GX Microscopes ultraZOOM-3 Research Grade, Long Working Distance, Trinocular Stereo Microscope
The ultraZOOM-3 is a research grade, stereo microscope with high optical quality, flat field objectives, very widefield eyepieces, high quality output to camera, large zoom range, long working distance - huge choice of stands. The build quality is exceptional being all metal with HD coated optical components.
The ultraZOOM-3 has a magnification zoom range of: 7X-63X, expandable to a massive 3.5X-351X with options and is equipped with a camera port on the trinocular head as standard for live image viewing capture and analysis.

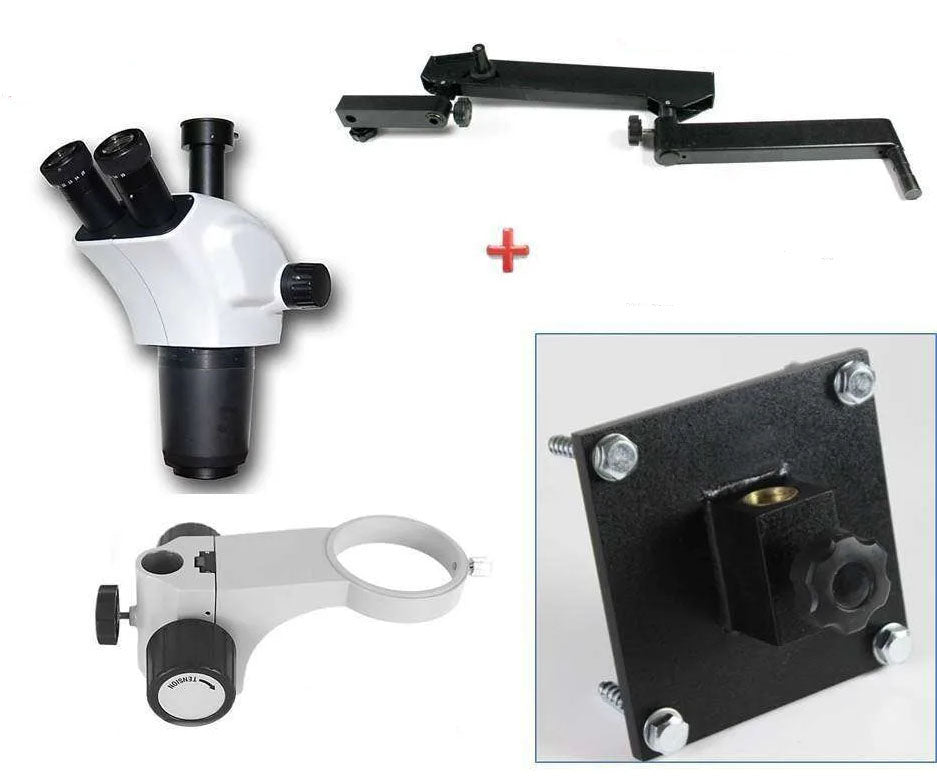

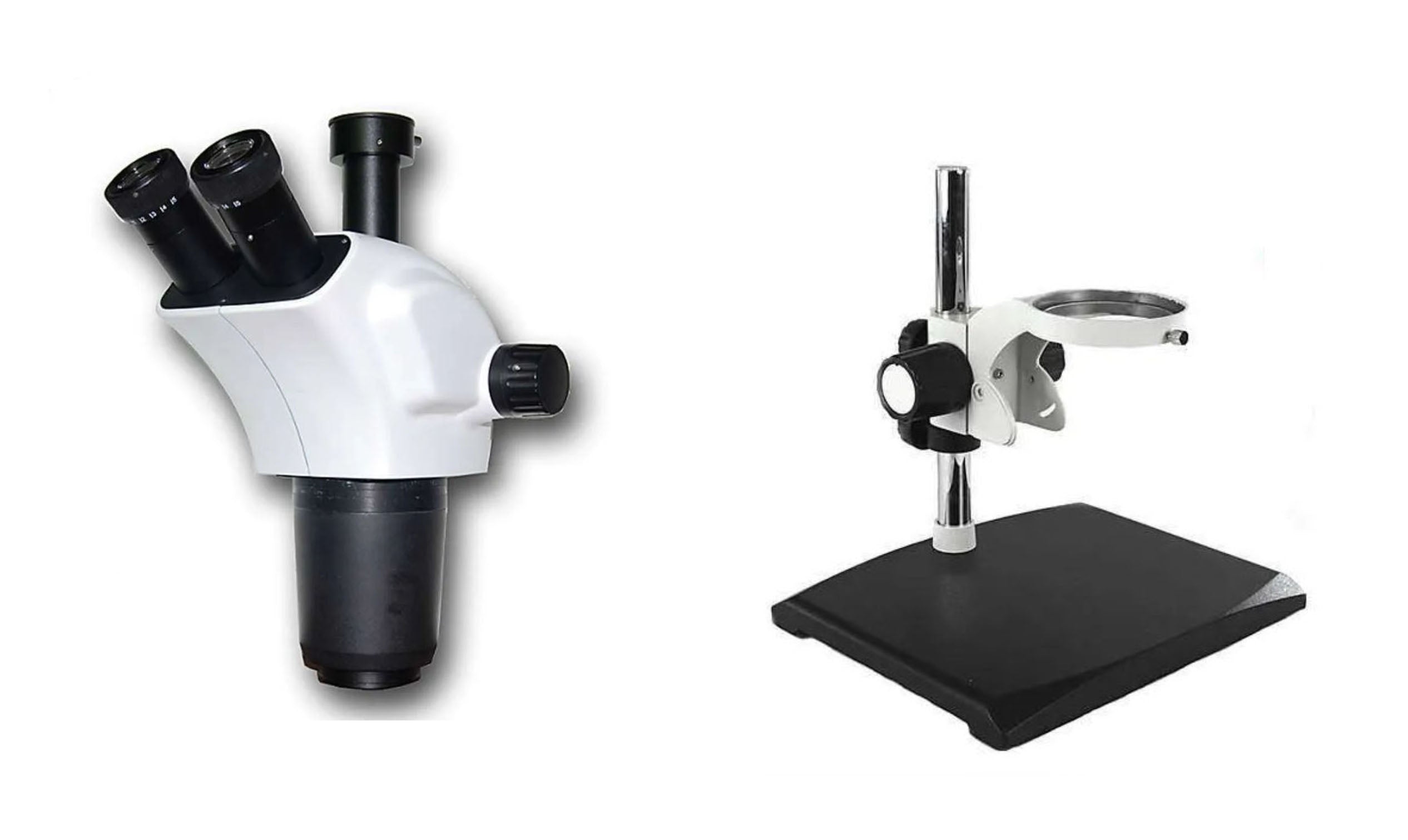

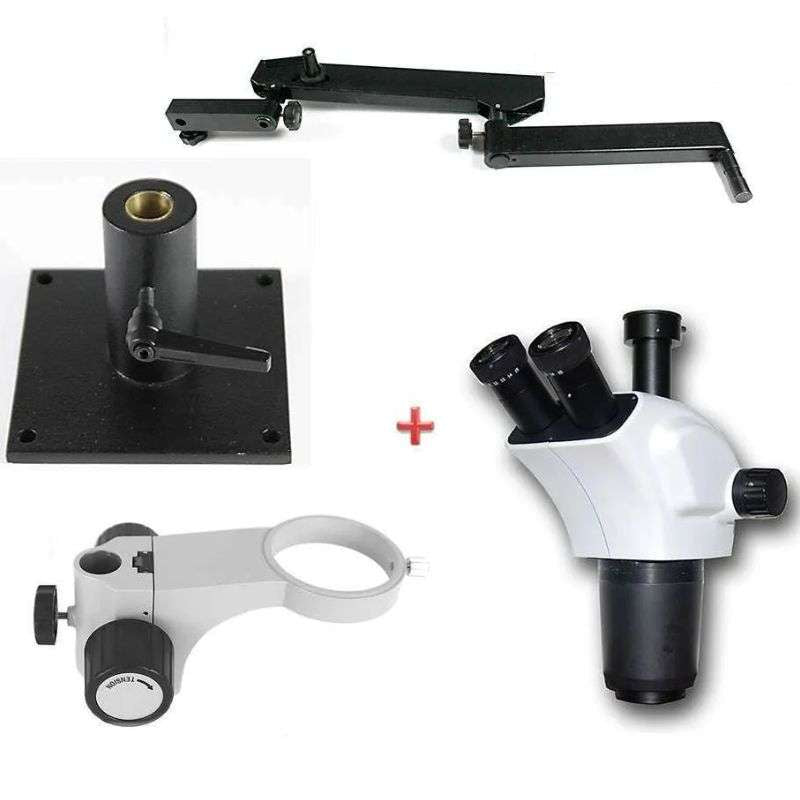

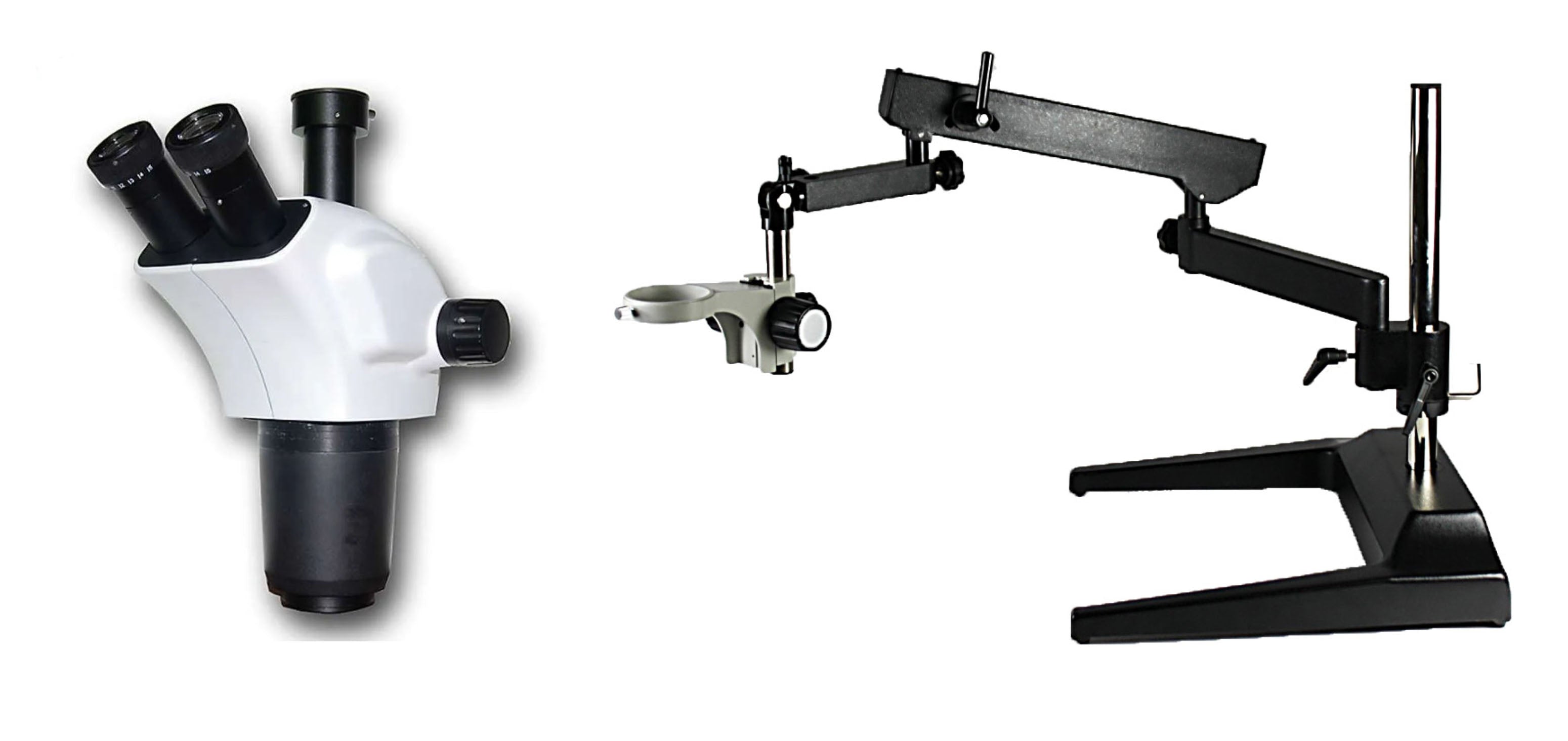

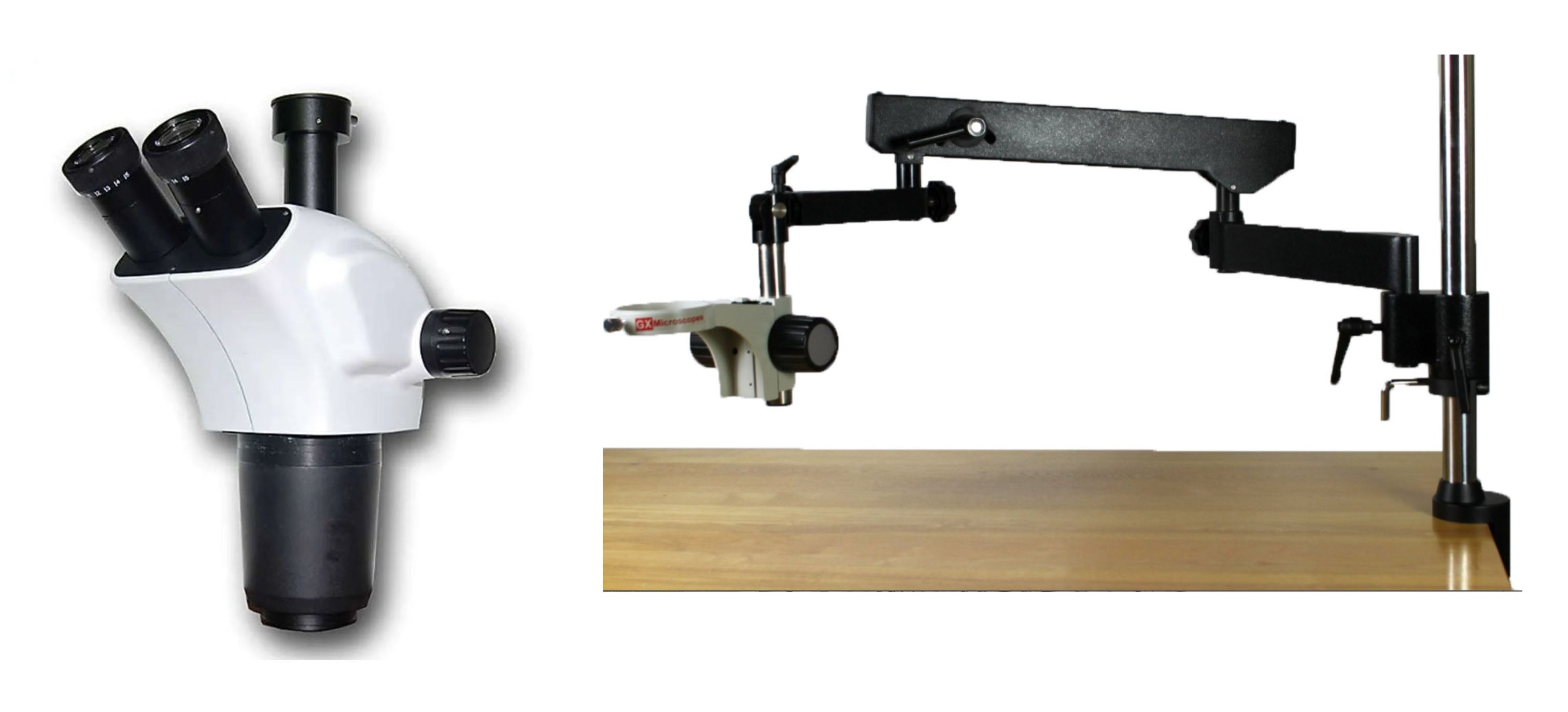

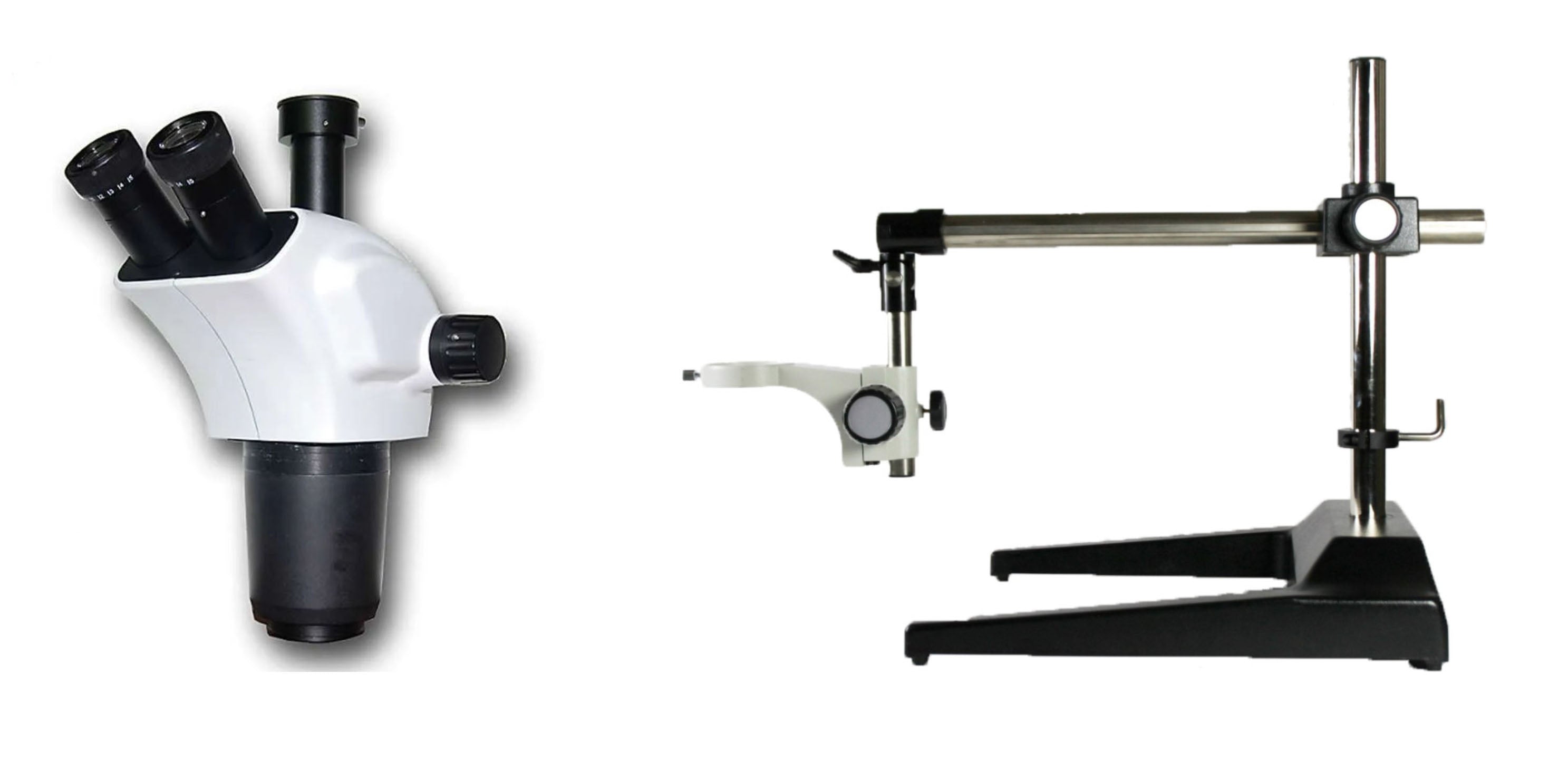

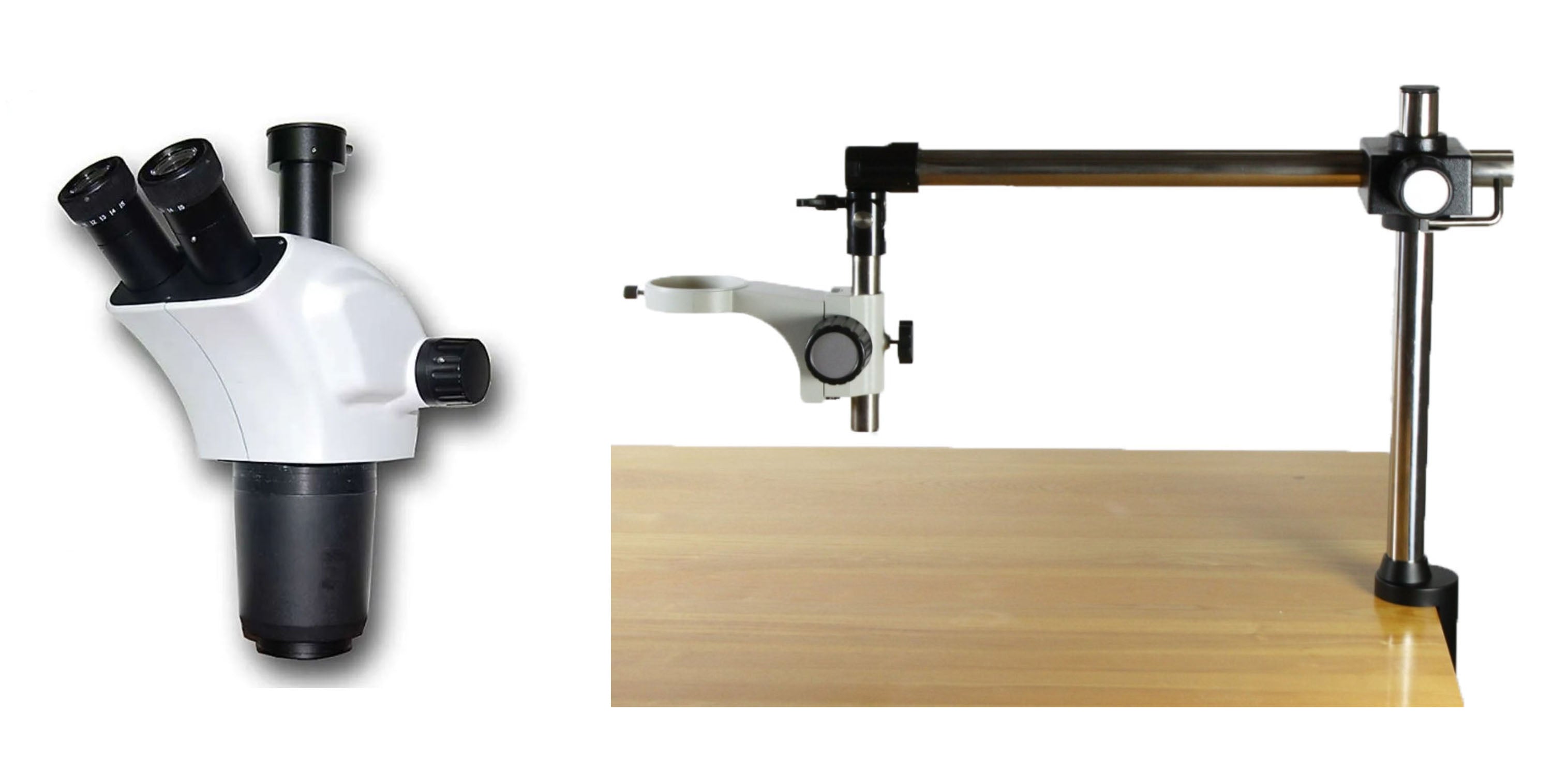

- Huge choice of stands
- This stylish microscope is the very latest, modern design by GX Microscopes. It includes all the features you would expect to see from such an advanced design. The ultraZOOM-3 has superb quality coated optics which deliver a bright, crisp, high resolution image in beautiful 3D. The 3D effect is produced by the presence of a pair of angled zoom objectives each of which presents a slightly different view of the subject and transmits this to each eyepiece.
This microscope is suitable for use for almost every task including entomology, PCB repairs, research, university teaching, industrial inspection and any dissection work.
| Head | Trinocular- selectable output to eyepieces or camera port |
| Eyepieces | 10x FN22 |
| Eyepiece Tubes | 30mm internal diameter |
| Magnification range | 7x-63x (with 10x eyepieces and no extra objective) |
| Zoom Control | Pair of zoom knobs ergonomically located on both sides of the head with calibration marks for the magnification |
| Body | Fits 88mm microscope holder |
| Working Distance | 110mm (with no extra objective) |

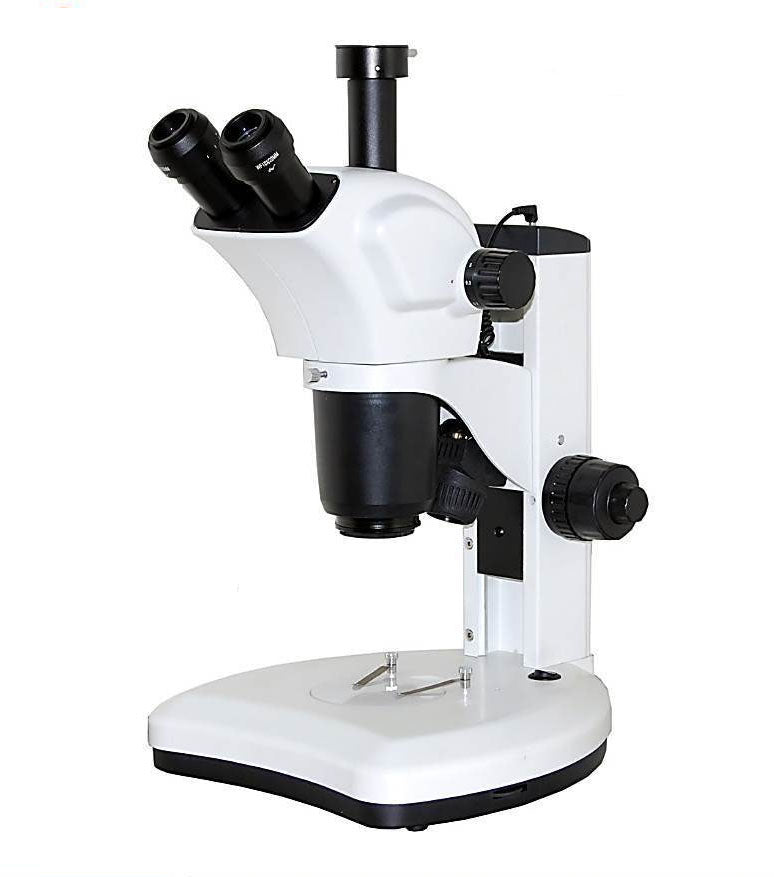

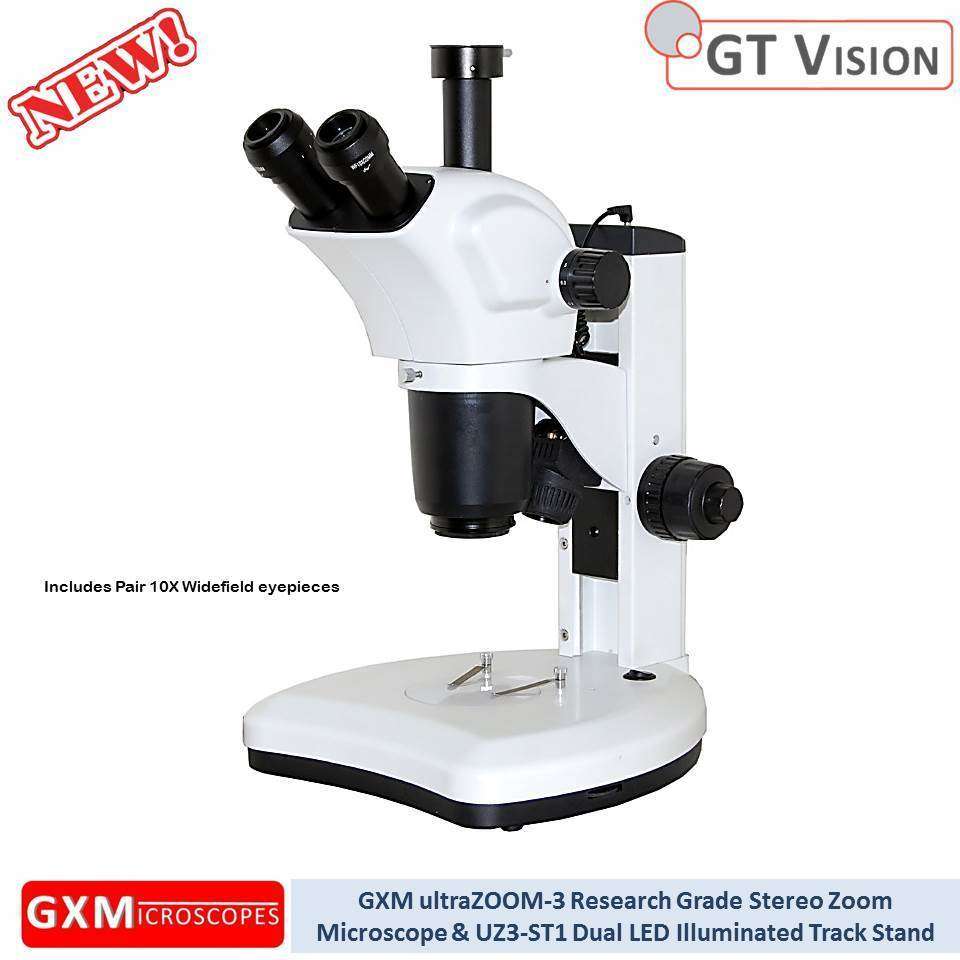

| Stand | Dual LED track stand |
| Auxillary Objectives | |||
| Eyepieces | 0.5X (WD 188mm) | None (WD 110mm) | 2X (WD 40mm) |
| 10X | 3.5X-31.5X | 7X-63X | 14X-126X |
| 20X | 7X-63X | 14X-126X | 28X-252X |
| WD= Working Distance | |||
|
