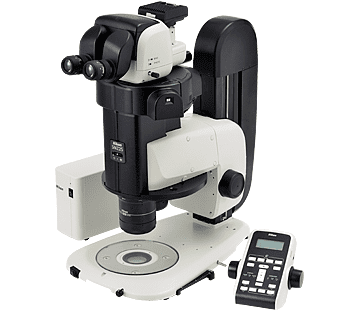

Nikon SMZ25 Motorised Stereo Zoom Microscope - Huge 25:1 Zoom Range
Couldn't load pickup availability
Nikon SMZ25 Motorised Stereo Zoom Microscope - Large 25:1 Zoom Range
The SMZ25 stereo microscope is revolutionizing stereomicroscopy with its unique zoom range, along with modularity, comfort and ultra-high-performance optics. These new SMZ stereo microscopes cover a wide range of functionality, from basic stereoscopic images of unparalled quality to the most sophisticated observation. An innovative optical system known as Perfect Zoom Optics
High zoom range and high resolution
The SMZ25 has an 25:1 zoom range, giving a magification range of 6.3x-157.5x with the standard 10x eyepieces and 1x objective. This can be expanded to 3.15x- 315x with additional components.
This means that the microscope can provide macro observations and then the user can zoom in to see micro structures.
Superior resolution never before seen on a stereomicroscope
Nikon's newly developed objective lens series, the SHR Plan Apo series, offers a high resolution of 1100LP/mm (Observed value, using SHR Plan Apo 2x at maximum zoom). The new SHR Plan Apo series of lenses deliver brilliant images with true-to-life colours.
Remote Control Operation
The remote controller provides easy access to zoom and focus controls and is designed for both right and left hand use. The remote controller contains an LCD monitor with an adjustable backlight which provides information regarding the zoom factor, objective lens, filter cube, and LED DIA brightness at a glance.
Observation methods
| Optical system | Parallel-optics type (zooming type), apochromatic optical system |
| Zoom | Manual |
| Zoom ratio | 25:1 |
| Zoom range | 0.63x-15.75x |
| Magnification (Standard) | 6.3x-157.5x |
| Magnification (Total) | 3.15x-315x |
| Working distance (1x objective) | 60mm |
