Dino-Lite Digital Microscope Live Blood Analysis System
Couldn't load pickup availability
Microscope System consists of:
Dino-Lite AM4515T8:
With up to 900x magnification and high-resolution optics, this high magnification Dino-Lite model reveals details as small as 1.5 micrometer (µm). It also features a greater working distance at high magnification making it easier to watch and move very small objects under the microscope.
These unique features make the Dino-Lite AM4515T8 a great inspection tool for biomedical and scientific research, material analysis, electronics inspection, or any similar application that require high magnification, versatility and mobility. The Dino-Lite AM4515T8 is bundled with the user-friendly DinoCapture 2.0 software. For this model it includes functions such as automatic magnification reading (AMR), calibration, measurement, capturing & annotating images, and record video. Although the AM4515T8 model can be operated handheld, a high-precision stand is recommendable. The Dino-Lite RK-10A for example is a great add-on, it is a sturdy and stable high-end stand solution constructed of resilient stainless steel and lightweight aluminum and offers a very precise fine-focus adjustment.
| MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|---|---|---|---|---|
| Listed values may differ slightly | * Without front cap | Unit = mm | ||
| 700 | 6.6 | 0.6 | 0.4 | 0.09 |
| 800 | 6.4 | 0.5 | 0.4 | 0.08 |
| 900 | 6.3 | 0.4 | 0.3 | 0.07 |
GXM - Dino-Lite AM4515T8, 700X-900X, EDGE with Automated Magnification,1.3Mp Measurement Software

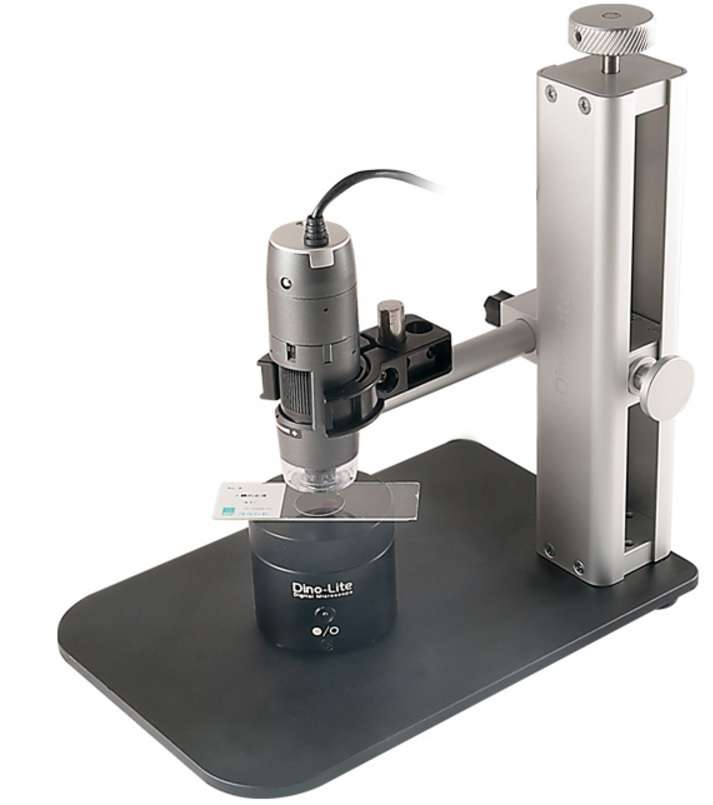

Dino-Lite RK-10A Stand with Fine Focus:
The Dino-Lite RK-10A is a sturdy and stable high-end stand solution that can be used with all the professional Dino-Lite models. It is constructed of resilient stainless steel and lightweight aluminum and offers a very precise fine-focus adjustment as well as a quick release function.
