iScope multihead microscope with 7 heads
Couldn't load pickup availability

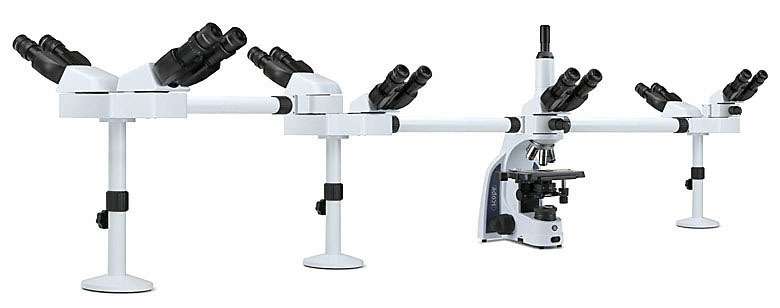

Euromex iScope multihead microscope with 7 heads
EWF 10x/20 mm eyepieces
Trinocular version with 6 extra binocular heads. Siedentopf 30° inclined tubes.
Interpupillary distance 50-75 mm with diopter adjustment on left tube
Multihead attachment with joystick to move a green or red pointer across the entire field of view
Revolving quintuple reversed nosepiece on ball bearings
Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Coaxial coarse and fine adjustments with 200 graduations
Precision 1 μm, 0.2 mm per rotation. Total travel approximately 24 mm
Rack-stop for protection of slides and objectives. Friction adjustment
Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V power supply (CE)
iCare Sensor: The illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy
CSS - Cable Storage System. The Cable Storage System of the iScope allows the user to easily insert the power cable into the back of the instrument
Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in styrofoam case
