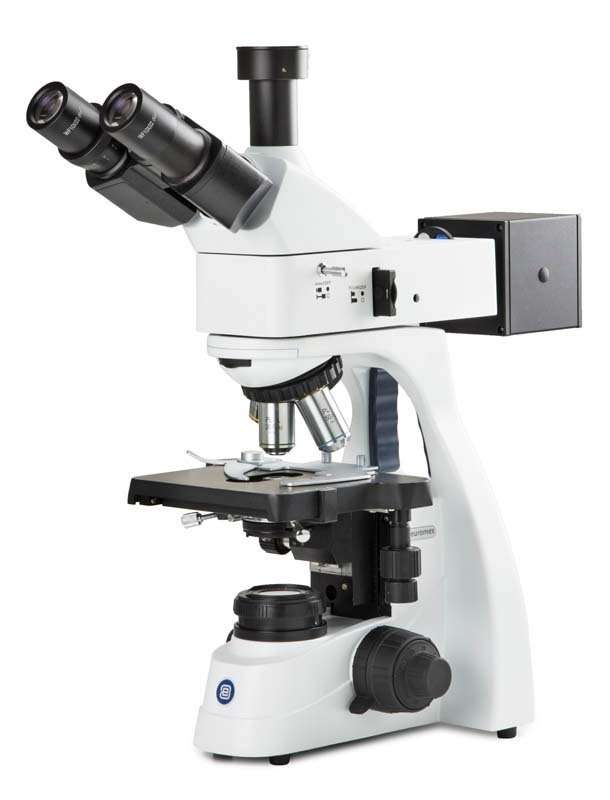

bScope trinocular materials microscope plan 5/10/20/50 objectives LED Köhler illumination
Couldn't load pickup availability
Euromex bScope trinocular materials microscope, plan 5/10/20/50 objectives, NeoLED™ Köhler illumination
HWF 10x/22 mm eyepieces
Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm. Dioptre adjustment on left tube
Reversed quintuple revolving nosepiece on ball-bearings
Plan PLMi 5x/0.12, 10x/0.25, 20x/0.40, S50x/0.70 infinity corrected IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2 mm per rotation. Total travel approximately 18 mm. Friction adjustment
Plain 185 x 140 mm rackless stage with 74 x 48 mm mechanical rackless stage with glass insert
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ Köhler illumination. Internal power supply 100-240 V (CE)
Supplied with power cord, dust cover in styrofoam case
