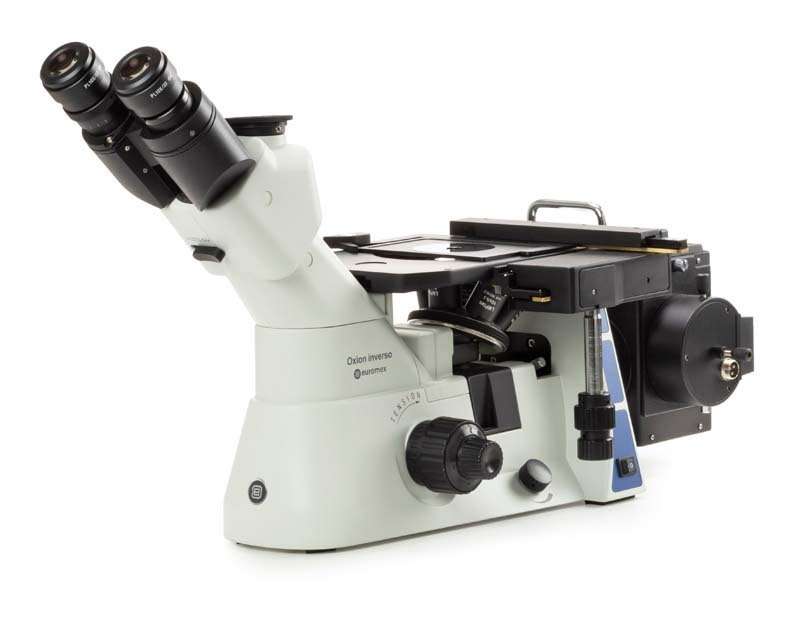

Oxion Inverso inverted trinocular materials microscope 5/10/20/50/100x objectives
Couldn't load pickup availability
Euromex Oxion Inverso inverted trinocular materials microscope 5/10/20/50/100x objectives
Pair HWF plan 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm
Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Long working distance plan PL 5x, 10x, 20x LWD IOS and plan semi-apochromatic 50x and 100x LWD IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with mechanical 120 x 78 mm X-Y stage and metallic insert with hole
Abbe condenser with iris diaphragm and a field iris diaphragm
Transmitted Köhler 50W halogen illumination, intensity adjustable with internal power supply 90-240 V (CE)
Polarization filter, analyzer 360° rotatable included
Supplied with power cord, dust cover, blue and green filters and user manual.
Microscope supplied in an aluminium transport case
