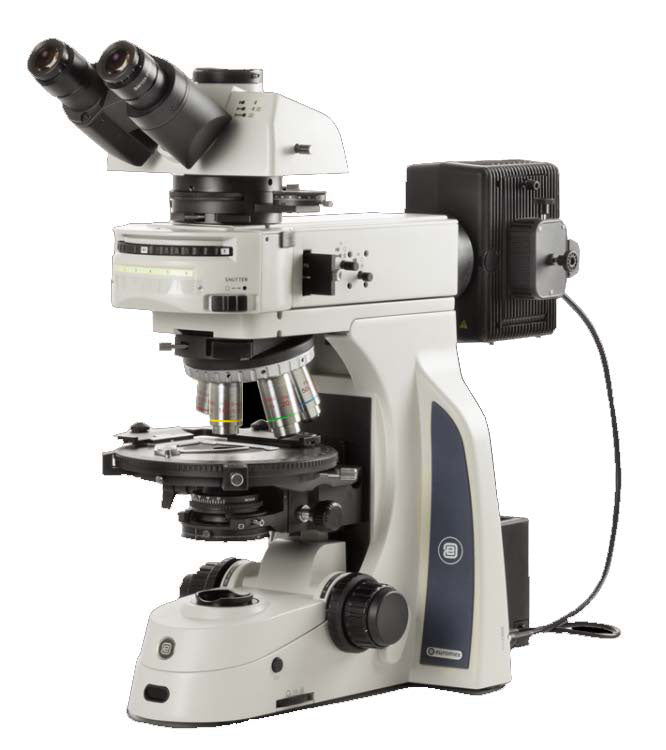

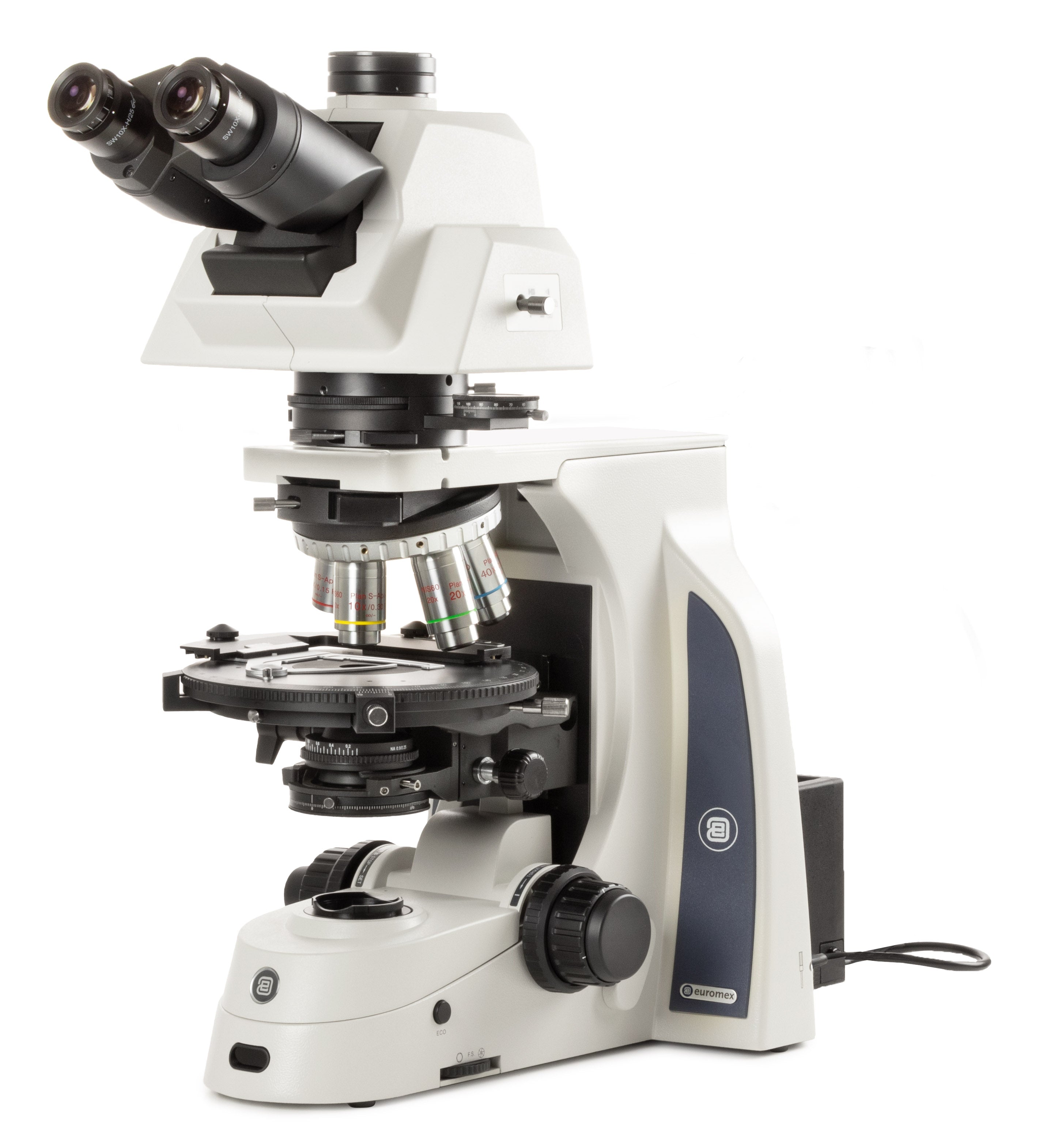

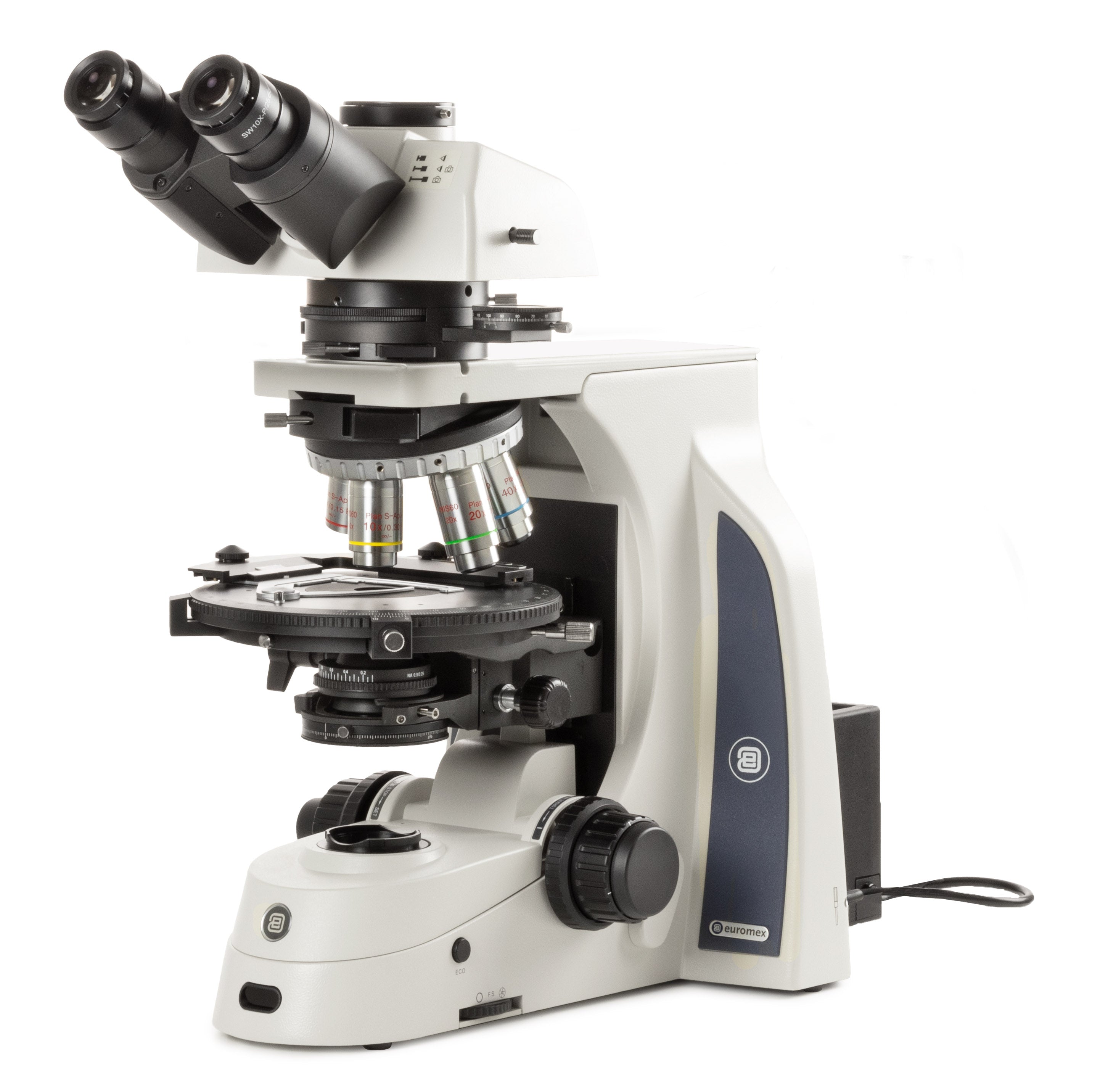

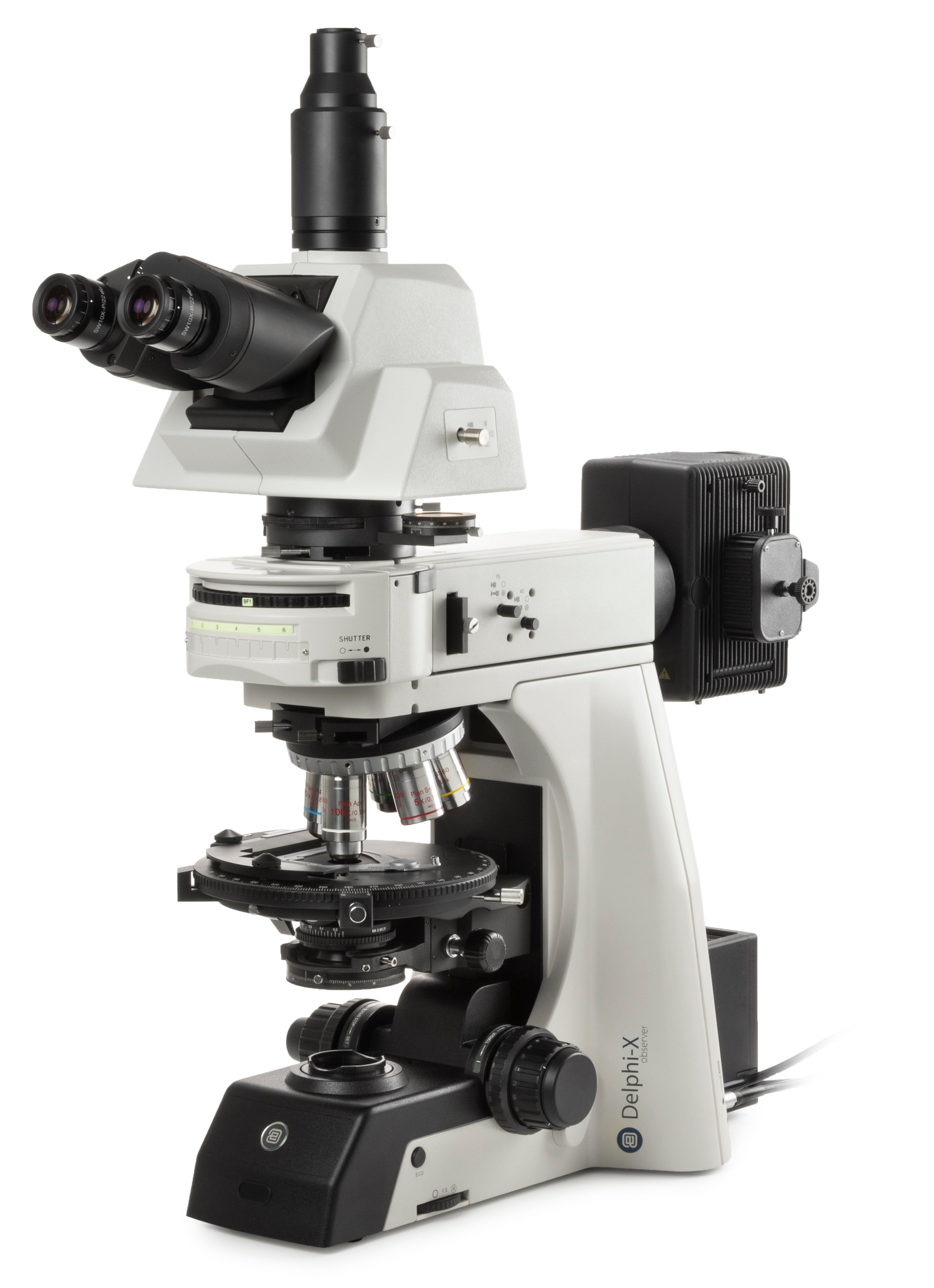

Delphi-X Upright Polarising Microscopes Range
Couldn't load pickup availability
State-of-the-art microscopes for advanced petrology applications
The ergonomic design and outstanding state-of-the-art objectives make the Delphi-X Observer the ideal microscope for advanced petrology application. The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power
SWF 10x/25 mm eyepieces
Trinocular head with Siedentopf 30° inclined Ø 30 mm tubes. Interpupillary distance 47-78mm with diopter adjustment on both eyepieces
3-positions beamsplitter (0:100/ 100:0/ 80:20)
Revolving quintuple reversed nosepiece on ball bearings, centrable
Plan PLPOL 4x/0.10, 10x/0.25, 20x/0.45, 40x/0.65 IOS strain free objectives, M25
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Polarization attachment with Bertrand lens, lambda, 1/4 lambda and quartz wedge compensators in slider.
Rotatable 190 mm stage
Height adjustable Abbe N.A.1.25 condenser with numerical aperture engravings. Working distance 10.2 mm
Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35 mm
Rack-stop for protection of slides and objectives. Friction adjustment
Transmitted 100 W 24V halogen adjustable epi-illumination and internal 100-240 V power supply (CE)
iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy
Carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder
Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box
