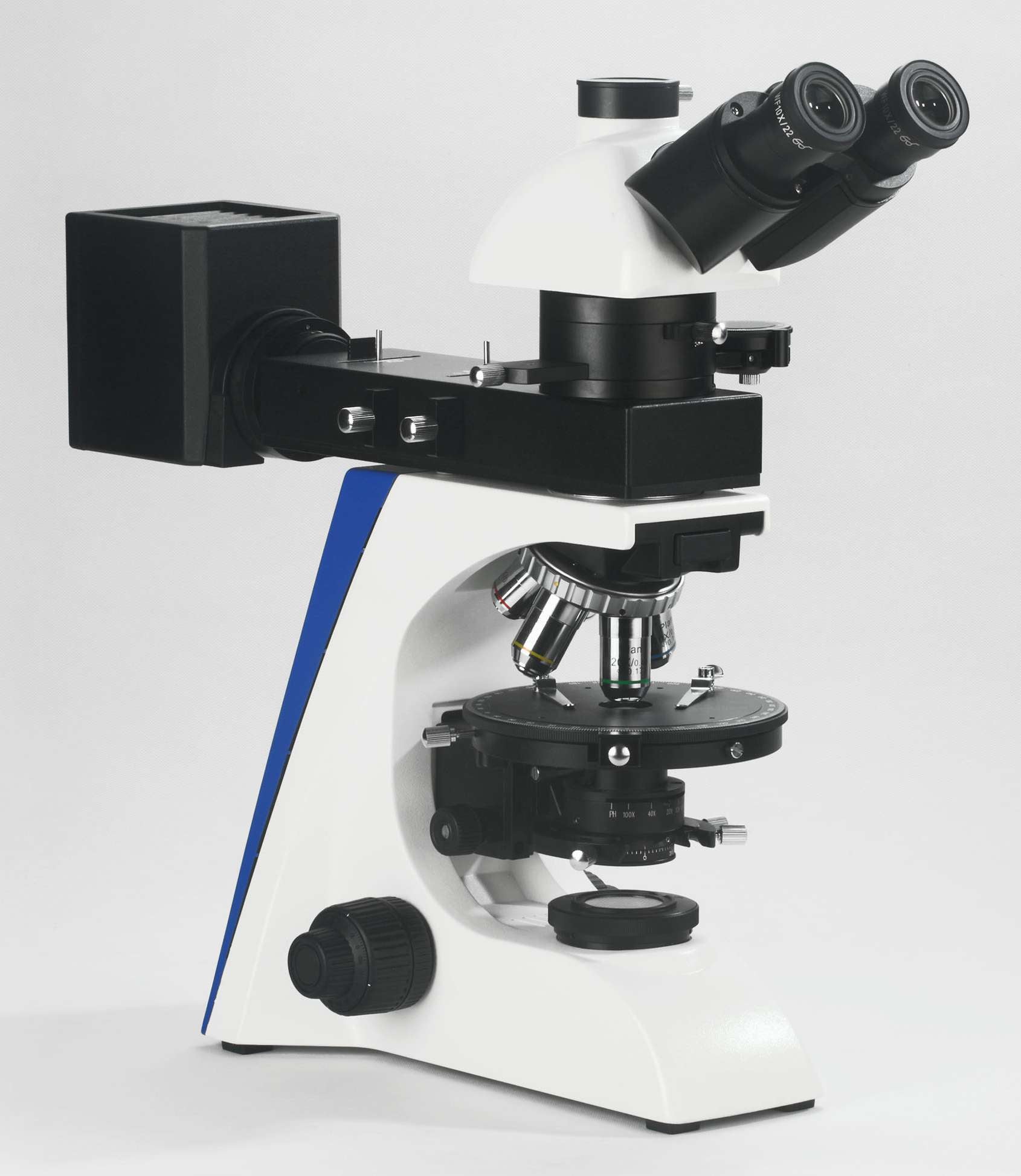

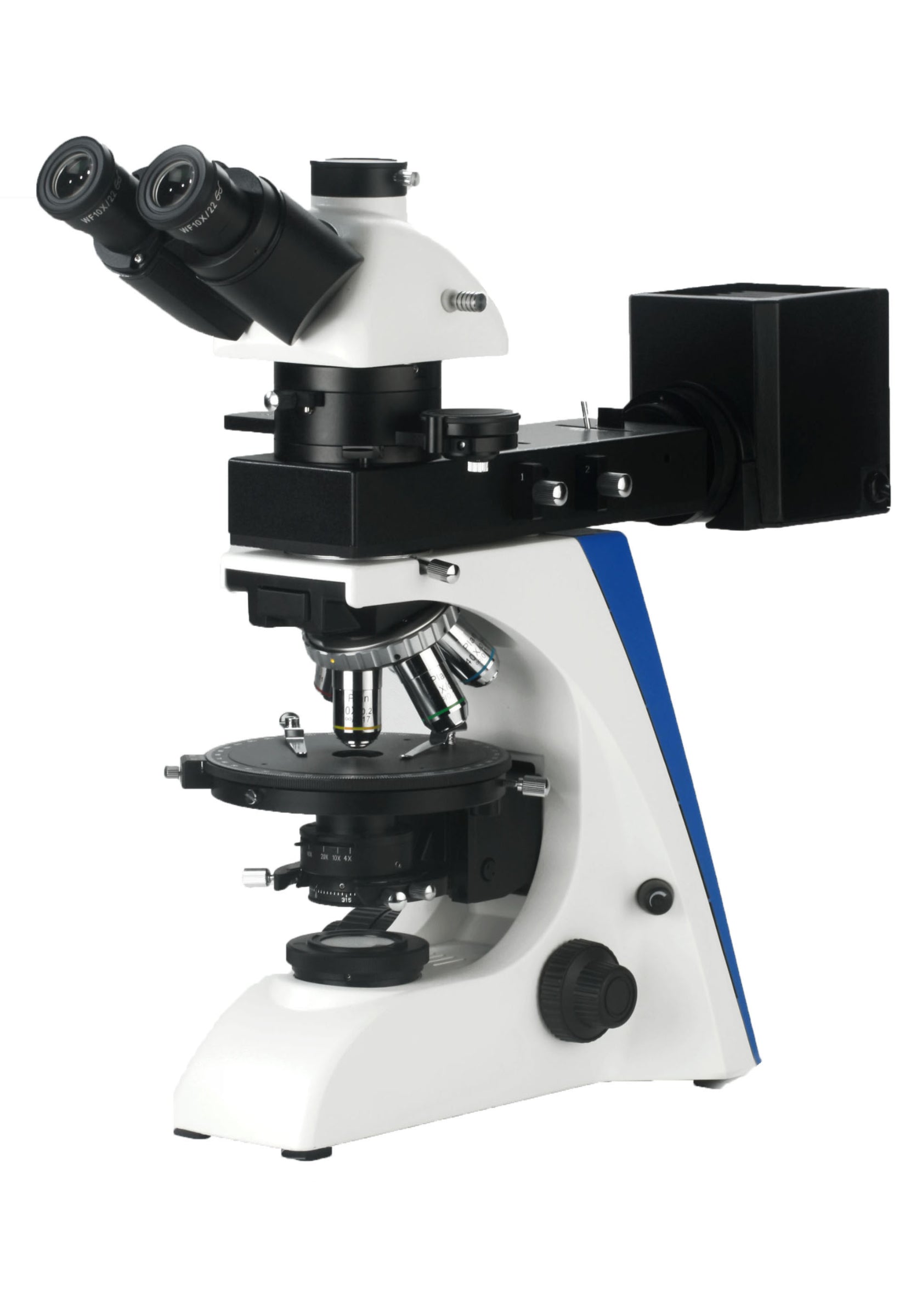

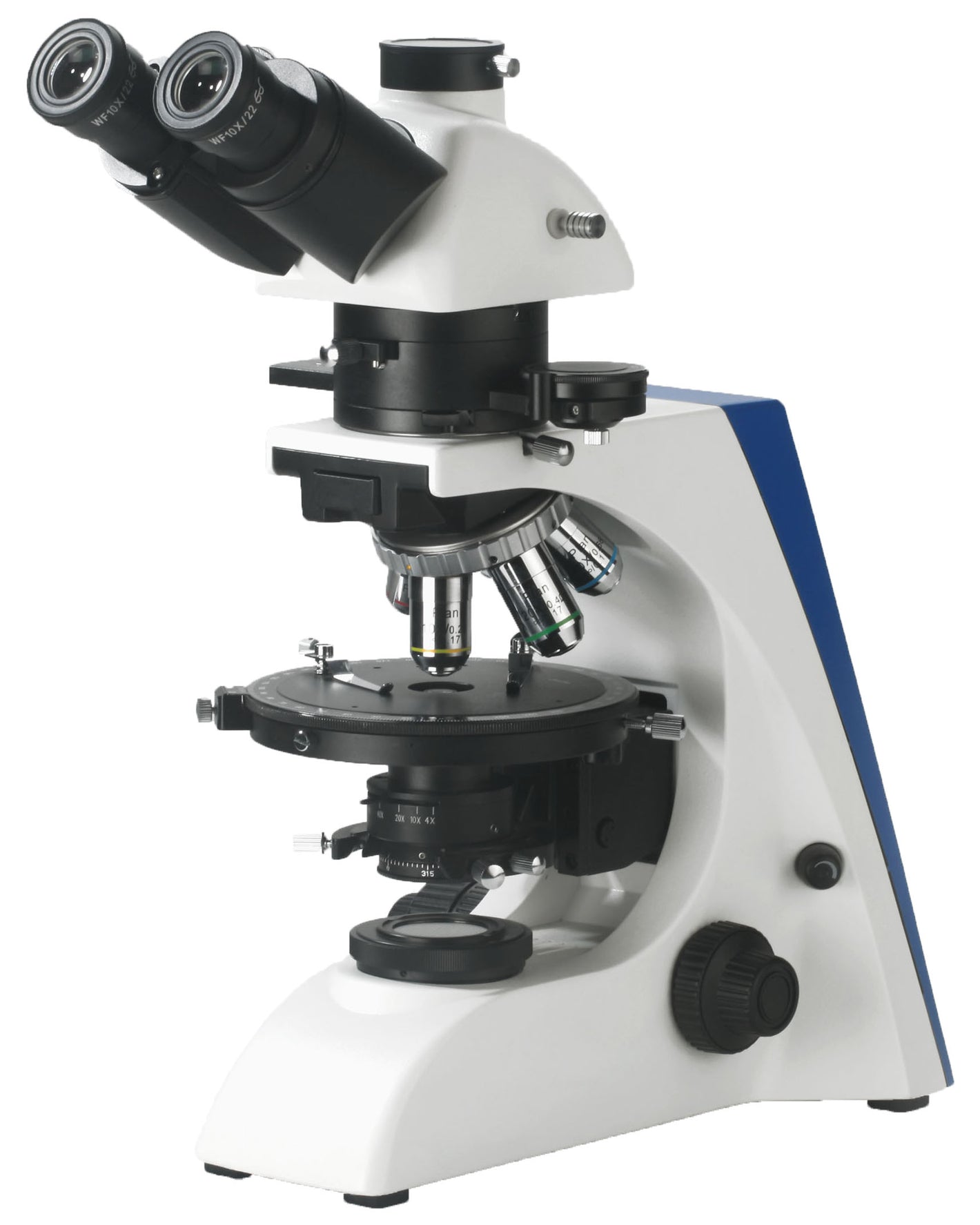

GX Microscopes XPLPoltec-1 Trinocular Transmitted and Reflected Illumination Polarising Microscope
Couldn't load pickup availability
The Poltec series of polarising microscopes are designed for routine and research use for analysing a range of geological samples, including thin rock sections. These microscopes have a high specification, including infinity optics, strain free centerable objectives, Bertrand lens and a range of wave plates.
The stand is a modern and ergonomic design which makes it easy to use for extended periods of time.
| Head | Trinocular- 100/0 phototube |
| Eyepieces | 10x FN 20 plus extra eyepiece with a crosshair and graduated micrometer scale |
| Objectives | Strain free plan 4x, 10x, 20x, 40x |
| Nosepiece | Quintuple |

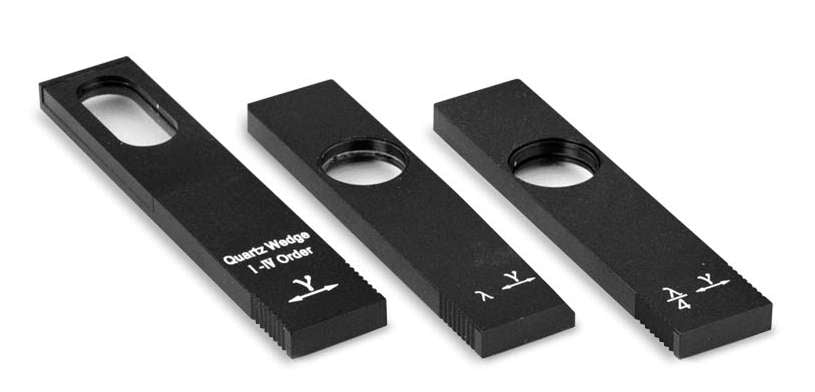

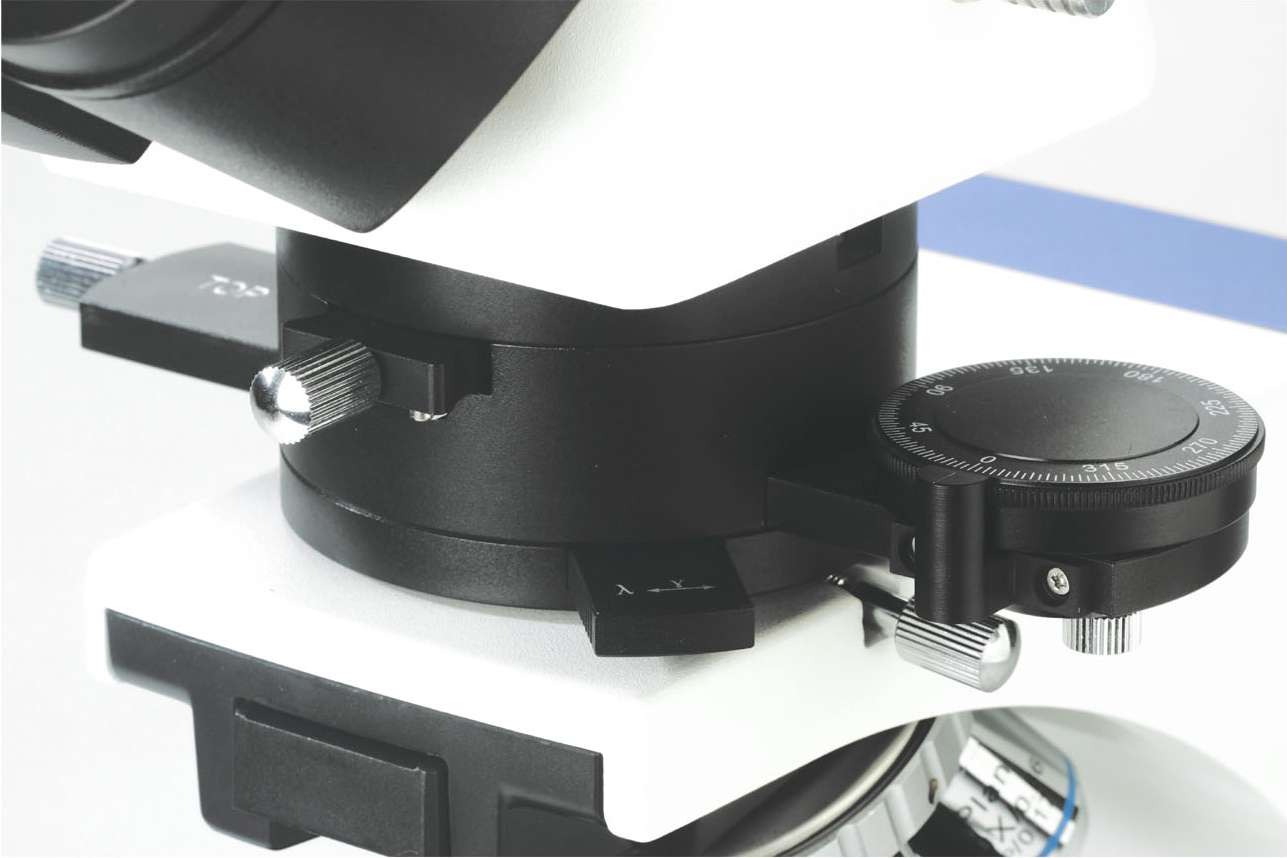

| Polarising components | Polariser and analyser, Bertrand lens, lambda (first class red), quarter lambda and quartz wedge (I-IV order) wave plates |

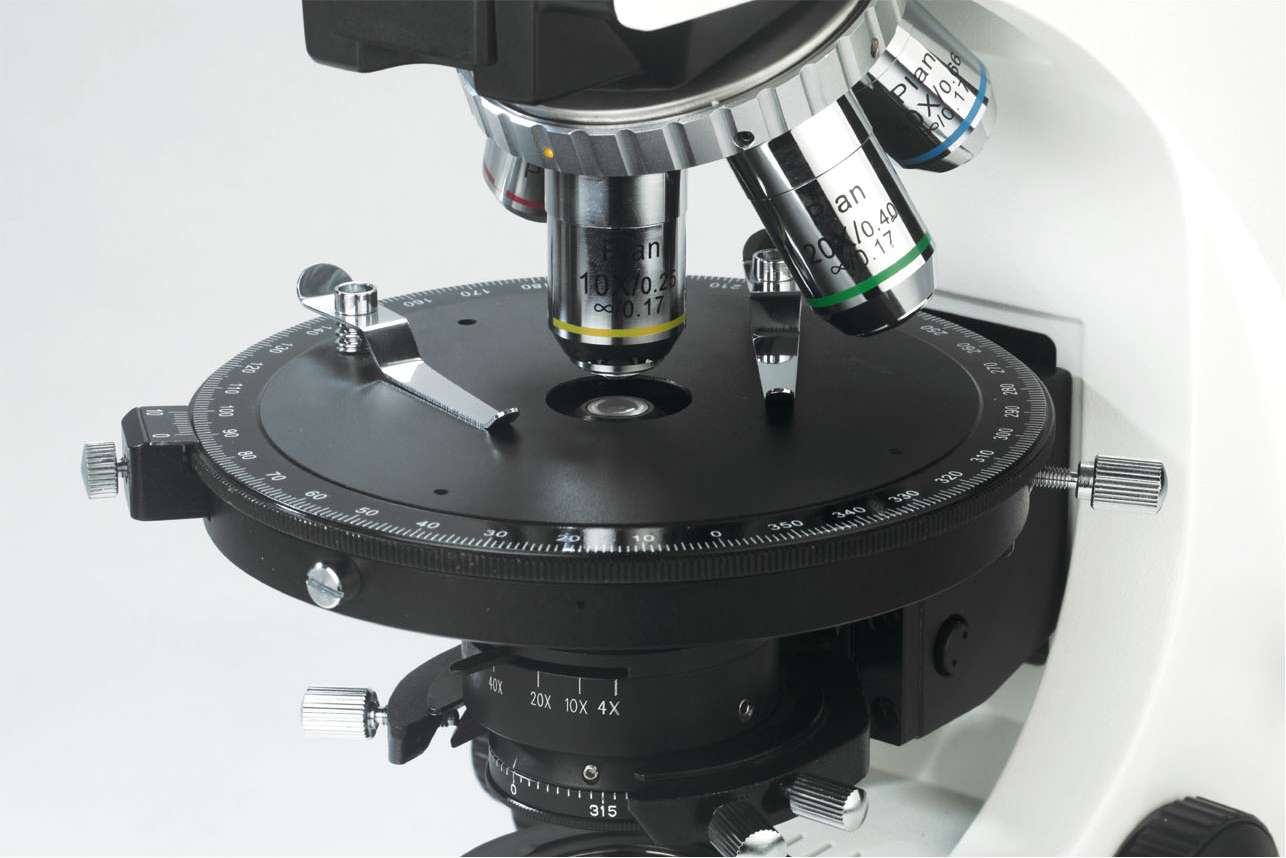

| Stage | Rotating circular stage with specimen clips and full graduations with position lock |
| Condenser | Abbe Condenser with integrated, rotatable polariser with graduations |
| Illumination | Transmitted and reflected LED illumination |
Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.
Request a quotation for bulk orders by emailing sales@gtvision.co.uk
If you have any questions about this model, complete the form below or email us at sales@gtvision.co.uk
- Because we supply microscopes from a wide variety of brands and manufacturers, we can offer expert advice on which microscope model is best suited for your application and budget without bias towards a particular brand.
- We provide tailor-built systems to match your specific requirements and budget.
- Expert support pre and post purchase.- For a full system solution, we also supply microscope cameras and software (again from a wide choice of brands).
- We can retro-fit cameras and illumination systems, including modern LED fluorescence illuminators, to most models and ages of existing microscopes. We also have in-house engineering capabilities for particularly unique requirements.
