Meiji MT6830 100X-400X, Trinocular Asbestos Microscope, Phase Contrast and Polarised Illumination

SKU: MEIJIMT6830
£6,980.00
£6,980.00
Further Information
gtvisionmicroscopesMeiji MT6820 100X-400X, Binocular Asbestos Microscope, Phase Contrast and Polarised Illumination

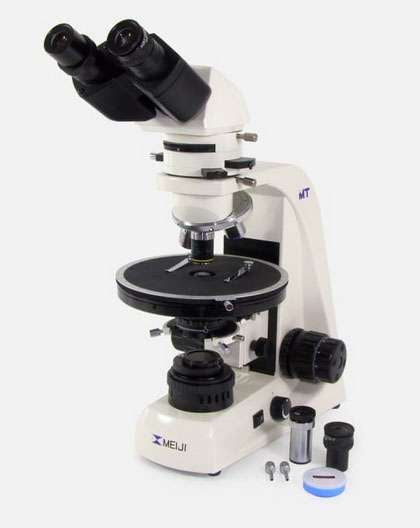

Meiji MT6820 asbestos microscope
Phase Contrast Test Slide for Asbestos Analysis
GT Vision LtdPhase Contrast Test Slide for Asbestos Analysis
Meiji MT6820 asbestos microscope
£6,980.00
£6,980.00

Meiji MT6830 Trinocular Asbestos Microscope

The MT6800 Series combo PLM – PCM (Polarized Light and Phase Contrast) microscopes are designed for asbestos fibre identification and counting applications. These microscopes comply with NIOSH 9002 Reference methods and NIOSH 7400 and OSHA ID 160 Reference methods.
These models use the phase contrast method for dispersion staining. Each model comes with Strain free Plan DIN brightfield POL objectives, rotatable stage with 360 degree graduations, POL/PHASE/Dispersion Staining Abbe condenser and built-in Koehler illuminator as standard equipment. The table below shows the features of each model.



















Head Trinocular
Eyepieces 12.5x eyepieces, one with a Walton Beckett reticle
Objectives 10x strain free, 10x dispersion staining, 40x phase contrast
Focus Mechanism Coarse and fine focus
Condenser Phase/Brightfield condenser
Illumination LED
For our full range of asbestos microscopes, please see asbestos microscopes

Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.

Request a quotation for bulk orders by emailing sales@gtvision.co.uk

If you have any questions about this model, complete the form below or email us at sales@gtvision.co.uk

- Because we supply microscopes from a wide variety of brands and manufacturers, we can offer expert advice on which microscope model is best suited for your application and budget without bias towards a particular brand.

- We provide tailor-built systems to match your specific requirements and budget.

- Expert support pre and post purchase.- For a full system solution, we also supply microscope cameras and software (again from a wide choice of brands).

- We can retro-fit cameras and illumination systems, including modern LED fluorescence illuminators, to most models and ages of existing microscopes. We also have in-house engineering capabilities for particularly unique requirements.
