GXM-AXB-5 Comparison Microscope for Forensics up to 40X Magnification Includes Digital Camera, Fully Equipped

SKU: 0996
£12,364.00
£12,364.00
Further Information

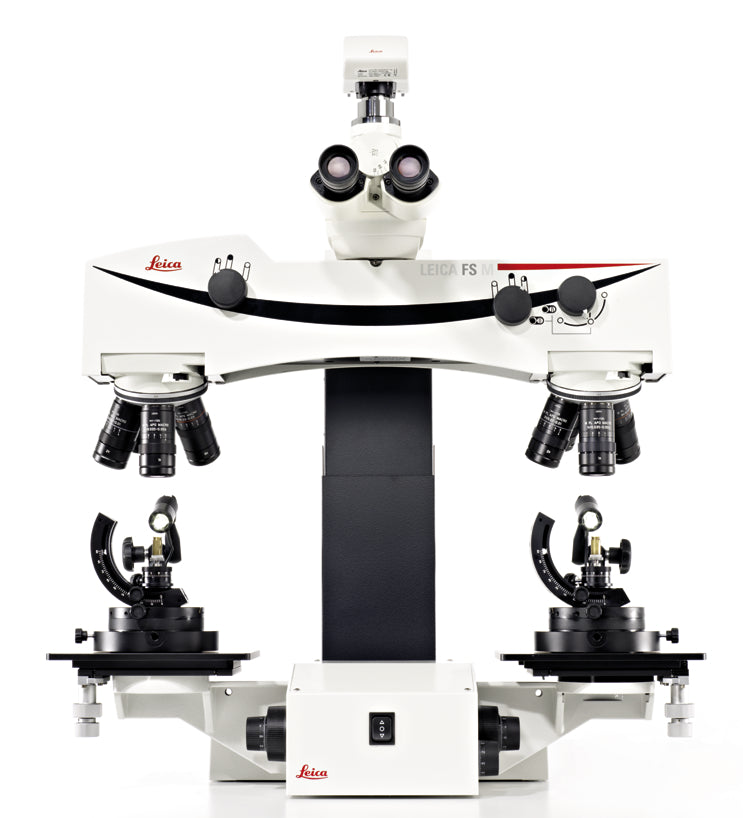

Leica FS M Forensic Microscope
gtvisionmicroscopesLeica FS M Forensic Comparison Microscope
AXB-5 comparison microscope
£12,364.00
£12,364.00

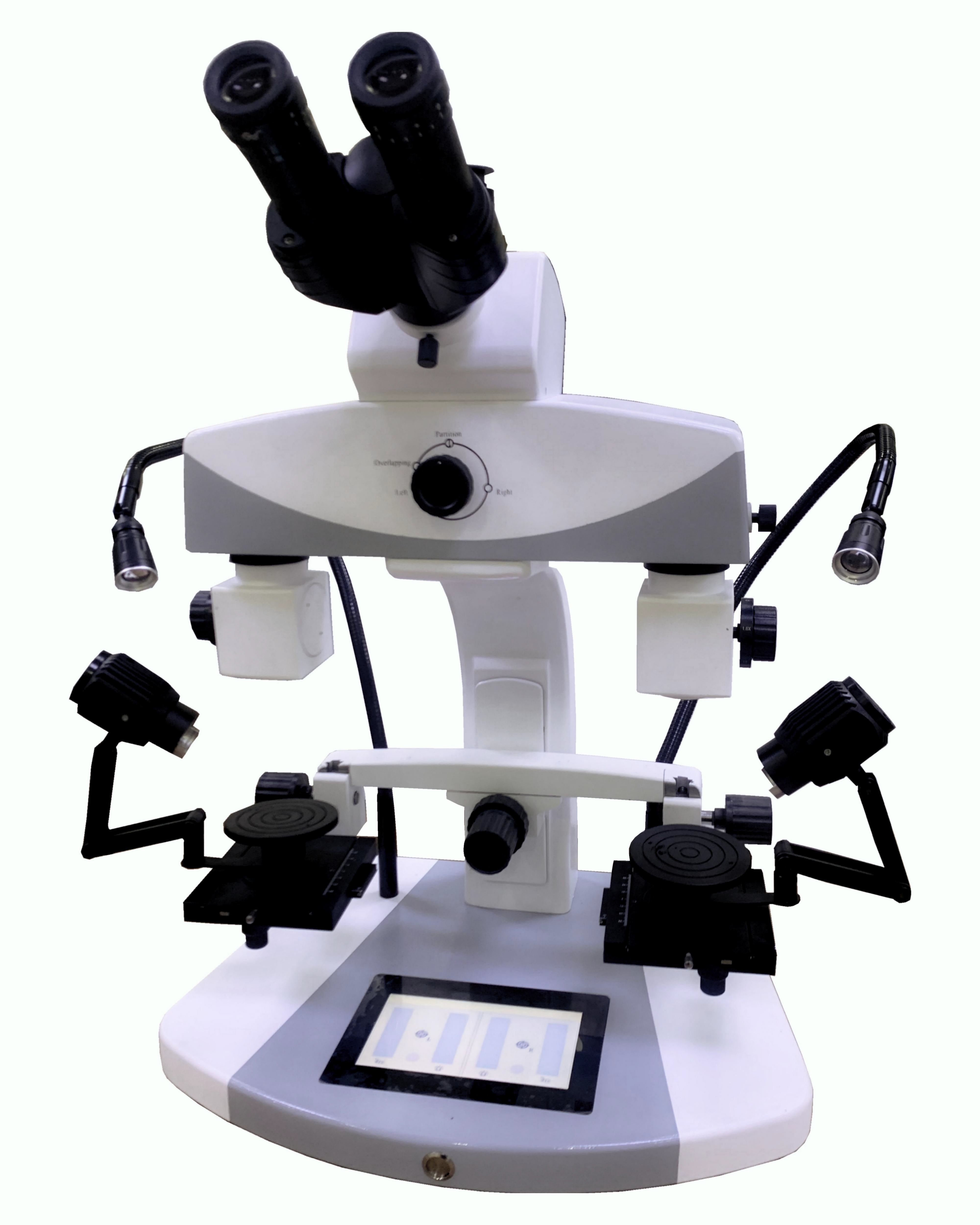

GXM – AXB-5 Comparison Microscope for Forensics up to 40X Magnification Includes Digital Camera, Fully Equipped with a Huge Range of Accessories Included.


A high quality microscope with integrated micro and macro viewing systems for the comparison, side-by-side of two objects.
This microscope is commonly used in forensics for examining ballistics, fibres, tool marks and other materials and also in archaeology, palaeontology and other collections and artefact identification studies.
This microscope is supplied complete with 2 sets of eyepieces and 4 magnification settings giving magnifications of 6.4x, 16x, 25x and 40x, wiht the standard 10x eyepieces, more than enough to encompass most examination tasks. If more magnification is needed, then 20x eyepieces are available.
The two tiltable stages include fine vernier movement controls and rotation for easy specimen manipulation. The long working distance of 100mm makes specimen mounting very simple. The microscope includes both conventional and cold light sources giving plenty of flexibility.
A range of other useful accessories such as bullet and cartridge holders can be mounted onto the microscope; it is designed to be versatile tool for the widest range of specimens.
This microscope includes our GXCAM-U3PRO-6.3 camera which presents a live image of the split image onto your comptuter and stores high resolution images and movies.

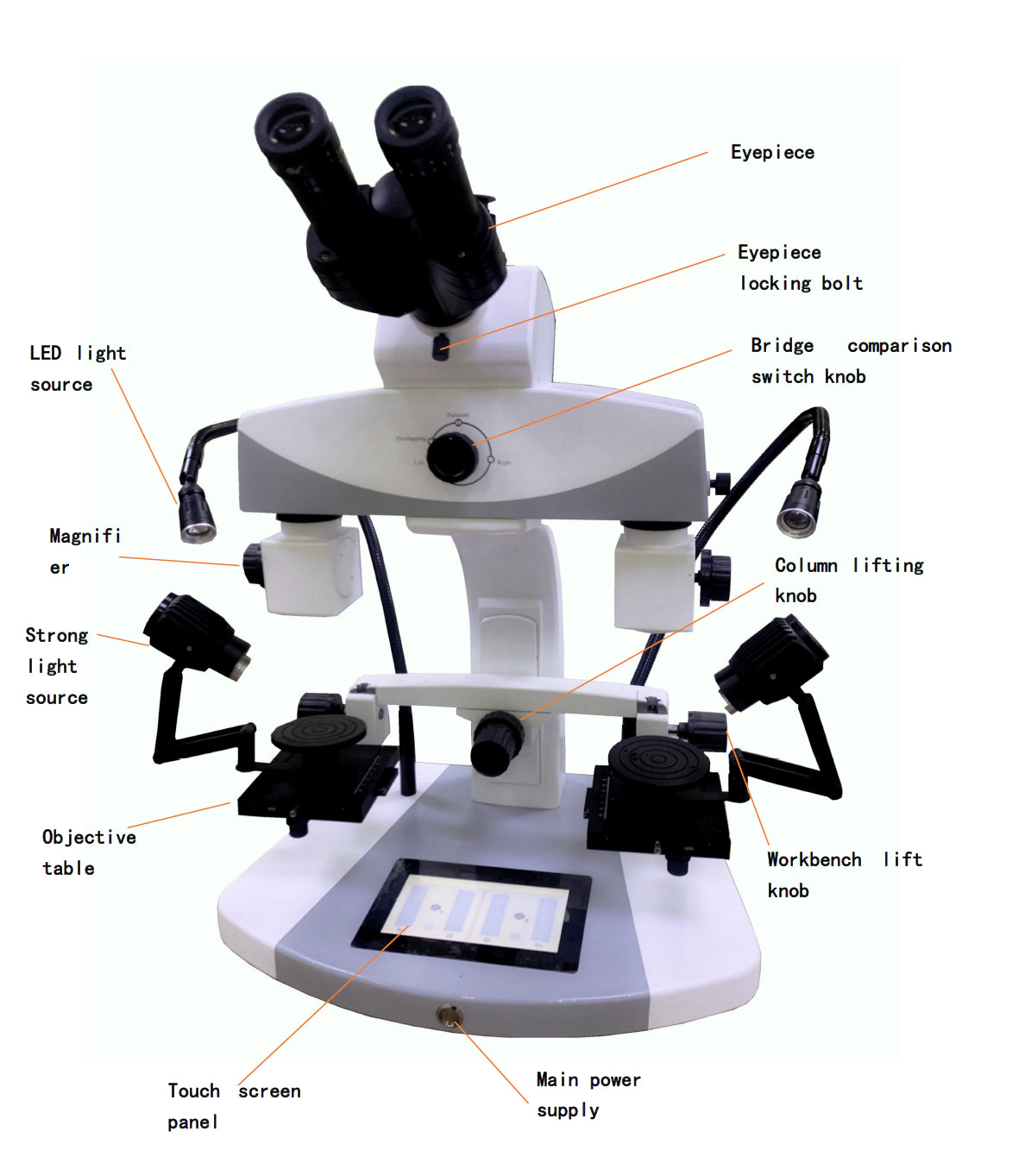

Microscope Type Comparison Microscope
Head Comparison head with splitter and merging facilities with adjustable overlap. Camera port with camera adapters
Eyepieces 10x/23mm, 20x/12.5mm
Magnification Settings 0.64x, 1.6x, 2.5x, 4x
Working Distance 100mm
Mechanical Stage 100 x 100mm, movement 54 x 54mm
Illumination LED. Polarized light – traces, scratch marks comparison Coaxial light – deep holes, smooth surface illumination Transmitted light illumination – photographic film, transparent or translucent objects comparison
Camera 5MP Digtal USB Microscope Camera with GXCapture Software
