UltraDIGI-AF-M High Resolution Autofocus Digital Inspection Microscope
Couldn't load pickup availability
UltraDIGI-AF-M High Resolution Autofocus Digital Inspection Microscope
All in one High Resolution Autofocus ergonomic system

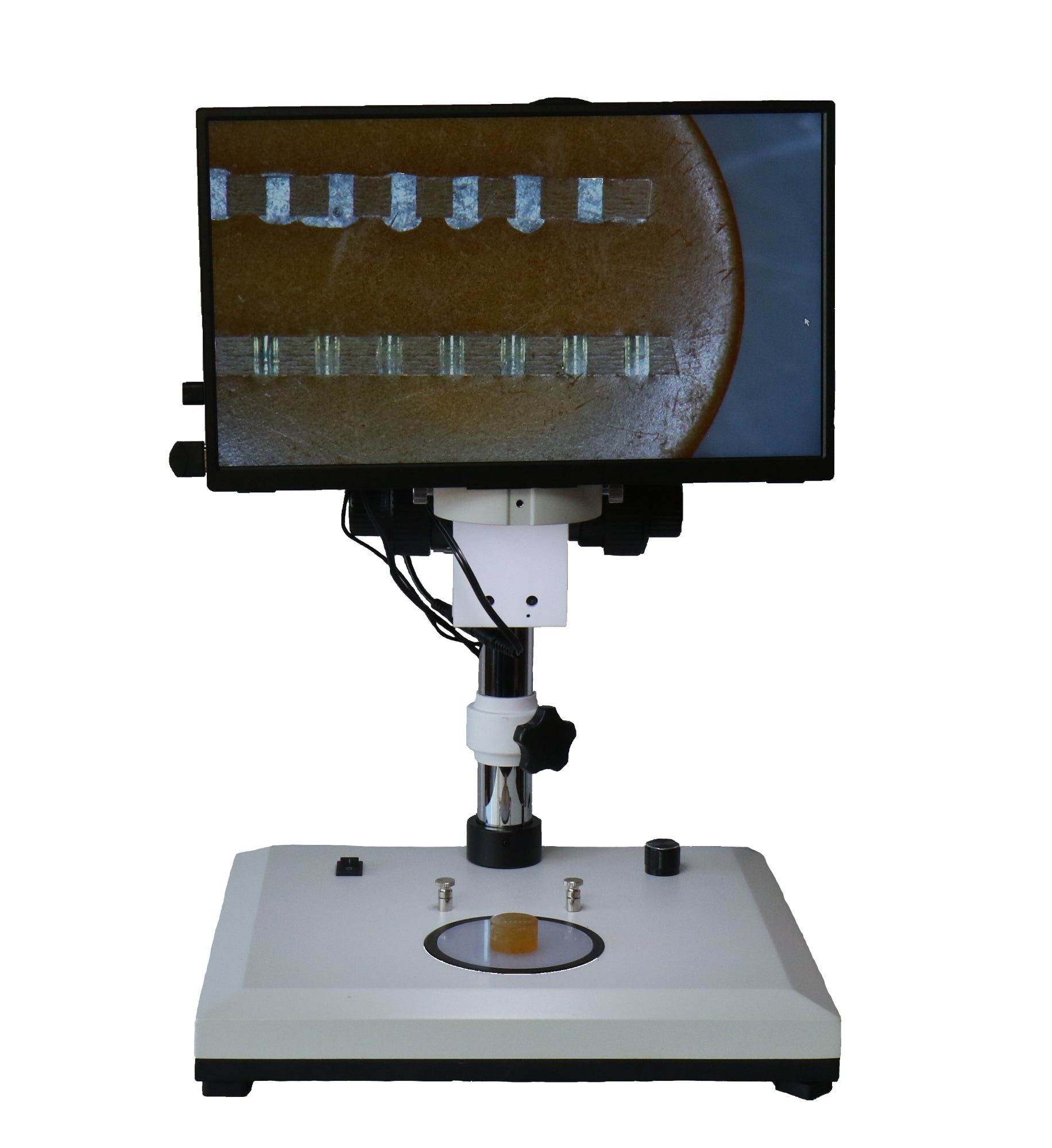

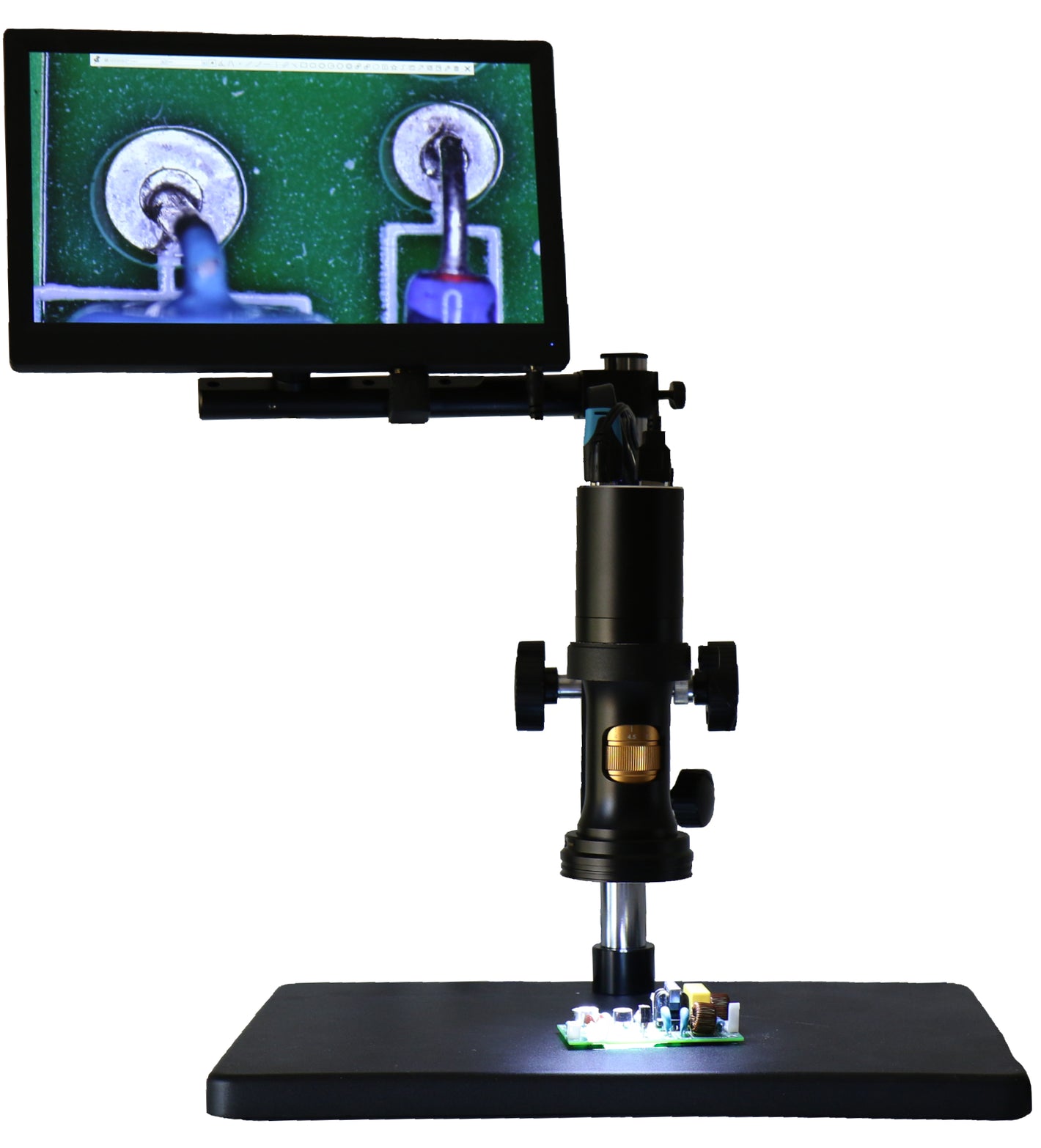

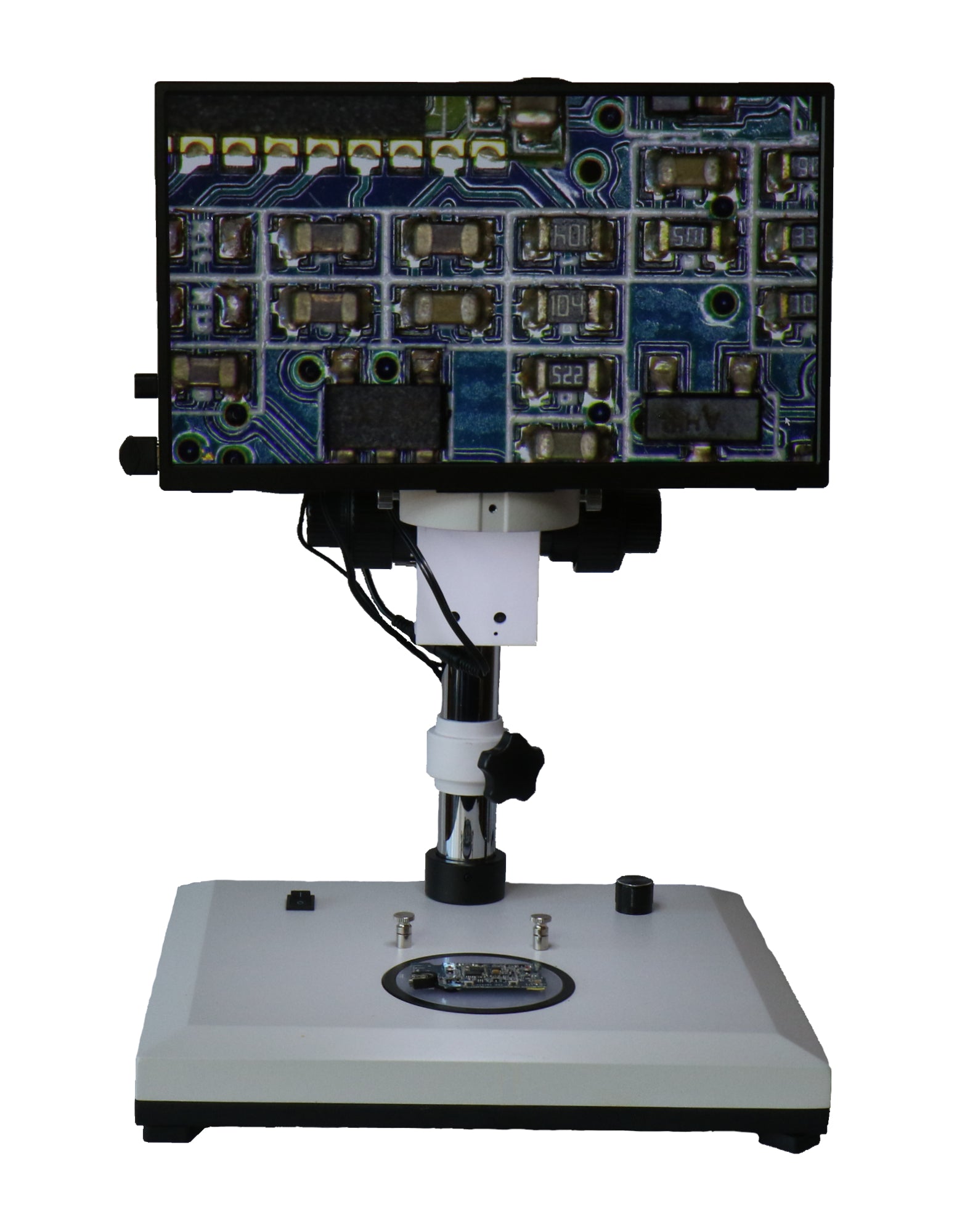

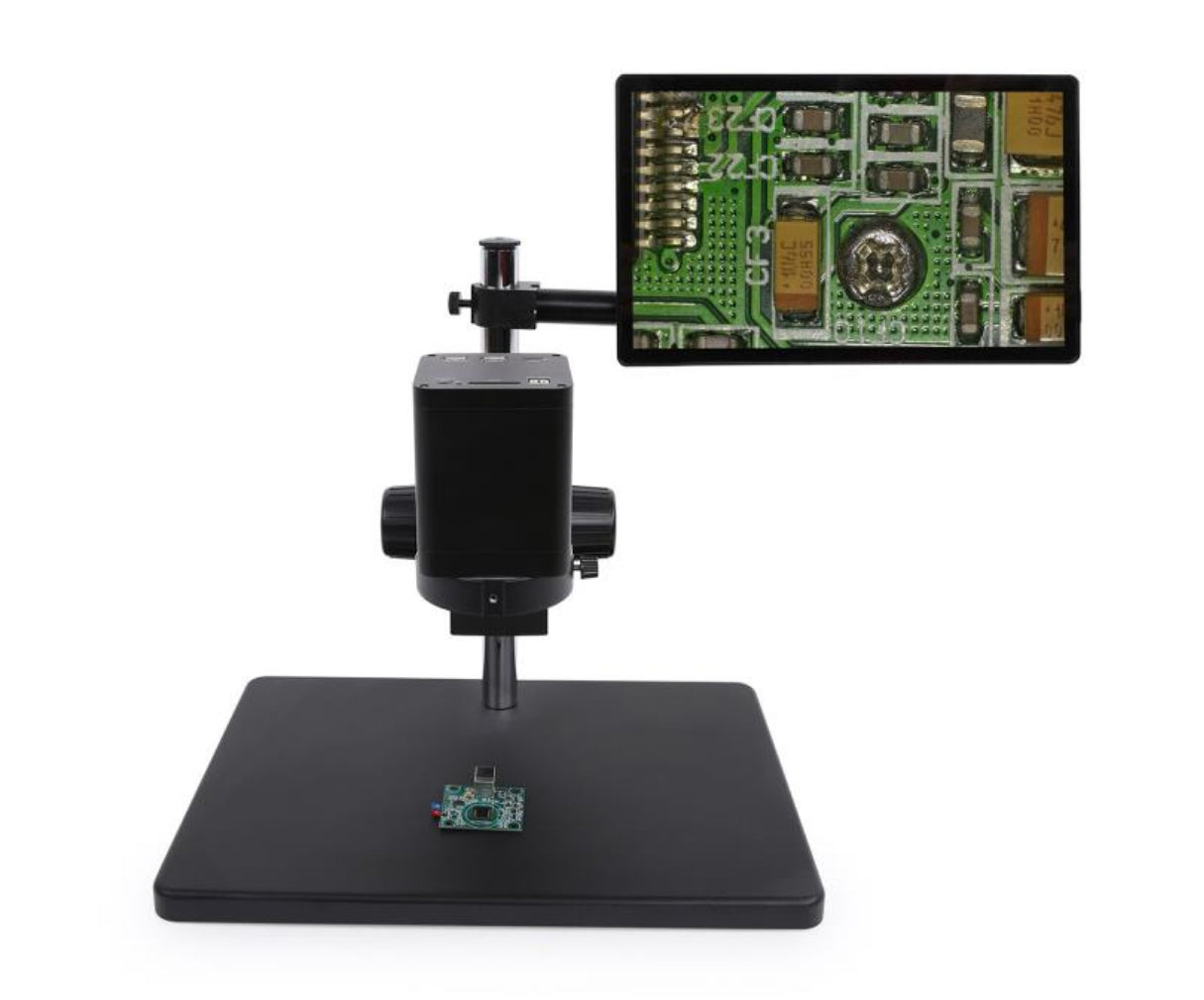

The ultraDIGI-AF is your all-in-one, autofocus digital inspection microscope.
This microscope comes with a 4K sensor and display, meaning you can see crisp detail at high resolution whether you’re capturing images or simply observing. You can view your work on the built-in screen or connect to an external display making inspections faster and more intuitive. And because the image is shown at eye level, ergonomics are improved and you can work comfortably for hours—no hunching over or strain.
The system comprises a digital zoom microscope body (18x zoom range), ringlight, stand and 4k screen. The microscope has built in software for capturing images and videos, optimising the image and taking measurements of the sample.
In standalone mode images can be saved to a USB memory stick or SD card.
Easy measurements
As the microscope is coded, the calibration automatically adjusts when changing the magnification, which makes taking measurements of the sample simple and fast. Changing magnification happens at the click of a button on the software!
Large working distance
The ultraDIGI-AF microscope has a large working distance of 250mm, which gives plenty of room under the microscope for working on the sample.
Standalone or PC operation

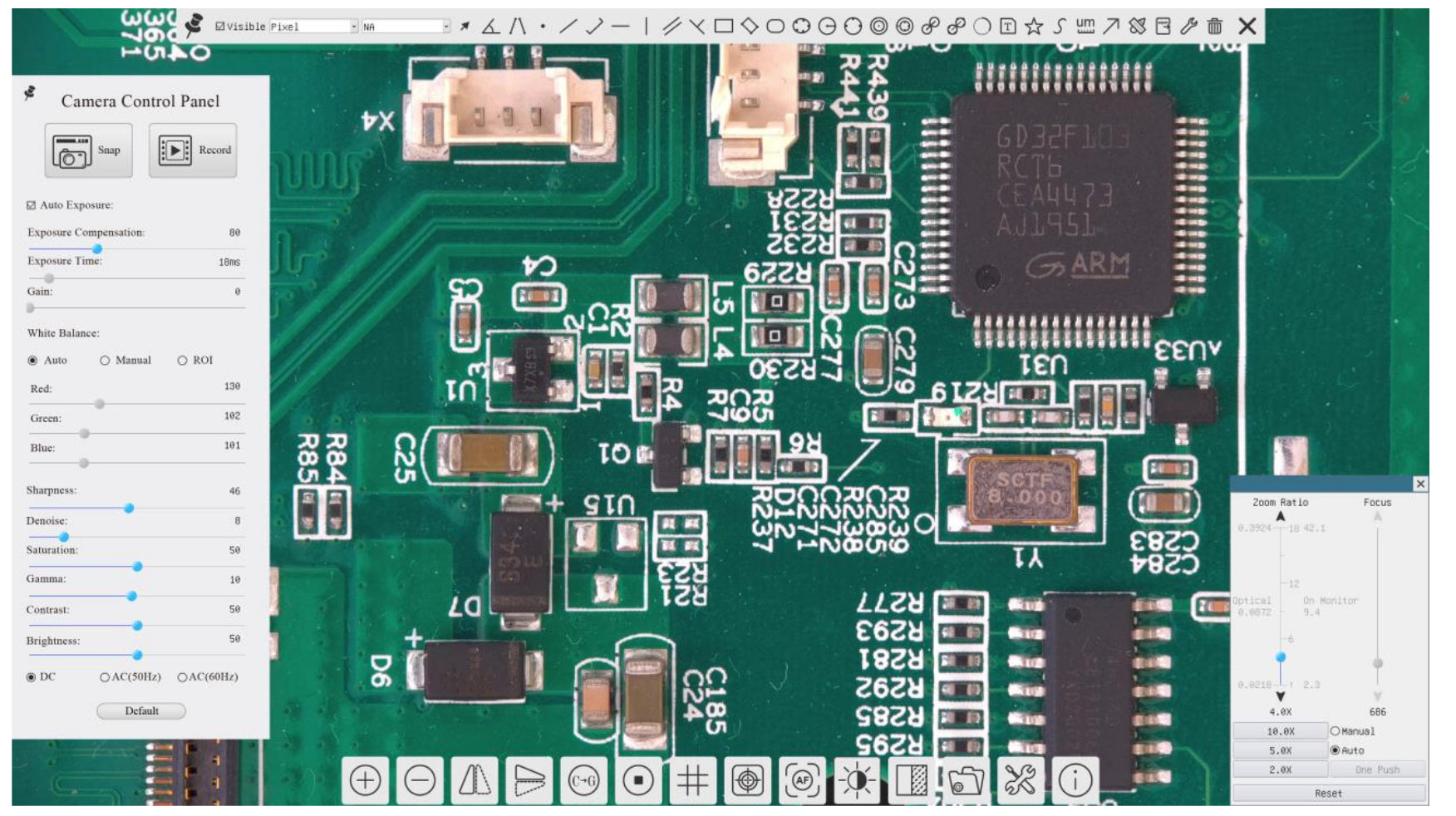

For more involved work, the microscope can connect to a PC or Mac. The camera software enables the user to capture and optimise images, capture videos, take measurements of the sample, add annotations, capture high dynamic range or extended depth of focus images etc.
Fine focus stand for precise applications
For precise work, the microscope is supplied with a coarse and fine focus stand. This makes it possible to exactly focus in on the specific area of interest in the sample.
Stand options
The ultraDIGI-AF-M autofocus digital microscope is also available on boom arm and articulated arm stands. Please contact us for details.
