GXM-XJL17AT Inverted Materials Microscope, 100X - 600X, Routine and Research
Couldn't load pickup availability
GXM-XJL17AT Inverted Materials Microscope, 100X - 600X, Routine and Research

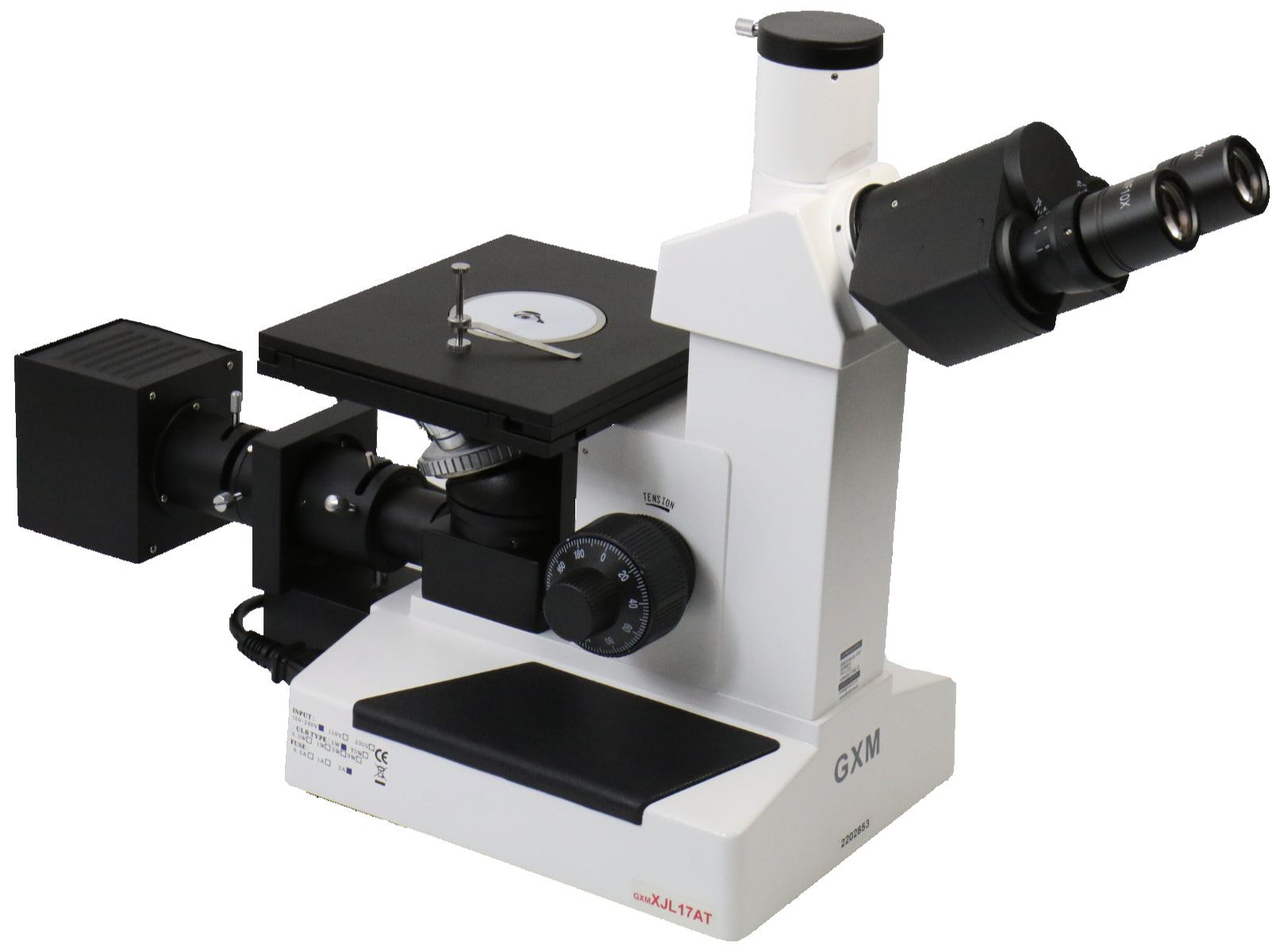

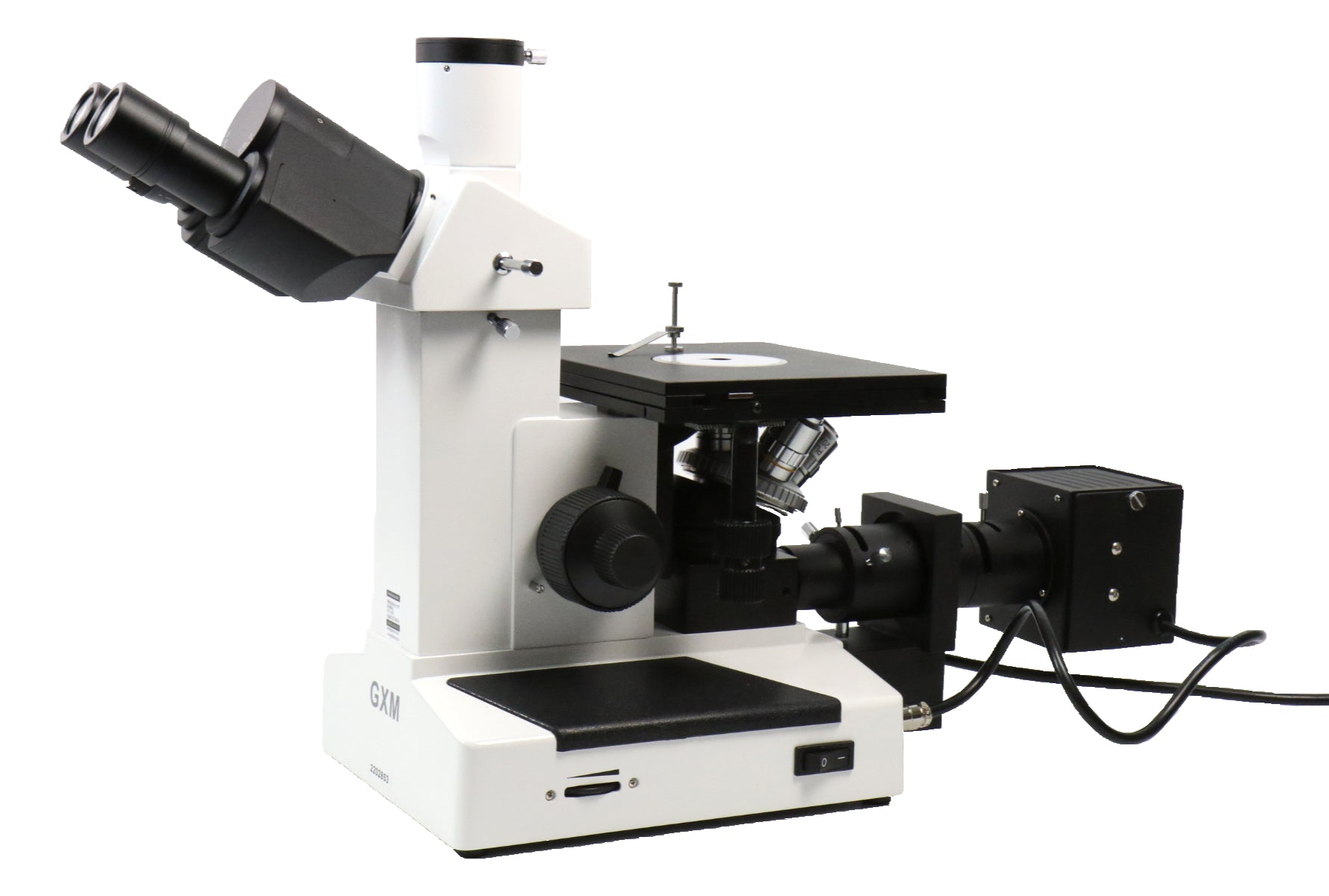

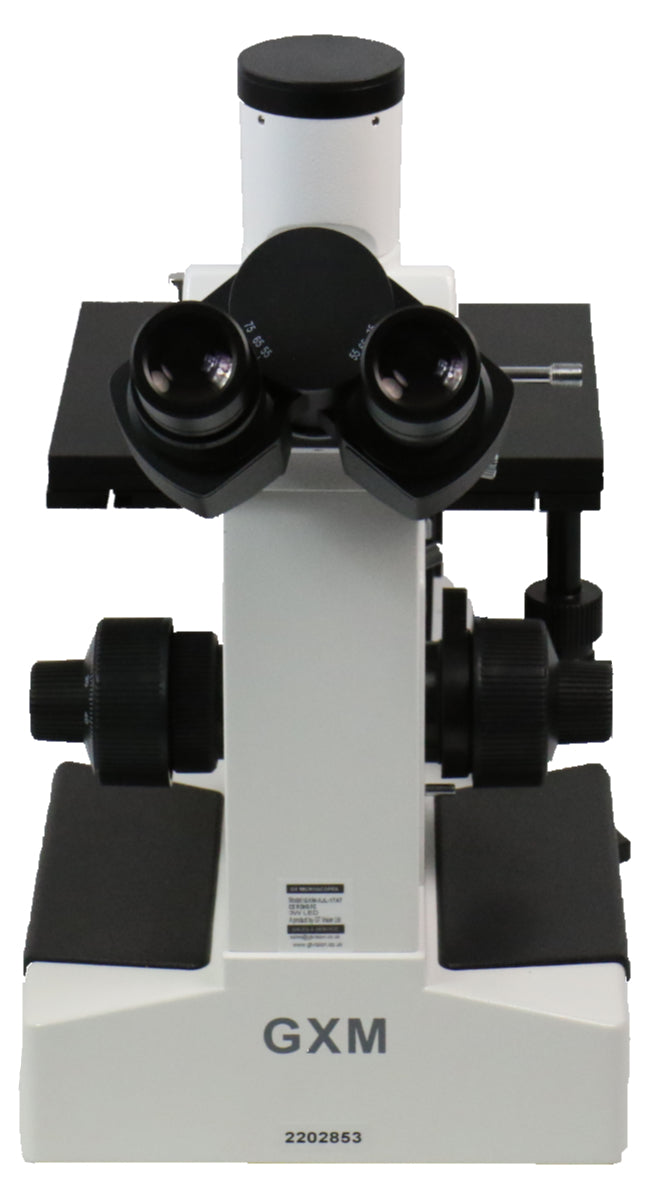

One of GX Microscopes most popular microscopes, the GXMXJL17AT inverted materials microscope is simple to use, especially where you need to examine many specimens with frequent changes of polished ‘micros’. The inverted microscope means that each successive specimen is immediately in focus and it is also very useful for large specimens that cannot fit under an upright microscope model. The microscope is equipped with a trinocular head ready for the attachment of a digital camera.
The GXMXJL17AT inverted materials microscope includes a full set of high quality plan achromatic metallurgical objectives mounted under the stage. The focussing tension can be adjusted and a focus lock protects the objectives from damage. Illumination is provided from an LED illuminator with adjustable intensity, field and aperture diaphragms and set of Y, G, B and diffusion filters.
This microscope is built on GX Microscopes’ highly robust XJL inverted series microscope frame which provides a stable and durable platform suitable for the most demanding of applications.
Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
Download a brochure on the XJL17AT inverted materials microscope here
Our full range of inverted materials microscopes can be seen here- inverted materials microscopes

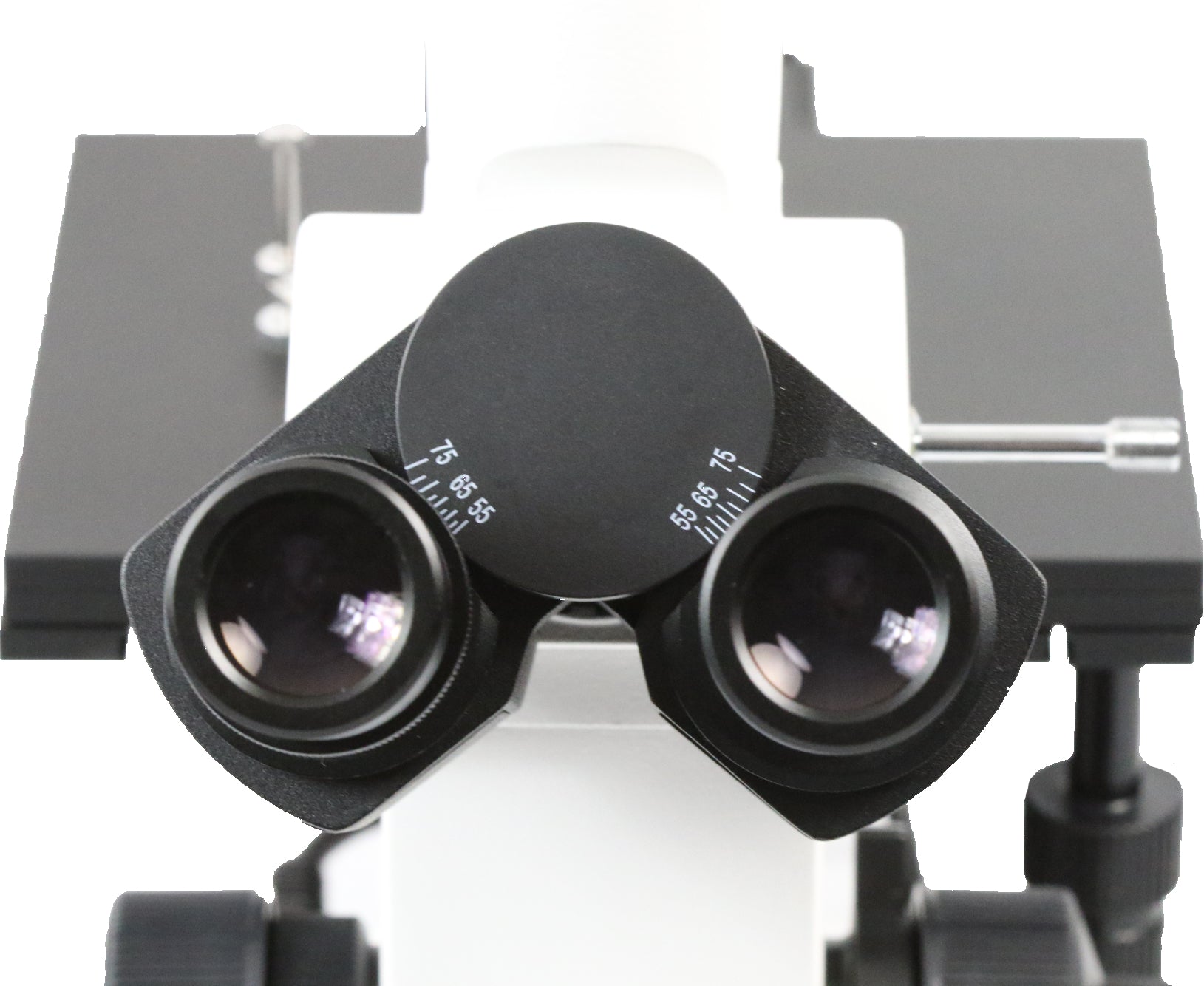

| Head | Trinocular Head with interpupillary distance adjustment |
| Eyepieces | 10X Widefield Eyepieces |

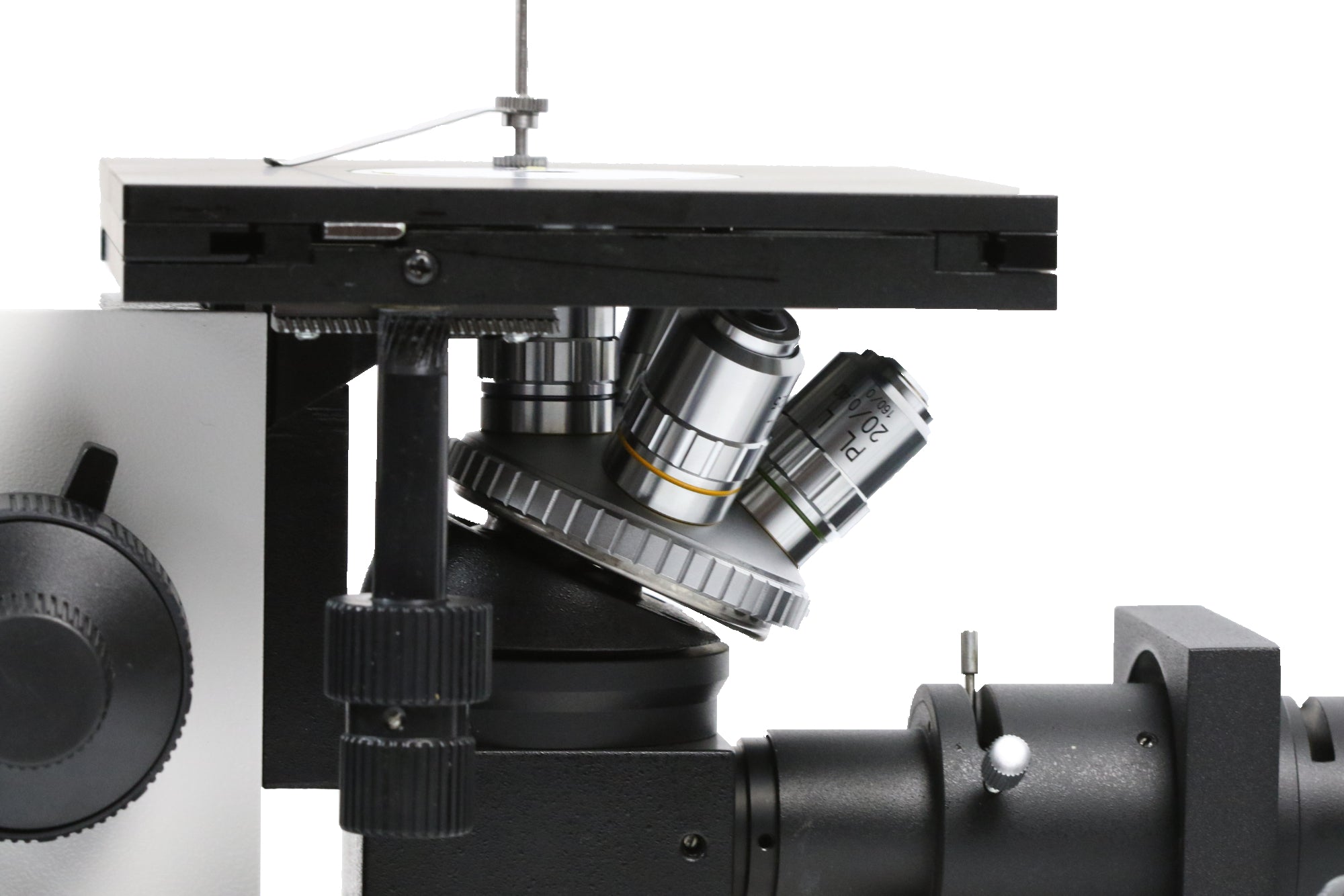

| Objectives | 4 Long Working Distance Plan Achromatic Objectives, 10X (WD 8.8mm), 20X (WD 8.6mm), 40X (3.7mm) and 60X (WD 1.3mm) |

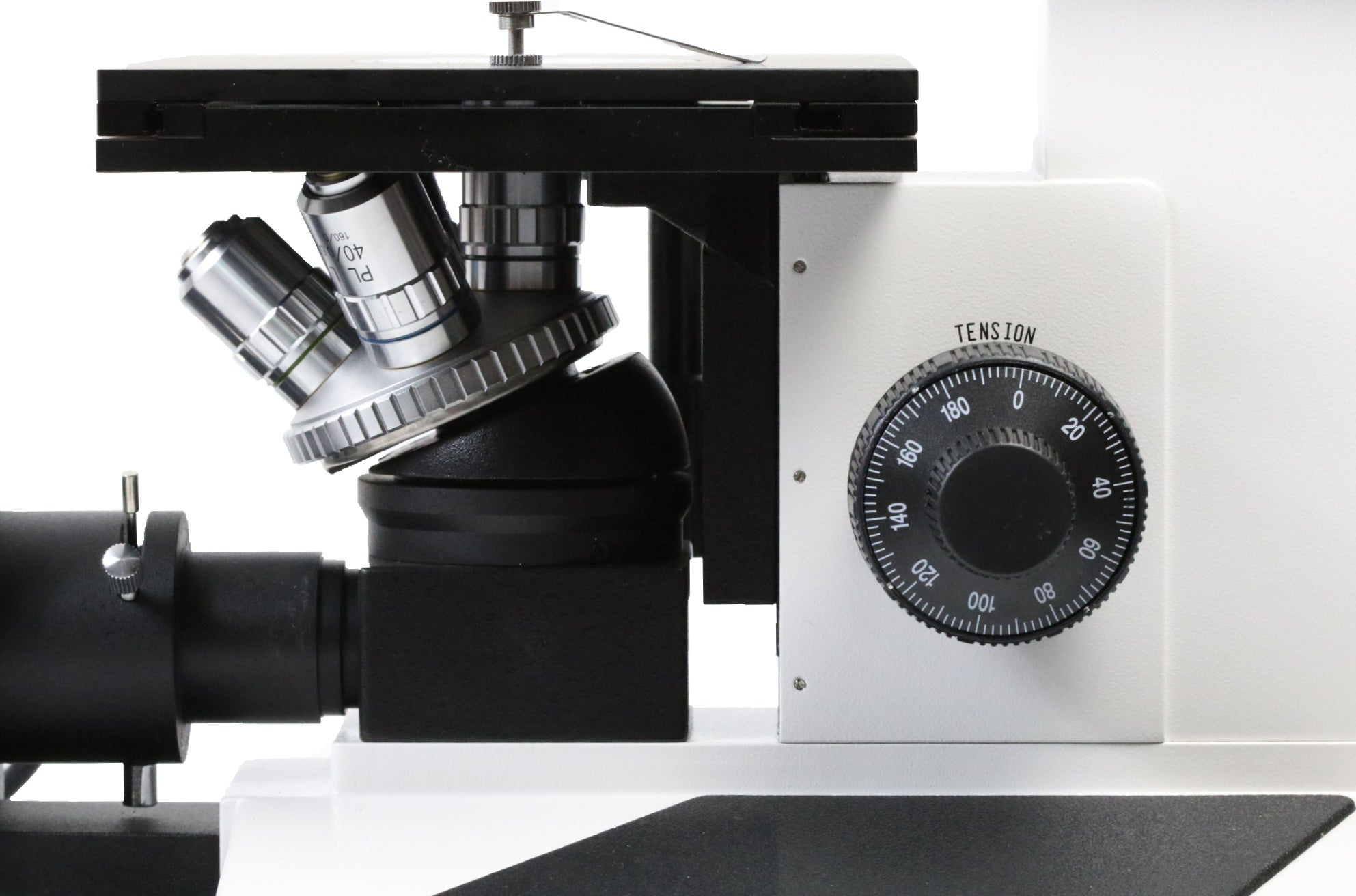

| Stand & Focus Mechanism | Substantial Stand with Coarse/Fine Focus, Adjustable Tension and Limit Stopper |

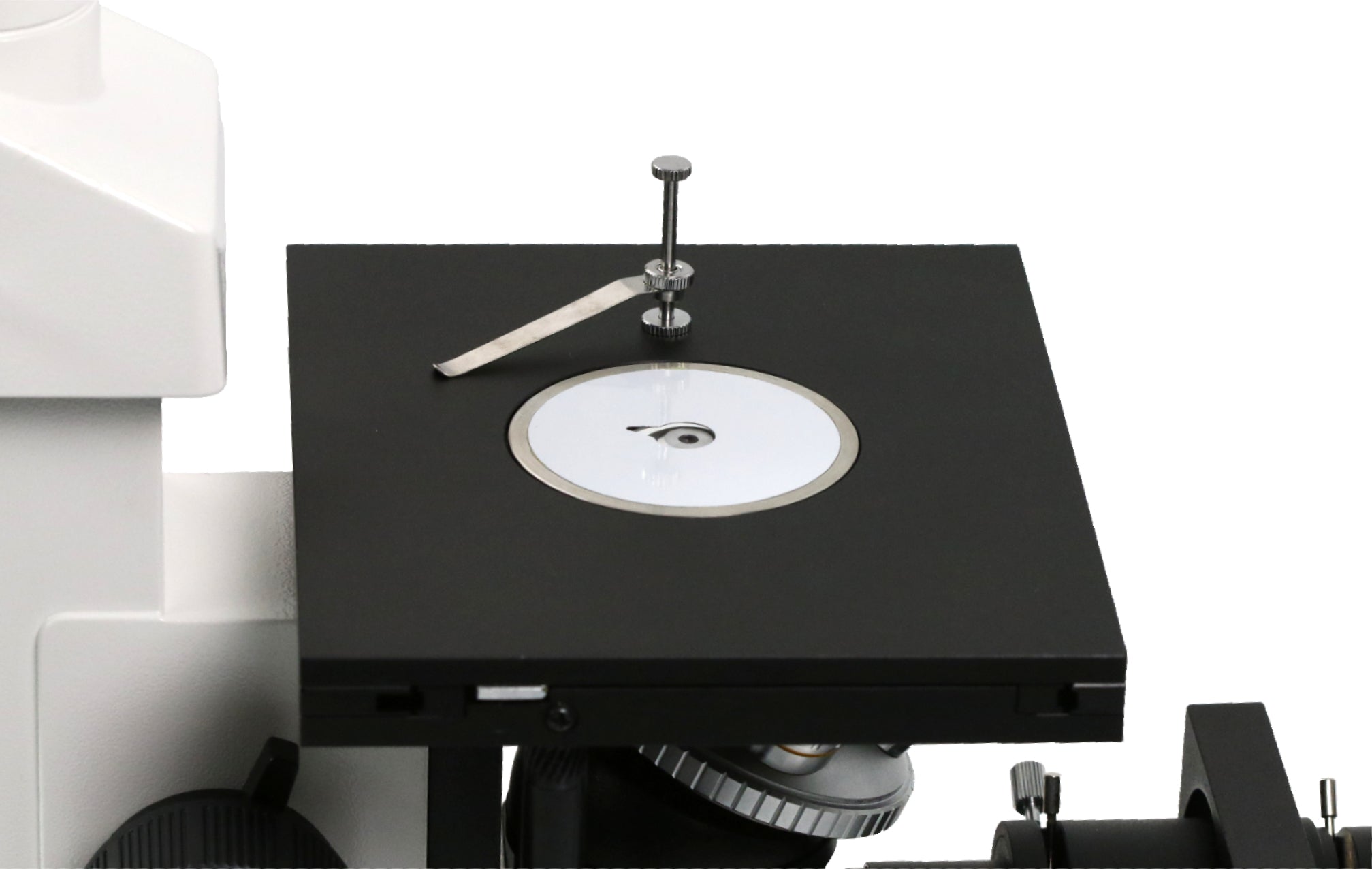

| Stage and Condenser | Double Layer Mechanical Stage, 180mmx150mm (movement range 15mm x 15mm) |
| Illumination | Reflected LED Illumination. Also included are; Field and aperture diaphragms, Y, G, B Frosted Filters |
|
