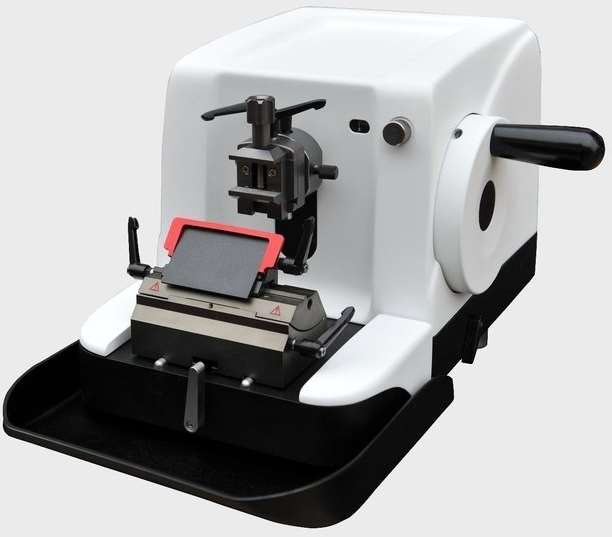

OS-315 Rotary Microtome is ideal for most routine histology, biological and industrial applications
Couldn't load pickup availability
In order to ensure top quality performance and precision in the preparation of microtome sections the OS-315 features key component parts from Japan, and due to this high precision and stability you can be sure that it will deliver exact reproducable section quality.
Product Specifications:
• A high precision specimen feed
• A universal cassette clamp and standard specimen clamp
• The dual fail-safe control system ensures safe and reliable use for changing the blade or tissue block.
• The special blade holder, conveniently allows the use of a disposable blade for safer use. This additionally helps the durability of the disposable blade.
• Smoothly running handwheel which can be locked in any position or highest position
• Spacious, integrated section waste tray
Technical Data:
• Section thickness range: 0- 60um
Setting values:
From 0-2μm in 0.5μm –increments
Form 2-10μm in 1μm -increments
Form 10-20μm in 2μm -increments
Form 20-60μm in 5μm -increments
• Horizontal specimen stroke:28 mm
• Vertical specimen stroke: 60mm
• Precision error: ± 5%
• Sample orientation: 8°along the X-Y-axis, rotable 360°
• Maximum section size: 50 × 45mm
• Dimensions incl. tray (L/T/H): 300mm（L）X 570mm（W）X 270mm（H）
• Net weight: 34kg
Accessories included:-
Blade Carrier, Waste Tray, 2 types of clamp, Tissue Cassettes
Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.
Request a quotation for bulk orders by emailing sales@gtvision.co.uk
If you have any questions about this model, complete the form below or email us at sales@gtvision.co.uk
- Because we supply microscopes from a wide variety of brands and manufacturers, we can offer expert advice on which microscope model is best suited for your application and budget without bias towards a particular brand.
- We provide tailor-built systems to match your specific requirements and budget.
- Expert support pre and post purchase.- For a full system solution, we also supply microscope cameras and software (again from a wide choice of brands).
- We can retro-fit cameras and illumination systems, including modern LED fluorescence illuminators, to most models and ages of existing microscopes. We also have in-house engineering capabilities for particularly unique requirements.
