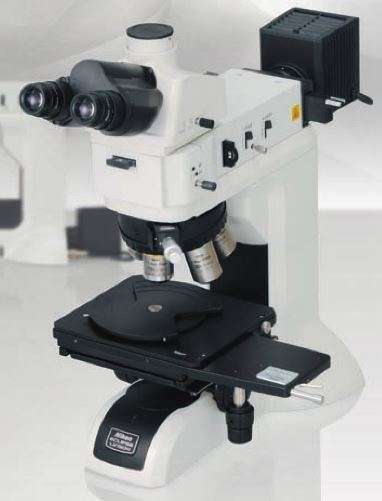

Nikon LV150NL Upright Materials Microscope 5X-1000X
Couldn't load pickup availability
(PLEASE NOTE THE IMAGES SHOW DIFFERENT CONFIGURATIONS NOT NECESSARILY THE SAME AS THE INDICATIVE PRICE - PLEASE ASK FOR A PRECISE QUOTATION)

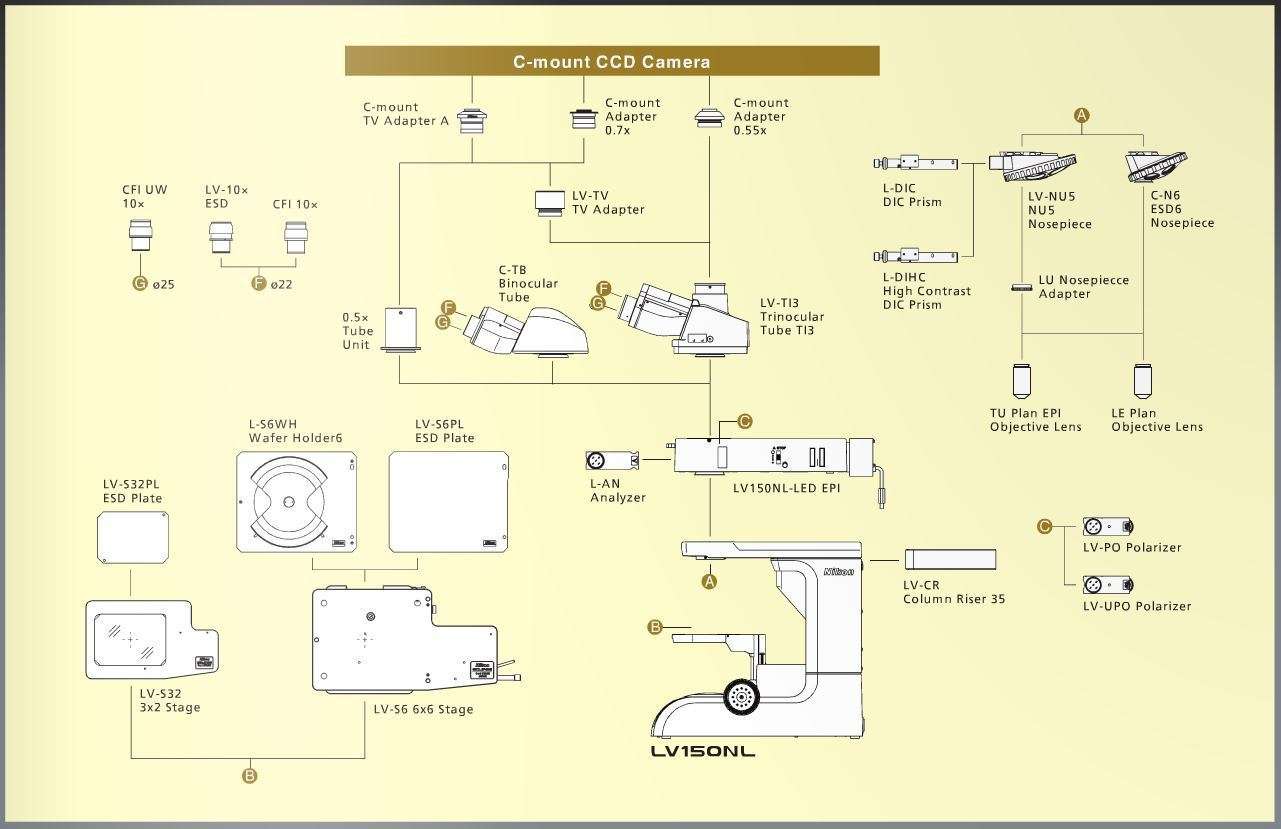

In this configuration:
- Pair LV10x ESD EYEPIECE LENS 10x
- C-Mount TV Adapter 0.55x
- Y-TV55 TV Tube For C-0.55X Relay Lens
- C-TF Trinocular Tube F
- LV150NL-LED EPI Epi-illuminator
- ECLIPSE LV150NL
- UK POWER CORD
- C-N6 ESD Sextuple Nosepiece ESD

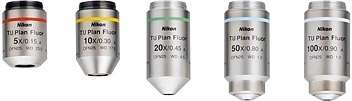

- CFI MTI LE Plan Epi 5x N.A. 0.10, W.D. 31mm
- MTI LE Plan Epi 10x N.A. 0.25, W.D. 13mm
- MTI LE Plan Epi 20x N.A. 0.40, W.D. 3.6mm
- MTI LE Plan Epi 50x N.A. 0.75, W.D. 0.5mm
- MTI LE Plan Epi 100x N.A. 0.90, W.D. 0.31mm
- LV-S32 3"x2" Stage with Glass Plate
An advanced optical system with LED illumination
A manual, nosepiece type microscope which meets the various needs of observation, inspection, research and analysis across a wide range of industrial fields. Higher NA and a longer working distance than ever before means superior optical performance and efficient digital imaging.

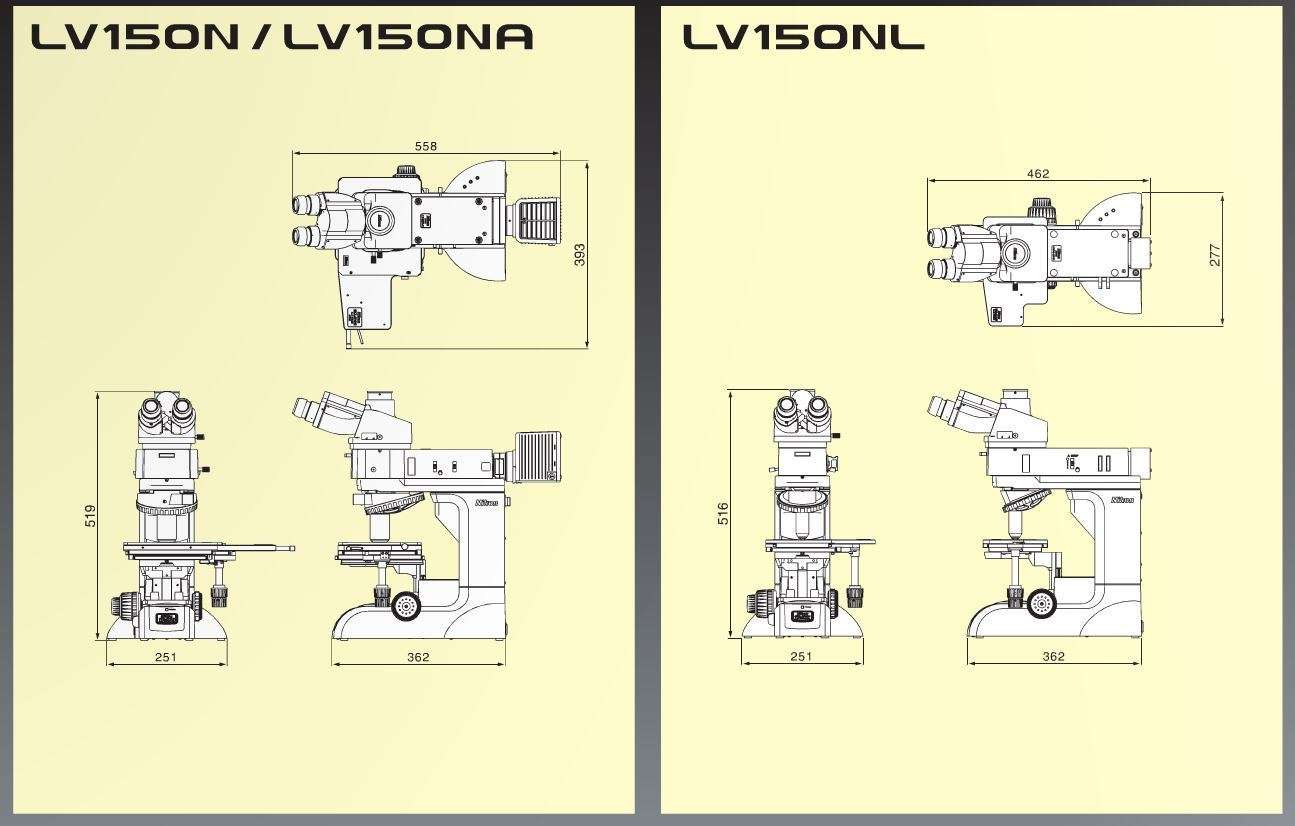

Max. sample size: 150 x 150 mm
Key benefits
- Modularized microscope body applicable with various observations and tasks
- Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
- Easy digital imaging
- ECLIPSE LV150NL with LED illumination
Key Features
Microscope type
- Dedicated reflected illumination models
- Manual type
ECLIPSE LV150NL with LED illumination
An environmentally friendly version of the LV150NL which consumes less power through long-life LED illumination is also available.

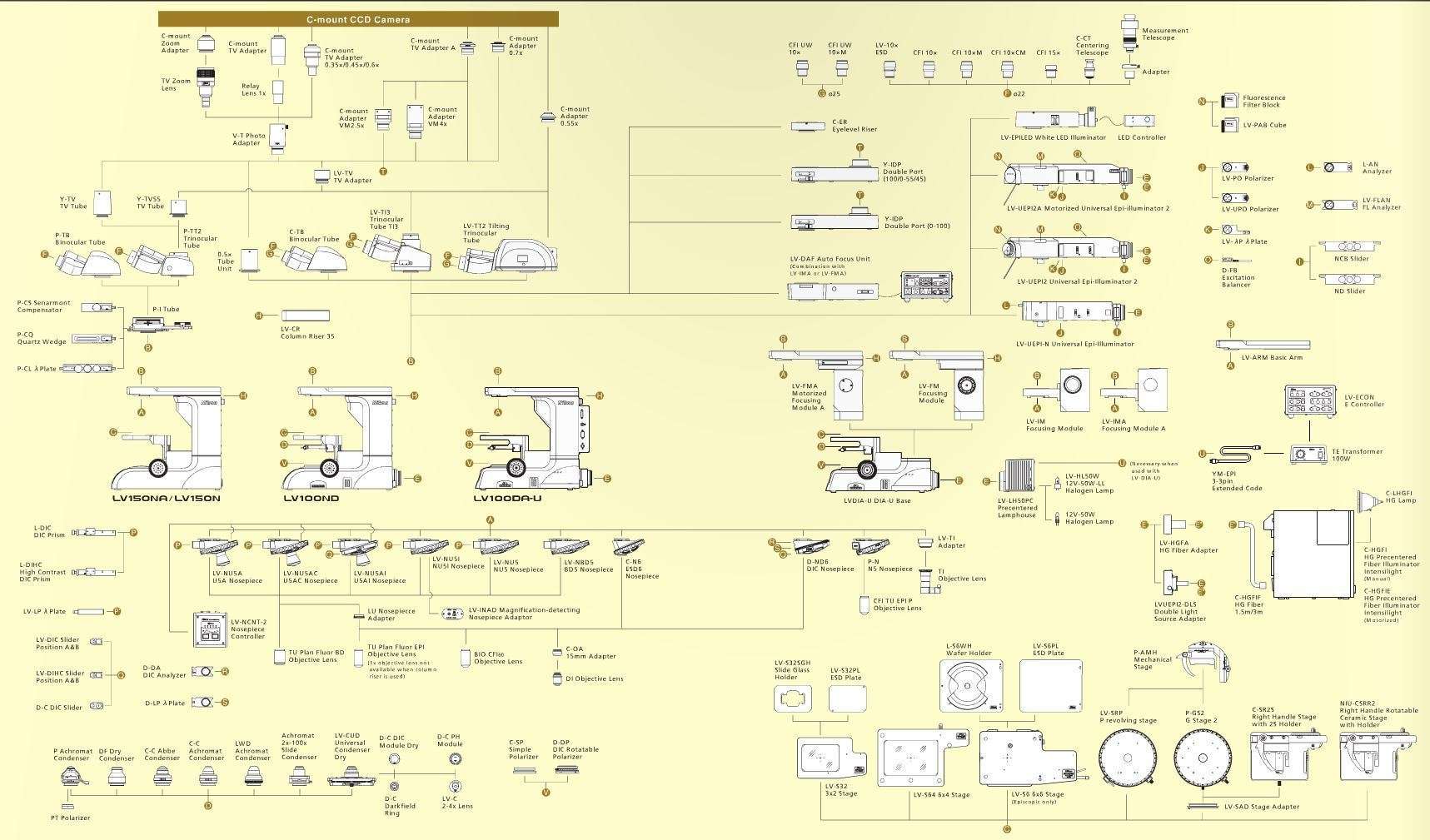

Modularized microscope body applicable with various observations and tasks

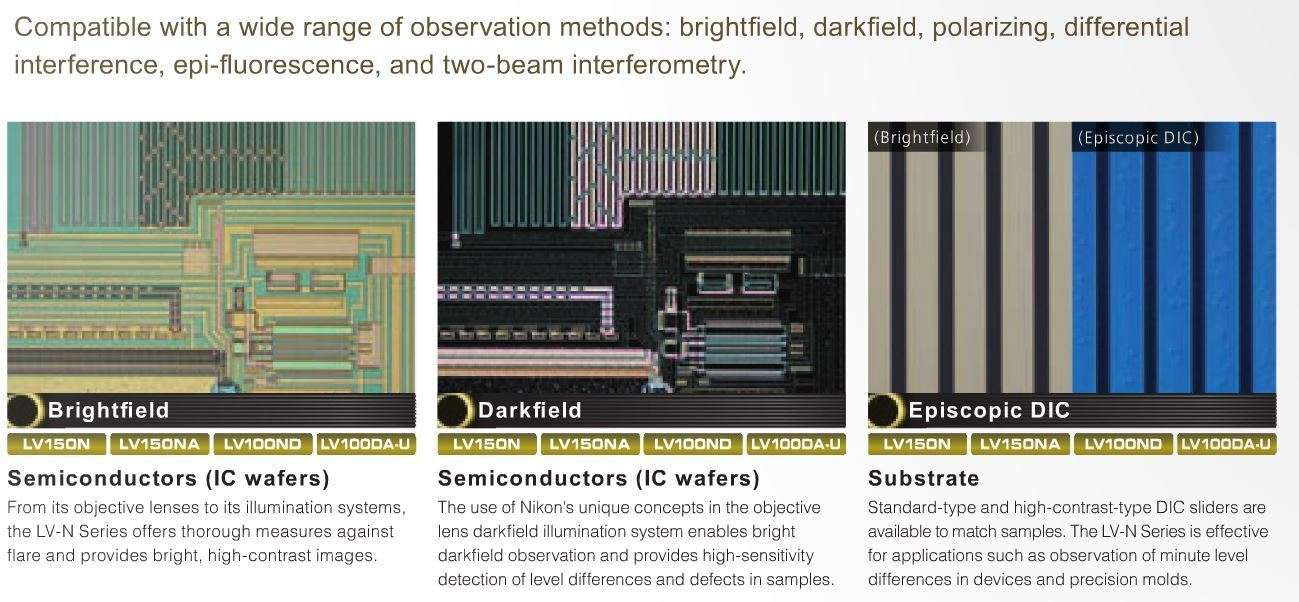

Compatible with brightfield, darkfield, simple polarizing, DIC, epifluorescence and two-beam interferometry observations.
It supports diverse and advanced research, analysis and inspection.

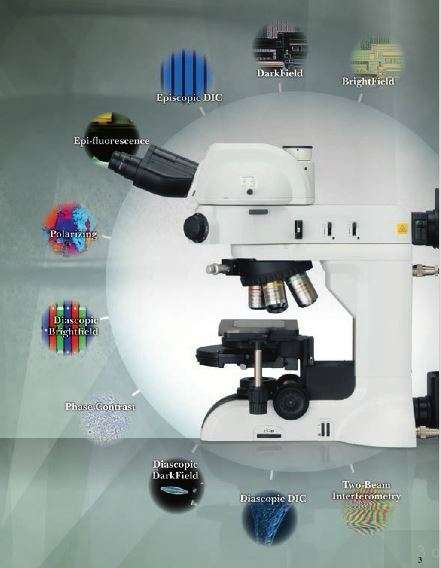

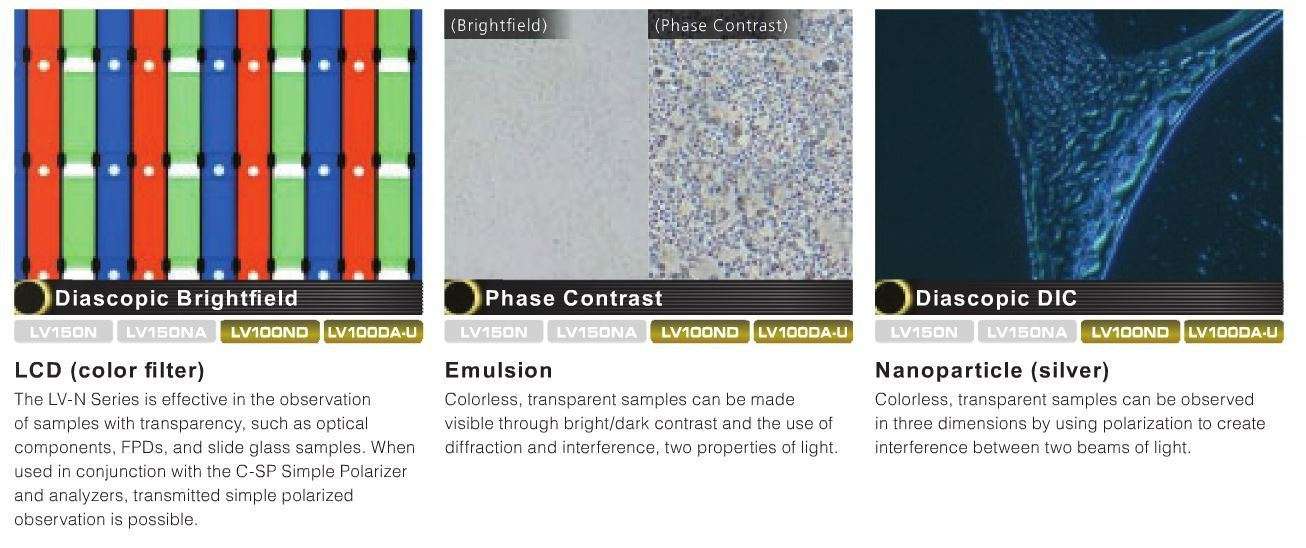

Compatible observation methods:
- Brightfield
- Darkfield
- DIC
- Fluorescence
- Polarizing
- Phase Contrast
- Two Beam Interferometry
Compatible stages
- LV-S32 3x2 stage (Stroke: 75 x 50 mm with glass plate)
*Can be fitted with LV-S32SPL ESD plate - LV-S6 6x6 stage (Stroke: 150 x 150 mm)
*Can be fi tted with LV-S6WH wafer holder / LV-S6PL ESD plate - LV-SRP P revolving stage
- P-GS2 G stage 2 (Used with stage adapter LV-SAD)

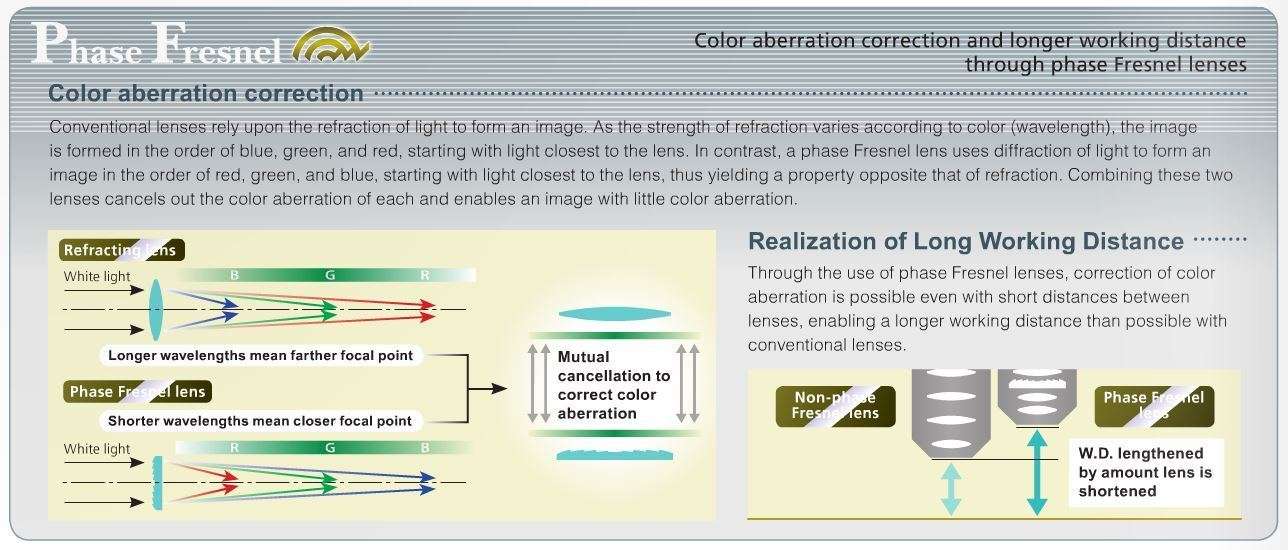

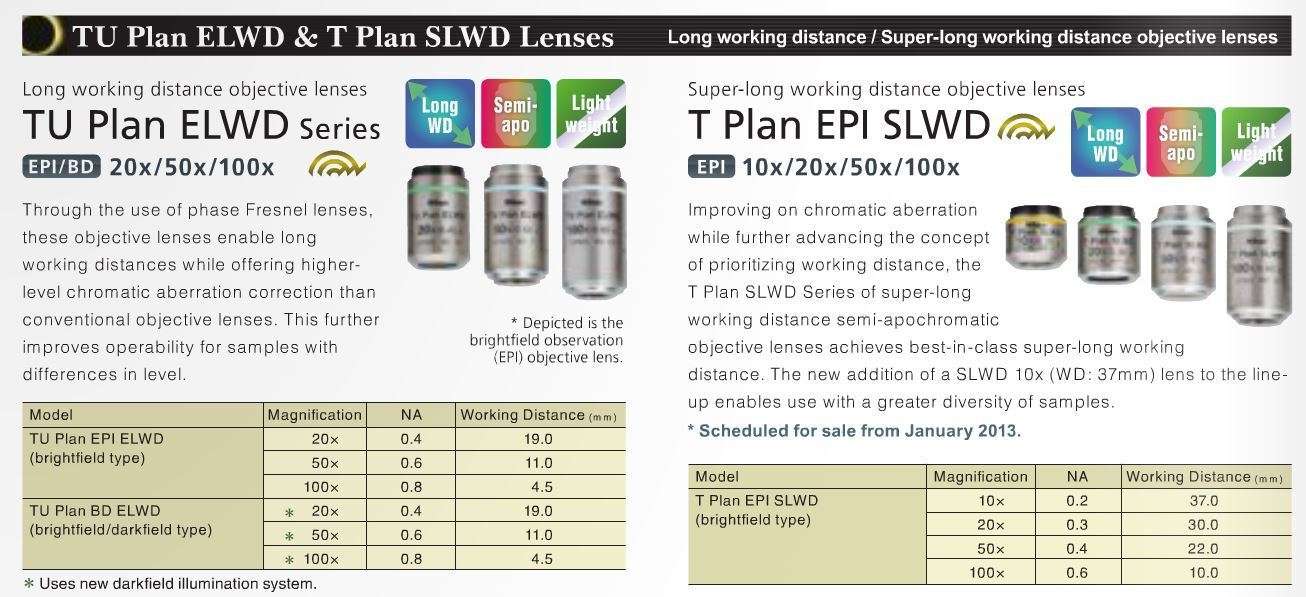

Newly developed CFI60-2 series objectives
Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
CFI60-2 series offers higher NA and longer working distances than ever before.
 |
| Objectives for brightfield observation (epi) |
