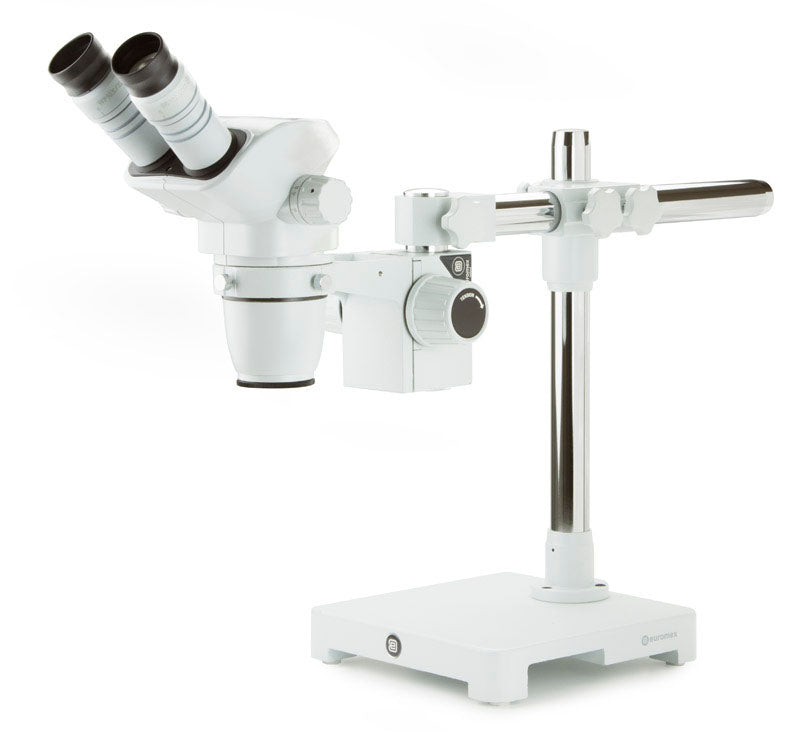

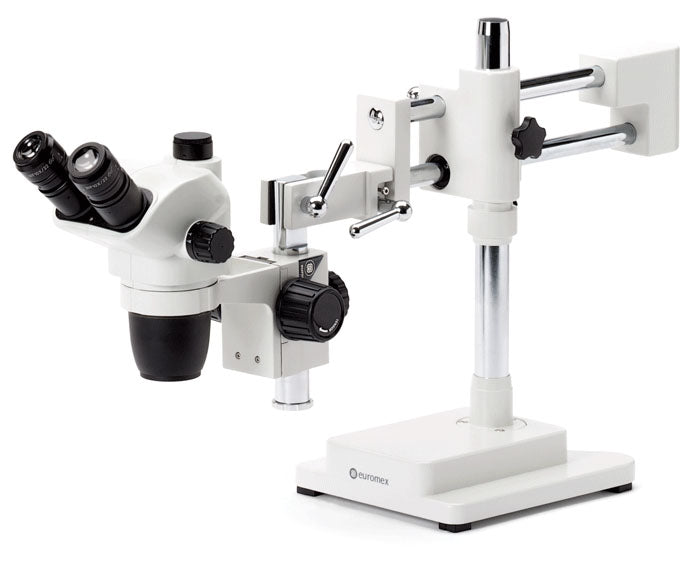

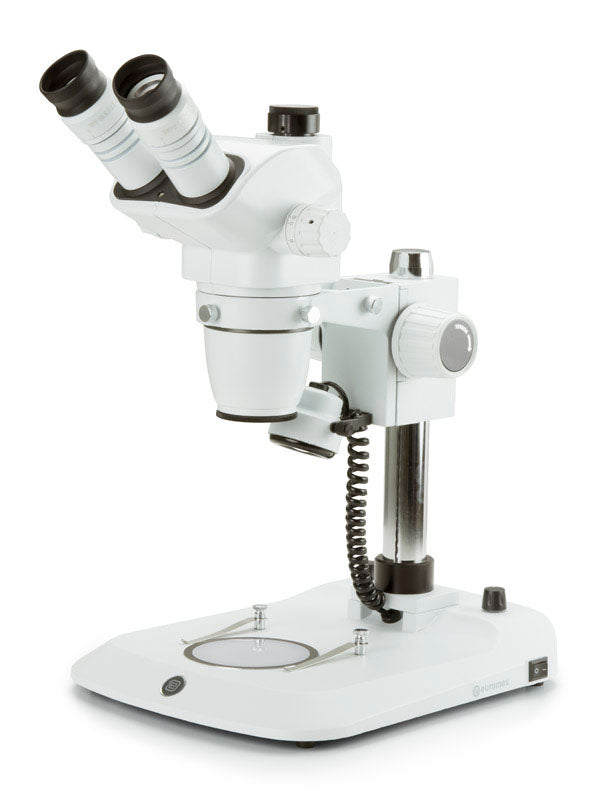

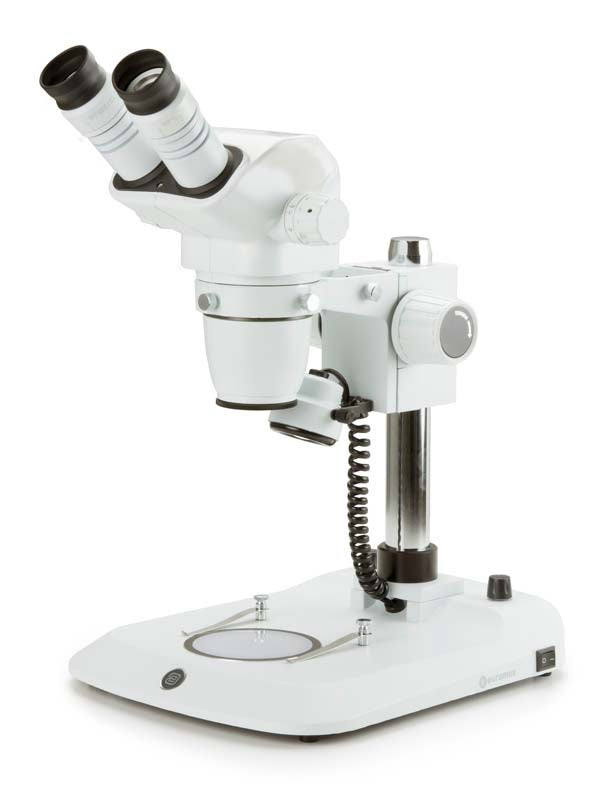

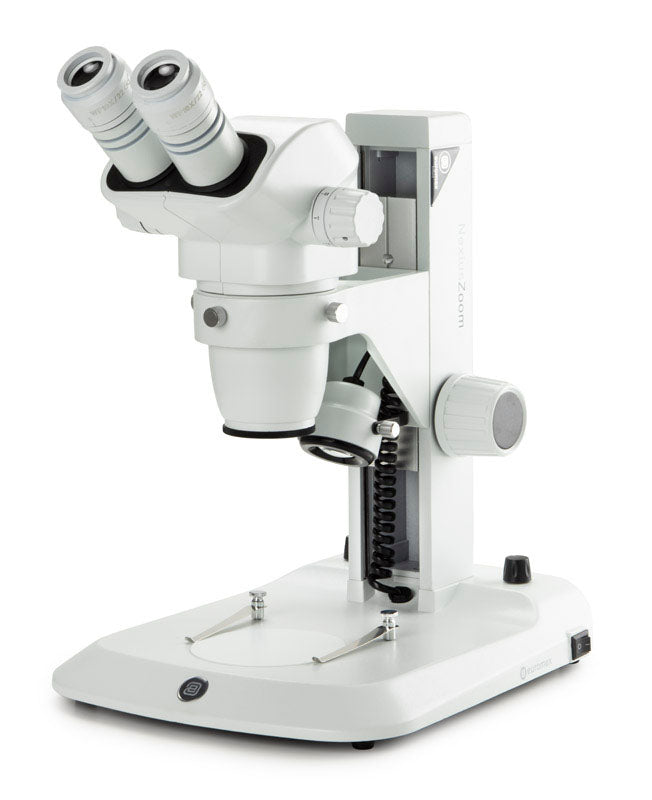

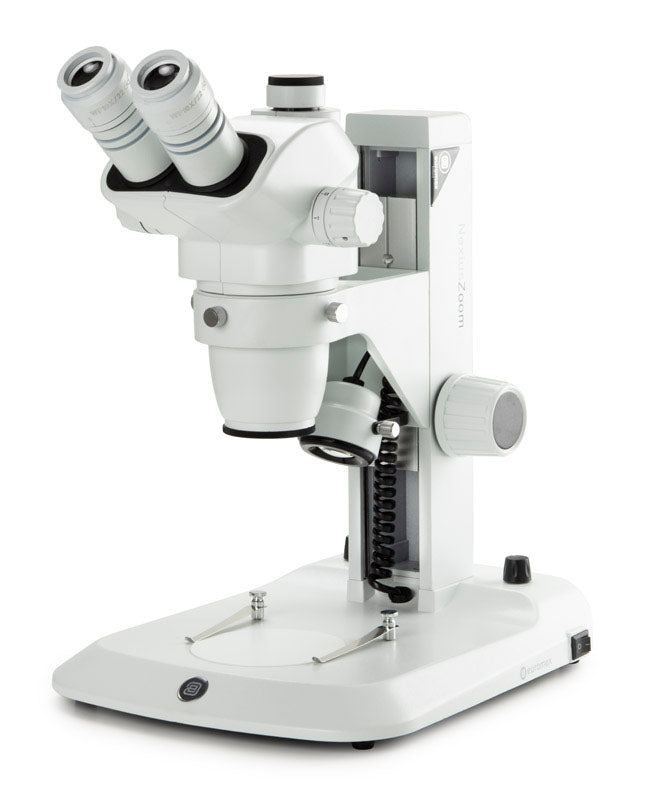

NexiusZoom Stereo Microscope ESD safe. Choice of stands- see below
Couldn't load pickup availability
NexiusZoom Stereo Microscope ESD safe. Choice of stands- see below

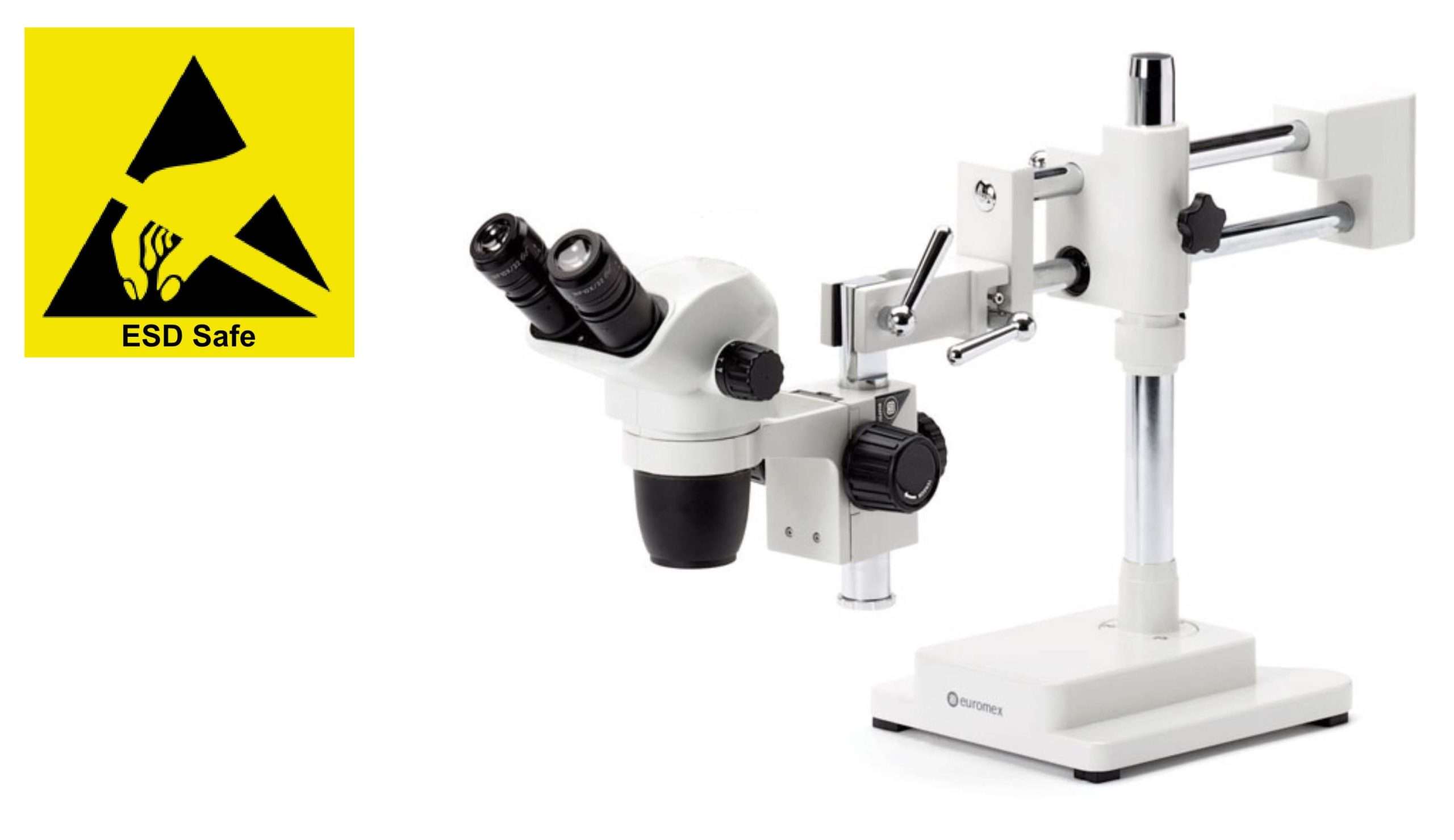

The NexiusZoom Stereo Microscope ESD safe is for inspection and assembly applications. Electrostatic discharge (ESD) is the unwanted sudden flow of electricity between two electrically charged objects. ESD can cause a range of harmful effects as well as permanent damage to solid state electronics components. The NexiusZoom ESD safe stereo microscopes are coated with a special static dissipative paint eliminating harmful electrostatic discharges making the microscopes suitable for all static-sensitive environments
Pair wide field eyepieces HWF10x/22mm without eyecups
Binocular or trinocular head with 45° inclined tubes
Diopter adjustment ± 5° on two tubes. Interpupillary distance adjustable between 54 and 75 mm
0.67x to 4.5x zoom objective, magnification from 6.7x to 45x
Field of view from 33 mm to 4.9 mm. Working distance 110 mm
For our complete range of stereo microscopes see- stereo microscopes
| Head | Binocular/ Trinocular- see options |
| Eyepieces | 10x FN22 |
| Eyepiece Tubes | 30mm |
| Magnification range | 6.7x-45x |
| Zoom Control | Pair of zoom knobs ergonomically located on both sides of the head with calibration marks for the magnification |
| Body | Fits 76mm microscope holder |
| Working Distance | 110mm |
| Coating | Static dissipative paint eliminating harmful electrostatic discharge |
| Auxillary Objectives | ||||||
| Eyepieces | 0.3x (WD 287mm) | 0.5X (WD 183mm) | 0.75x (WD 105mm) | None (WD 110mm) | 1.5x (WD 53mm) | 2X (WD 34mm) |
| 10X | 2.0-13.5x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45x | 10.0x-67.6x | 13.4x-90x |
| 15X | 3.0x-20.3x | 5.0x-33.7x | 7.5x-50.6x | 10.5x-67.5x | 15x-101.4x | 20.1x-135x |
| 20X | 4.0x-27.0x | 6.7x-45x | 10x-67.6x | 13.4x-90x | 20.0x-135.2x | 26.8x-180x |
| WD= Working Distance | ||||||
