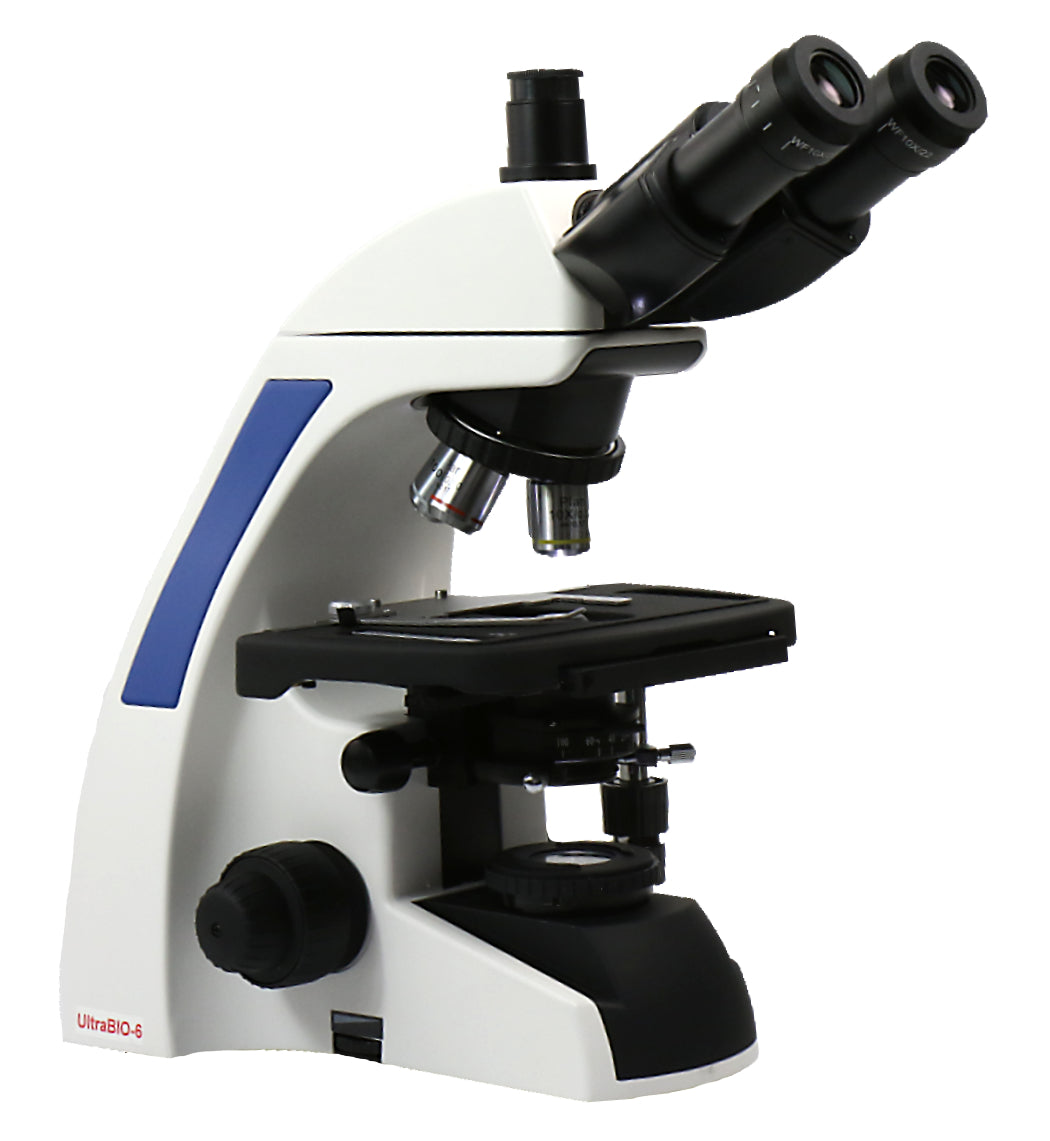

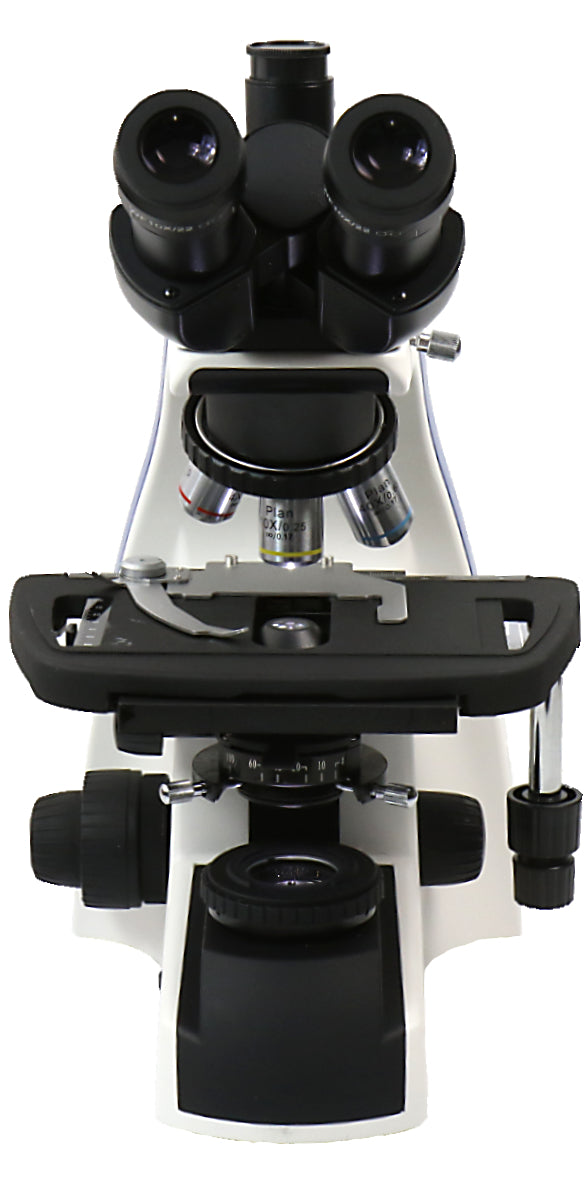

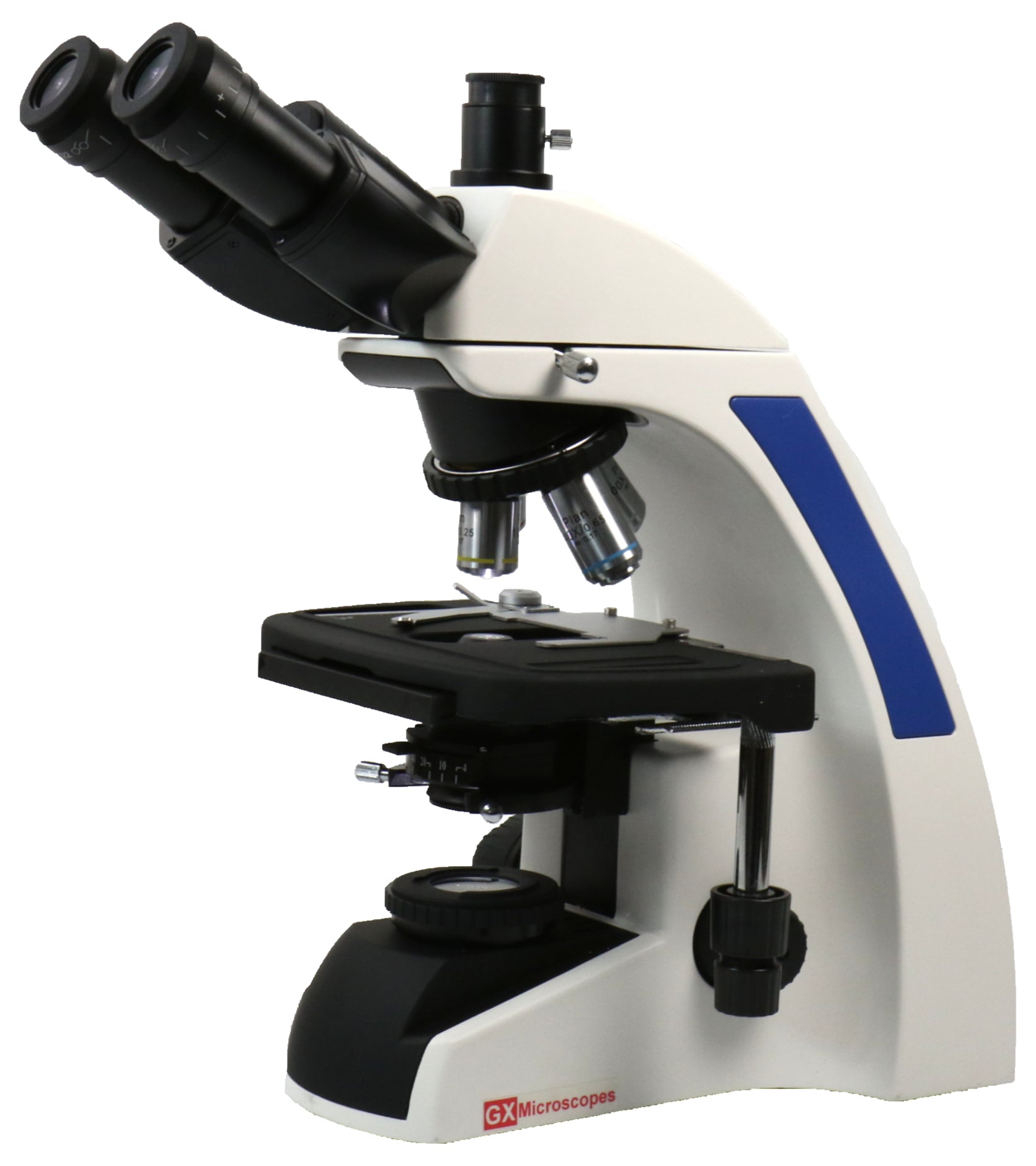

UltraBio-6 Trinocular Biological Microscope with Infinity Optics and Köhler LED Illumination

SKU: UB6-0001
Regular price £1,063.00
Regular price Sale price £1,063.00
Further Information
Regular price £1,063.00
Regular price Sale price £1,063.00

UltraBio-6 Trinocular Biological Microscope with Infinity Optics and Köhler LED Illumination


The ultraBIO-6 biological microscope is for advanced university teaching and routine use. If offers many advanced features, including Köhler illumination and infinity optics. This microscope has excellent optical performance and a rugged and robust construction.

The ultraBIO-6 biological microscope represents a new generation of affordable but advanced instruments with the latest optical design and advanced build quality incorporating all the features you would expect to find in much more expensive microscopes.

Featuring a super-widefield image (with 22mm FOV eyepieces), a safe design stage and an ergonomic and easy to carry stand with a variety of options as standard.  Backed by a comprehensive technical and service support , the ultraBIO-6 sets a new standard for optical design, performance and affordability.

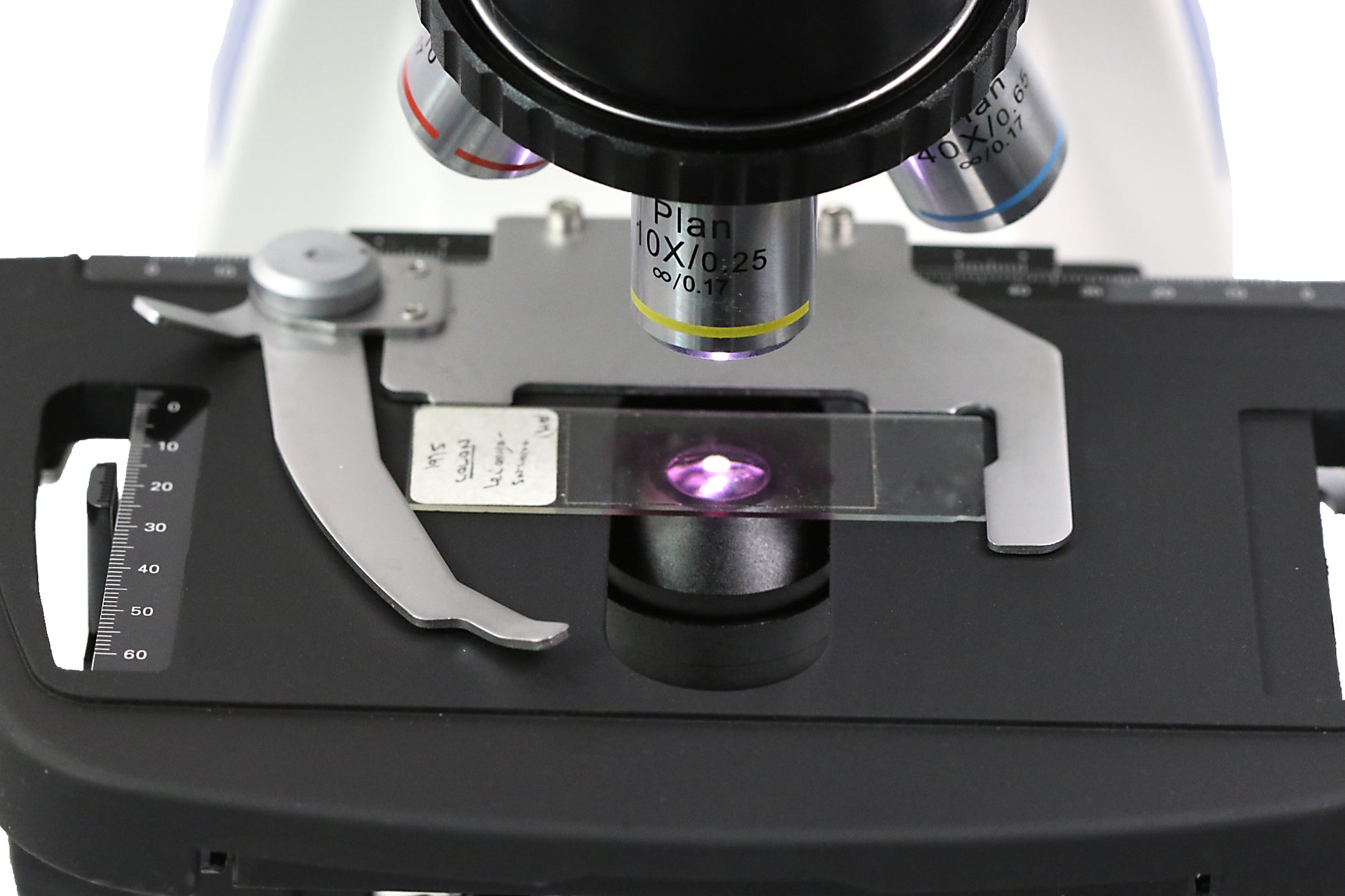

The ultraBIO-6 biological microscope offers many advanced features including infinity optics and Köhler illumination. It also has a large safety mechanical stage with x/y control. There are no external rack components and the stage has a graphite coating for durability

As standard the microscope is supplied with a quadruple nosepiece. There is an option for a quintuple nosepiece with an extra 20x or 60x objective.

Download a brochure on the ultraBIO-6 biological microscope here

For our complete range of biological microscopes see biological microscopes

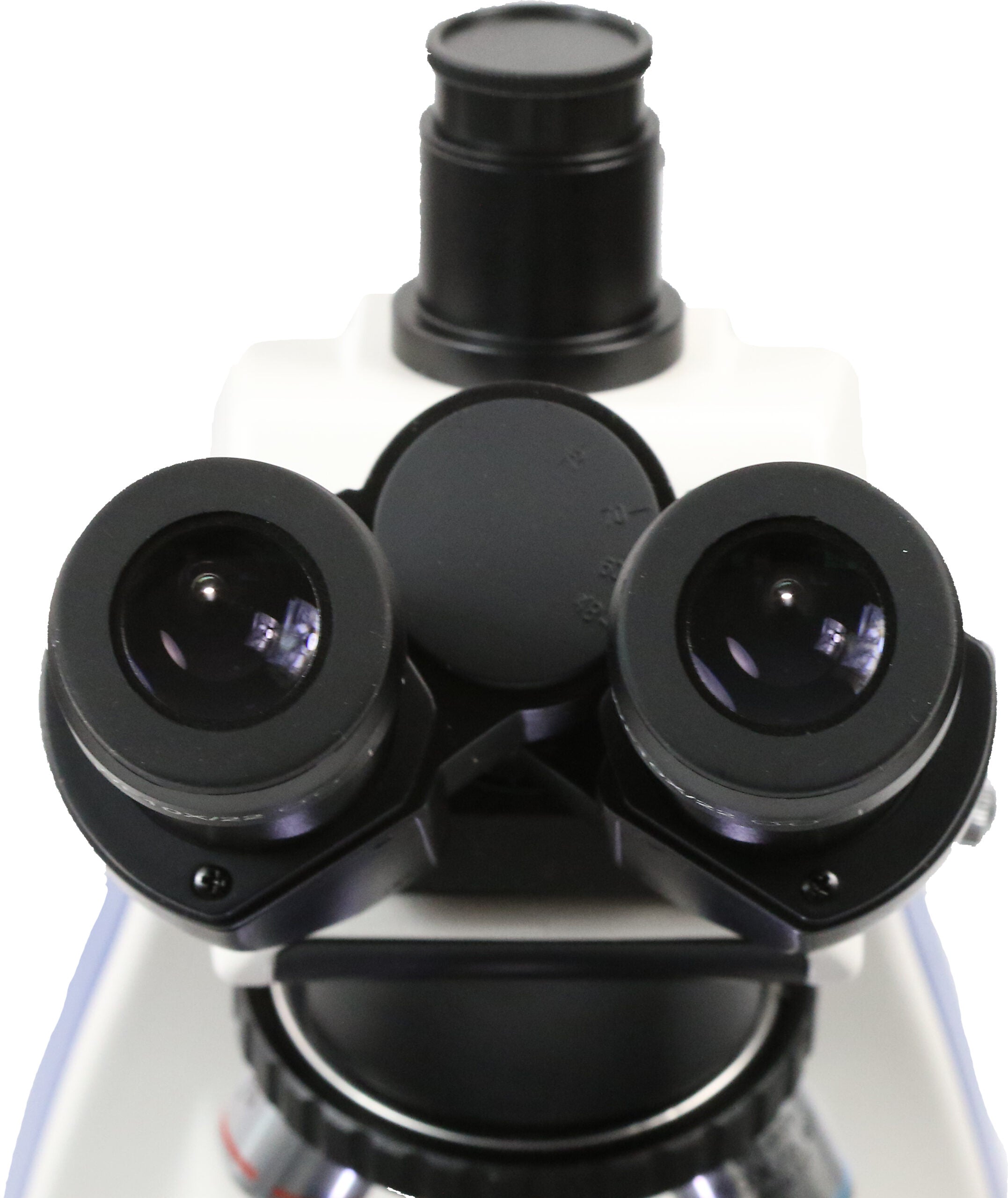

Head Trinocular head with interpupiliary adjustment and diopter adjustment
Eyepieces Pair 10X widefield field number 22mm

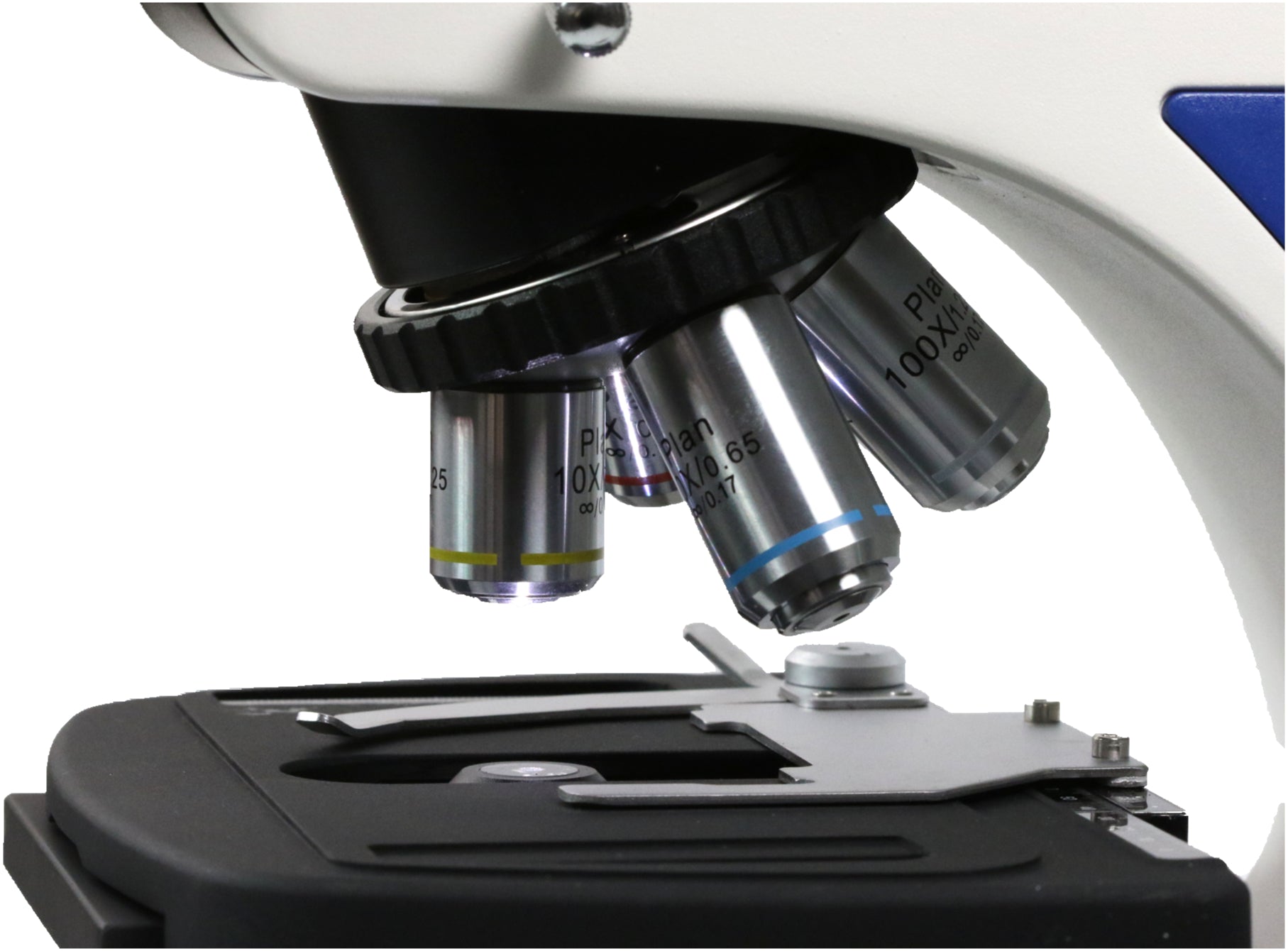

Objectives Infinity plan achromatic 4x NA 0.10, 10x NA 0.25, 40x NA 0.65, 100x NA 1.25 oil

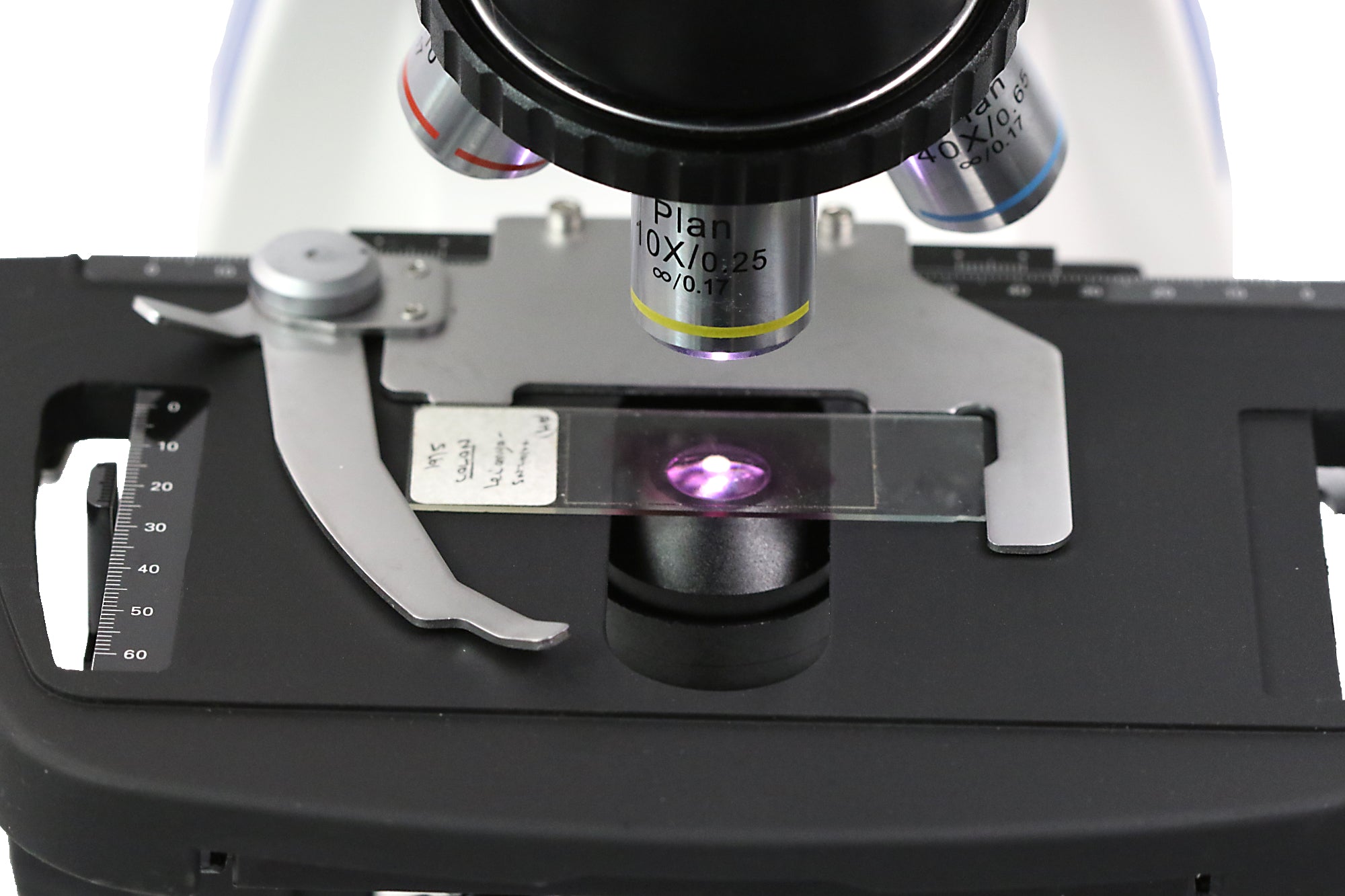

Stage Double layer safety mechanical stage 216 x 150mm
Focus Mechanism Coaxial coarse and fine focus knobs

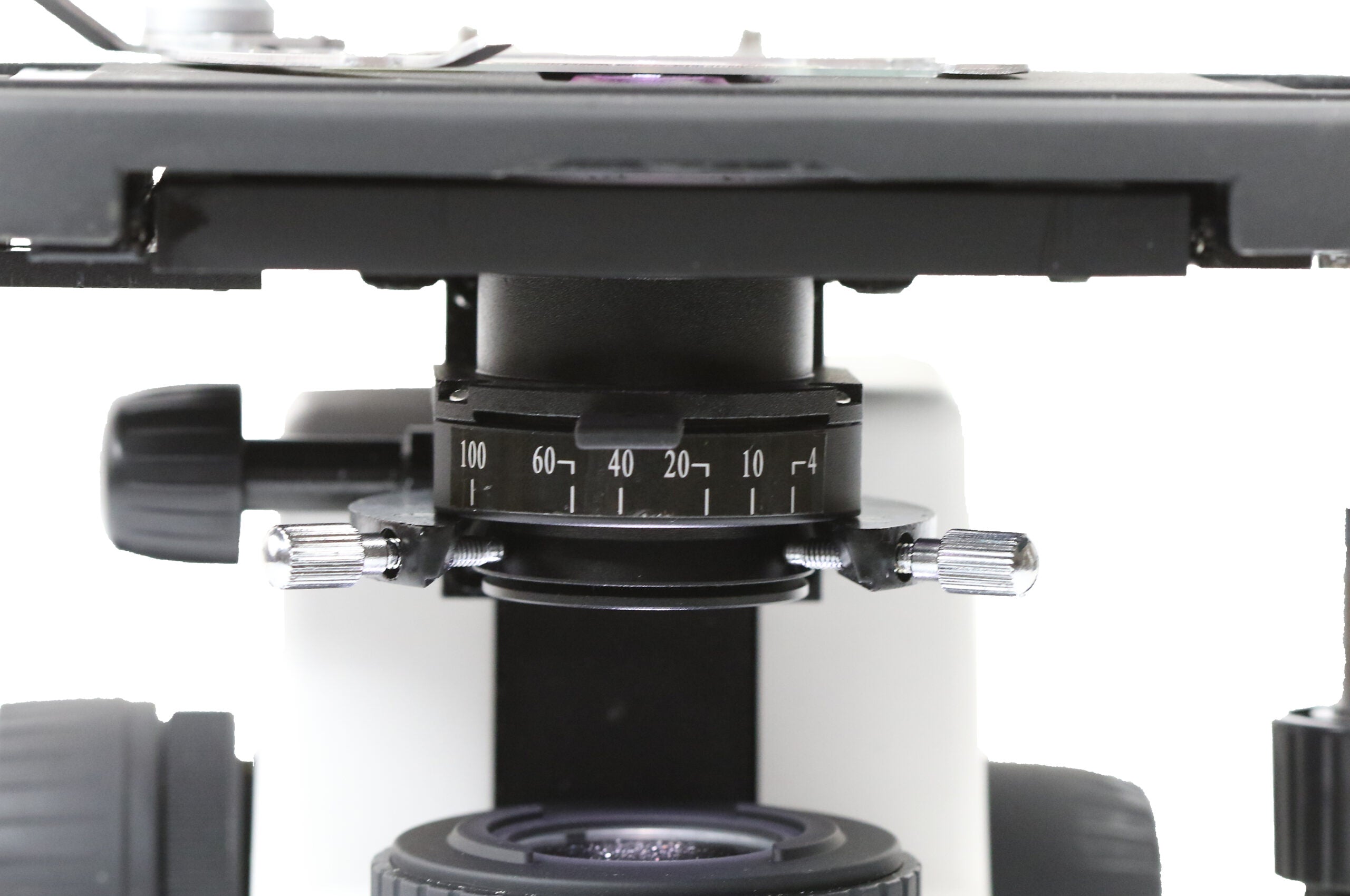

Condenser Abbe condenser NA1.25

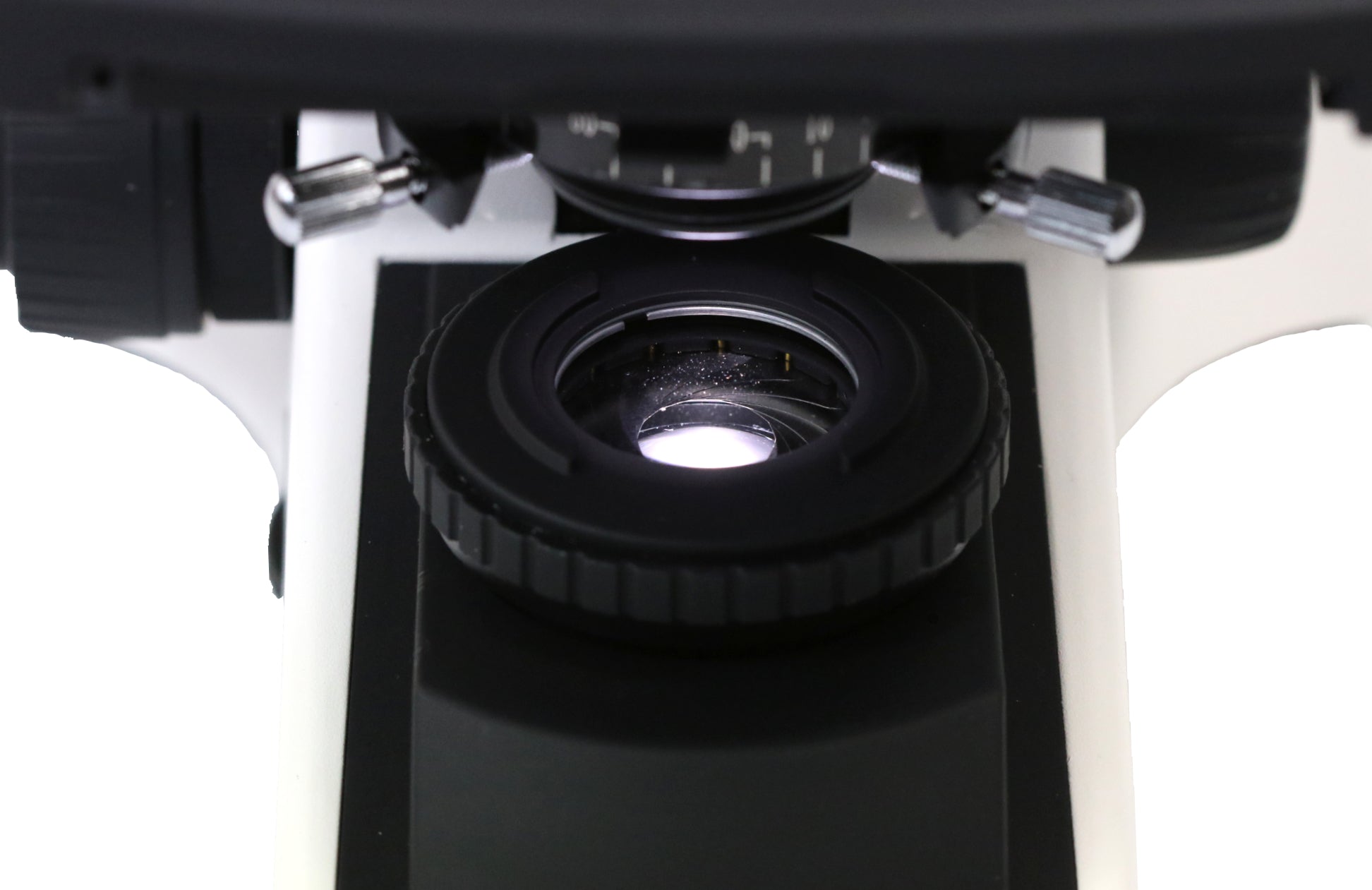

Illumination 3W LED adjustable intensity.
Options Phase contrast and darkfield
