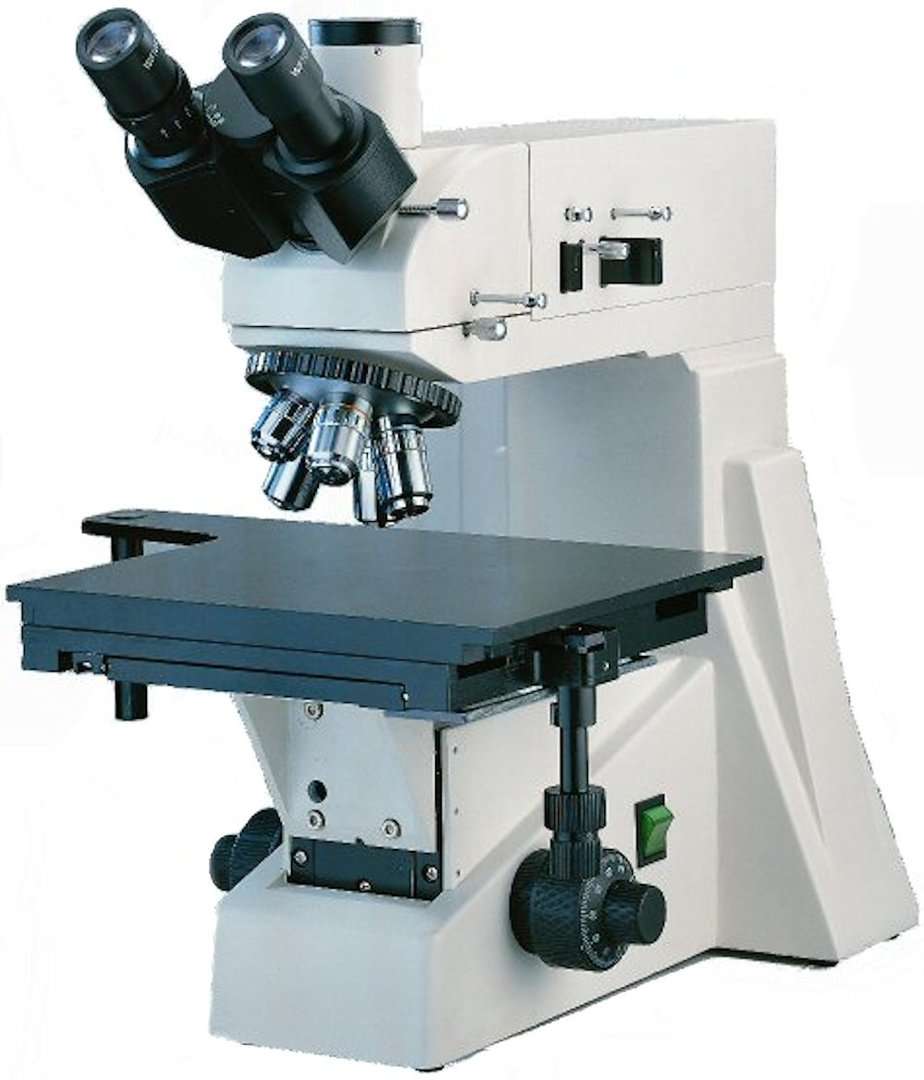

GXM-XJL101A, 50X - 800X, Materials/Semiconductor Routine & Research Microscope

SKU: 1047
£4,564.88
£4,564.88
Further Information

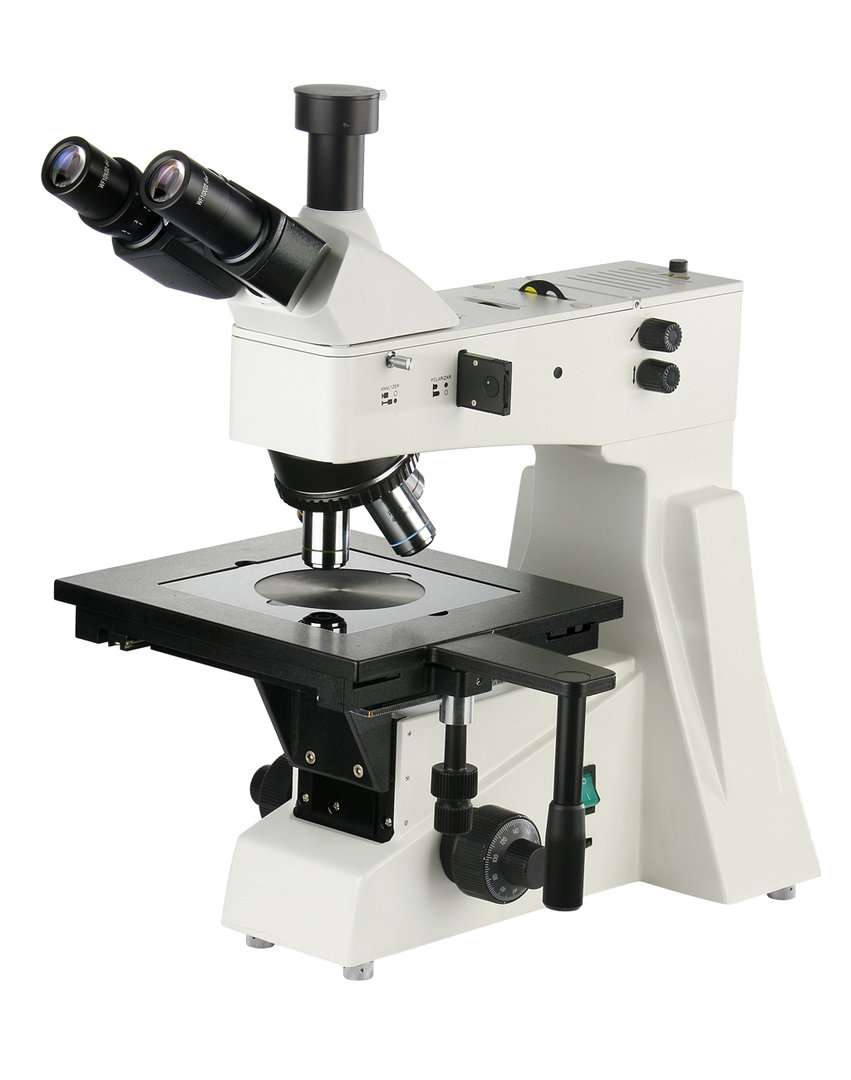

GXM-XJL302BD, 50X - 800X, Materials/Semiconductor Routine; Research Microscope
gtvisionmicroscopesGXM-XJL302BD, 50X - 800X, Materials/Semiconductor Routine; Research Microscope
£4,564.88
£4,564.88
A highly stable, substantial microscope suitable for viewing silicon wafers, assemblies and standard metallurgical reflective specimens.
It is equipped with a trinocular head ready for the attachment of a digital camera.
This microscope includes a full set of high quality plan achromatic materials objectives. Specimens can placed on the mechanical stage with controls for XY stage movement including a rapid traverse override control, perfect for scanning over large areas. The focussing tension can be adjusted and a focus lock protects the objectives from damage.
Illumination is provided from an integral LED reflected light illuminator with adjustable intensity, field and aperture diaphragms, polariser and set of Y, G, B and diffusion filters.
This microscope is built on GX Microscopes most substantial and highly robust XJL upright series industrial microscope frame which provides high stability and a durable platform suitable for the most demanding of applications. Options include a range of camera adapters, digital cameras, image analysis software, additional objectives and eyepieces.
















Head Trinocular
Eyepieces 10x
Objectives 5x, 10x, 20x, 40x, 80x Plan Achromatic Objectives
Stage Large Mechanical Glide Stage. Overall size 280mm x 270mm, moving range 204mm x 204mm
Illumination LED Illuminator with Adjustable Intensity

Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email us for current delivery times.

Request a quotation for bulk orders by emailing sales@gtvision.co.uk
