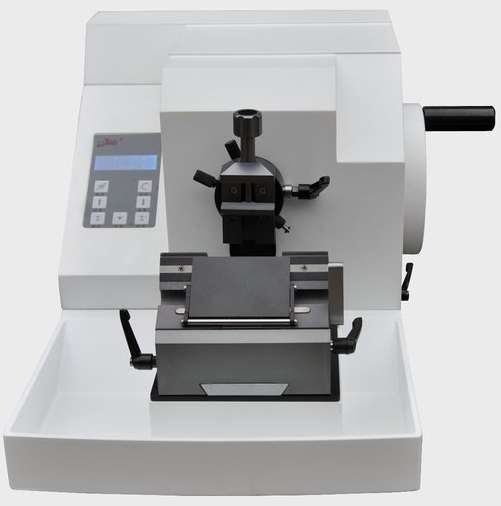

OS-335 The OS-335 Semi-Automatic Precision Microtome is ideal for routine histology
Couldn't load pickup availability
To ensure high precision, reliability and quietness we source the motor drive from Germany and other key components from Japan.
Product specifications:
• The LCD screen shows slice and trimming thickness, section counter, keyboard with controls for thickness, mode and speed
• Specimen retraction function in order to avoid damage from attrition between the sample and the back of knife, this ensures that sectioning is smoother and gives extended knife longevity.
• The hand wheel can be locked in any position to ensure the sectioning is as safe and convenient as possible
• The waste tray can be disassembled easily
• 3-Axis Orientation Attachment for Clamp
• Safety alarm system, overload protection fuction, sleep mode protection, Universal cassette clamp and standard specimen clamp
Technical Data:
•Section thickness range: 0 - 100 μm
Setting values:
Form 0-10μm in 1μm -increments
Form 10-20μm in 2μm -increments
Form 20-50μm in 5μm -increments
Form 50-100μm in 10μm increments
• Trimming section thickness range: 0 - 500um
• Horizontal specimen stroke: 28 mm
• Vertical specimen stroke: 60 mm
• Specimen retraction :12 um
• Precision error: ± 5%
• Maximum section size: 50 × 45mm
• Dimension: 520 x 450 x 300mm
• Net weight: 30kg
