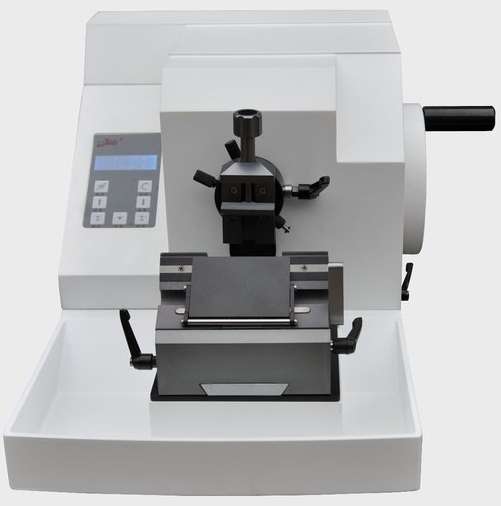

OS-335AT Fully-Automatic Precision Microtome is ideal for high volume routine histology
Couldn't load pickup availability
The Fully Automatic Microtome OS-355AT provides utmost reliability, user benefit and outstanding operator comfort.
Great basic stability and precision, make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab
Product Specification:
• Fully automatic or manual model, Its two-in-one design concept, which allows motorized and manual sectioning, provides reproducible high-quality sections.
• German made motor drive ensure slice precision, reliability and quietness.
• The LCD screen shows slice and trimming thickness, section counter, keyboard with controls for thickness, mode and speed
• The unique function of specimen retraction avoids damage due to the attrition between sample and the back of knife, so that the sectioning is smoother and the life of the knife is longer
• Blade Holder for High and low Profile Disposable Blades
• The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
• Waste tray can be disassembled easily
• Safety alarm system, overload protection fuction, sleep mode protection
• Universal cassette clamp and standard specimen clamp
• Emergency stop
Technical Data:
•Section thickness range: 0.5 - 100 μm
Setting values:
From 0.5-2μm in 0.5μm –increments
Form 2-10μm in 1μm -increments
Form 10-20μm in 2μm -increments
Form 20-50μm in 5μm -increments
Form 50-100μm in 10μm increments
• Trimming section thickness range: 0-999μm. Setting value: from 0-999μm in 1μm -increments
• Horizontal specimen stroke: 28 mm
• Vertical specimen stroke: 60mm
• Specimen retraction: 12um
• Precise orientation of specimen clamp
• Sample orientation: 8°along the X-Y-axis, rotable 360°
• Speed of fast forward and Fast backward ：1mm/s
• Precision error: ± 5%
• Maximum section size: 50 × 45mm
• Four speed of sectioning: 50mm/s , 100mm/s ,140mm/s or 180mm/s
• Voltage and power: 220v / 50Hz or 110 v /60Hz •
Net weight: 35kg
• Dimensions incl. tray (L/T/H)：500mm(L)X 320mm(W) X 500mm(H)
